DCS SR-1030 – High-Output 10-Inch 2-Way Cinema Surround Loudspeaker with HF Horn (Pair)

Product Overview

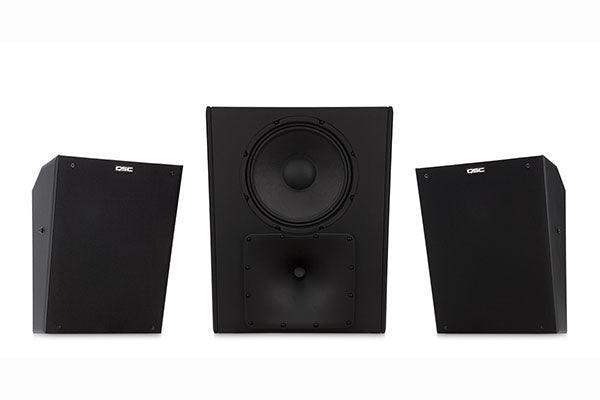

The QSC SR-1030 is a high-output 10-inch two-way cinema surround loudspeaker with a high-frequency horn, sold in pairs, developed for professional motion-picture playback in large cinemas. Part of the DCS Digital Cinema Series, it offers very high power handling, excellent sensitivity, and extended bass in a compact enclosure.

A long-throw 10-inch woofer and large 1.75-inch titanium-diaphragm compression driver with DMT and an axisymmetric waveguide deliver uniform 90° x 90° coverage at 95.5 dB sensitivity.

Product Description

The SR-1030 features a high-power, long-throw 10-inch (254 mm) woofer with a 2.5-inch (63 mm) voice coil coupled to a 1.75-inch (44 mm) titanium-diaphragm compression driver. Its 400 W continuous power rating and sophisticated crossover with protection circuitry provide dependable operation under demanding D-Cinema soundtracks.

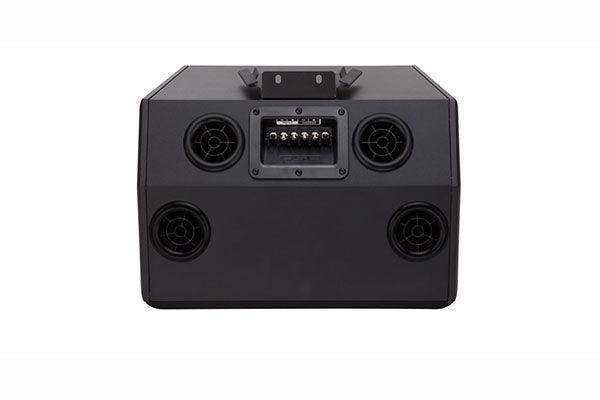

Uniform power response results from DMT (Directivity Matched Transition), which matches LF and HF coverage in the crossover region, while an axisymmetric waveguide delivers consistent performance on both vertical and horizontal axes for 90° x 90° coverage. The MDF enclosure has a 15° down-angle baffle and easily accessible terminals on top.

Pre-installed speaker-side hardware allows fast single-installer mounting, with down-angles of 15° (standard) or 23° (optional) and an available YM-400 U-bracket. The compact black enclosure ships in pairs. For a lower-output 10-inch surround, see the QSC SR-1020.

Key Features

• High-output 10-inch two-way — A long-throw 10-inch (254 mm) woofer and 1.75-inch titanium compression driver deliver very high output for large cinemas.
• Directivity Matched Transition — DMT matches LF and HF coverage at the crossover for balanced sound between woofer and horn.
• Axisymmetric horn — Provides consistent 90° x 90° performance on both vertical and horizontal axes.
• 400 W continuous power — A high power rating with protective crossover circuitry meets demanding D-Cinema reproduction; 95.5 dB sensitivity.
• 15° down-angle baffle — The MDF enclosure aims sound downward with easily accessible top-mounted terminals.
• Fast single-installer mounting — Pre-installed hardware with 15° (standard) or 23° (optional) down-angles and an available YM-400 U-bracket.

Typical Applications

• Auditorium
• Broadcast studio
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

How does the SR-1030 differ from the SR-1020?
The SR-1030 is the higher-output model, with a 2.5-inch-voice-coil woofer, a larger 1.75-inch HF compression driver, 400 W continuous power, and 95.5 dB sensitivity for large cinemas.

What coverage does it provide?
An axisymmetric horn with DMT delivers uniform 90° x 90° coverage on both axes.

Is it sold individually?
The SR-1030 ships in pairs to reduce shipping cost.

What warranty and support come with this loudspeaker?
QSC installed loudspeakers are covered under QSC's standard limited warranty; refer to QSC's published warranty terms for the current coverage period applicable to this model. Creation Networks provides pre- and post-sale support for system design and integration questions.
