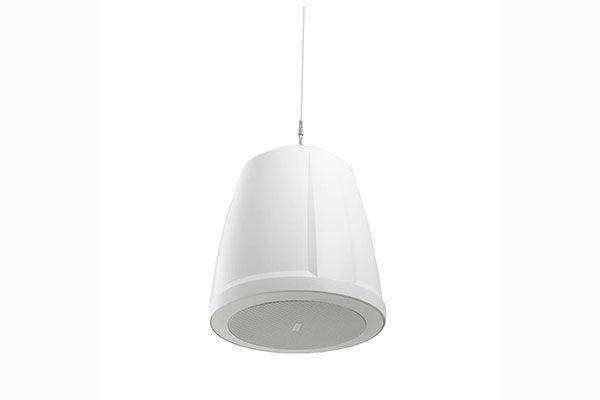

QSC AD-P6T – AcousticDesign 6.5-Inch 2-Way 135° Pendant Loudspeaker (White)

Product Overview

The QSC AD-P6T is a 6.5-inch two-way pendant loudspeaker for open-ceiling commercial spaces that need higher output and even coverage without a finished ceiling. Voiced for consistency across the AcousticDesign range, this pendant loudspeaker runs on 70/100V distributed lines or 16-ohm circuits. Its 135-degree conical coverage suits concourses, worship facilities, and large commercial meeting spaces.

Product Description

The QSC AD-P6T pendant loudspeaker pairs a 6.5-inch weather-treated paper-cone woofer with a 1-inch voice coil and a 0.75-inch aluminum dome tweeter on a DMT waveguide, producing 135-degree conical coverage with improved off-axis power for commercial installation. It handles 60W RMS with a peak maximum SPL of 112 dB and a stated frequency range of 56 Hz to 20 kHz (-10 dB). A low-loss 70/100V transformer with 16-ohm bypass and a sealed 4-pole Euroblock connector support reliable AV system integration. For background-only zones or lower output needs, compare the QSC AD-P4T pendant loudspeaker.

Key Features

• Higher-output pendant — The 6.5-inch woofer and 60W RMS rating reach a 112 dB peak SPL for larger open-ceiling rooms.
• 135-degree DMT coverage — The DMT waveguide delivers 135-degree conical coverage with improved off-axis power response.
• 70/100V or 16-ohm operation — A low-loss transformer with 16-ohm bypass and a rotary selector supports distributed and low-impedance systems.
• Sealed Euroblock input — A 4-pole Euroblock with loop-thru wiring under a sealable cover protects terminals from moisture.
• UV-treated ABS enclosure — The rugged ABS enclosure resists discoloration in long-term exposed installations.
• Intrinsic Correction ready — Voicing filters are available through Q-SYS processing or CXD amplifier platforms.

Typical Applications

• Commercial meeting space
• Multi-purpose room
• House of worship
• Auditorium
• Training room

Technical Specifications

Frequently Asked Questions

How is the AD-P6T different from the AD-P4T?
The AD-P6T uses a larger 6.5-inch woofer with 60W RMS and a 112 dB peak SPL, providing more output than the 4.5-inch AD-P4T for larger rooms.

Does it support 70V distributed audio?
Yes. It includes a 70/100V transformer with a 16-ohm bypass tap for low-impedance use.

Can it be tuned in a Q-SYS system?
Yes. Intrinsic Correction voicings are available through Q-SYS processing and CXD amplifier platforms.

What warranty applies?
Refer to QSC's AcousticDesign warranty terms or contact Creation Networks support for current coverage.
