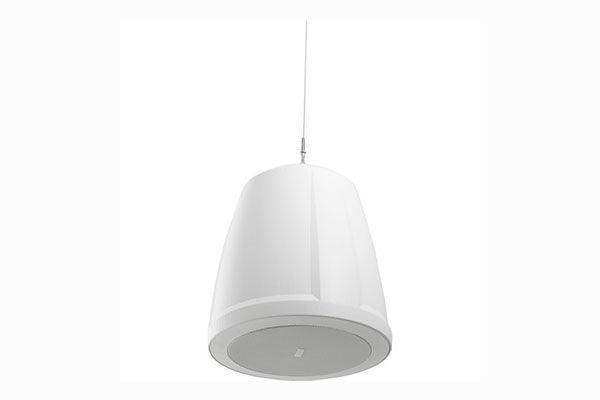

QSC AD-P4T – AcousticDesign 4.5-Inch 2-Way 30W Pendant Loudspeaker (White)
QSC AD-P4T – AcousticDesign 4.5-Inch 2-Way 30W Pendant Loudspeaker (White) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
QSC AD-P4T – AcousticDesign 4.5-Inch 2-Way 30W Pendant Loudspeaker ...
Product Overview
The QSC AD-P4T is a 4.5-inch two-way pendant loudspeaker for open-ceiling commercial spaces that need even foreground or background music coverage without a finished ceiling. Voiced for tonal consistency across the AcousticDesign range, this pendant loudspeaker operates on 70/100V distributed lines or 16-ohm low-impedance circuits. Its 150-degree conical coverage suits retail, hospitality, and commercial meeting spaces with exposed structure.
Product Description
The QSC AD-P4T pendant loudspeaker pairs a 4.5-inch weather-treated woofer with a 0.75-inch aluminum dome tweeter on a DMT waveguide, producing broad 150-degree conical coverage and improved off-axis response for commercial installation. It handles 30W RMS with a peak maximum SPL of 108 dB and a stated frequency range of 65 Hz to 20 kHz (-10 dB). A low-loss 70/100V transformer with 16-ohm bypass and a 4-pole Euroblock connector under a sealable input cover support reliable AV system integration in exposed environments. The UV-treated ABS enclosure resists discoloration, making it appropriate for long-term distributed audio. For a higher-output pendant in the same family, compare the QSC AD-P6T pendant loudspeaker.
Key Features
- DMT waveguide coverage — The Directivity Matched Transition waveguide delivers 150-degree conical coverage with smooth, uniform off-axis response.
- 70/100V or 16-ohm operation — A low-loss transformer with 16-ohm bypass supports distributed and low-impedance commercial systems.
- Weather-treated components — The weather-treated woofer and UV-treated ABS enclosure resist moisture and discoloration in exposed installations.
- Sealed Euroblock input — A 4-pole Euroblock connector under a sealable cover protects terminals from moisture during commercial deployment.
- Magnetic steel grille — The snap-fit magnetic grille carries a blemish-free removable logo for a clean finished appearance.
- Intrinsic Correction ready — Voicing filters are available through Q-SYS processing or CXD amplifier platforms for tuned system performance.
Typical Applications
- Commercial meeting space
- Multi-purpose room
- House of worship
- Training room
Technical Specifications
| Specification | Detail |
|---|---|
| Type | 2-way pendant loudspeaker |
| Woofer | 4.5-inch weather-treated |
| Tweeter | 0.75-inch aluminum dome on DMT waveguide |
| Coverage | 150-degree conical |
| Frequency range | 65 Hz – 20 kHz (-10 dB) |
| Power handling | 30W RMS |
| Peak SPL | 108 dB |
| Operation | 70/100V or 16-ohm bypass |
| Connector | 4-pole Euroblock |
| Color | White |
Frequently Asked Questions
Can the AD-P4T run on a 70V system?
Yes. It includes a multi-tap 70/100V transformer with a 16-ohm bypass tap for low-impedance use.
What coverage angle does it provide?
The AD-P4T provides 150-degree conical coverage, which helps reduce the number of pendants needed for even fill.
Is it suitable for humid or exposed areas?
The weather-treated woofer and UV-treated ABS enclosure make it appropriate for exposed commercial ceilings; consult QSC ratings for fully outdoor use.
Where can I get warranty support?
Refer to QSC's AcousticDesign warranty terms or contact Creation Networks support for current coverage.
