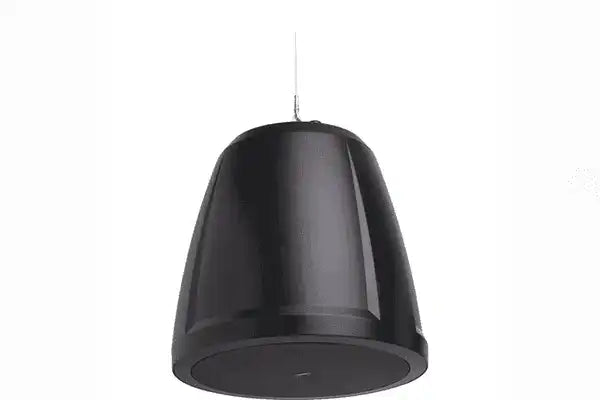

QSC AD-P6T – AcousticDesign 6.5-Inch 2-Way 135° Pendant Loudspeaker (Black)

Product Overview

The QSC AD-P6T is a 6.5-inch two-way AcousticDesign Series pendant-mount loudspeaker for open-ceiling commercial spaces, suited to a wide range of foreground and background sound reinforcement. It operates on 70V/100V distributed lines or a 16 Ω bypass, and its Directivity Matched Transition (DMT) waveguide provides smooth, uniform response across a 135° conical coverage area. As part of the AcousticDesign Series, it shares a consistent tonal character with the family’s ceiling and surface models for blended installations. Available in black.

Product Description

The AcousticDesign Series is engineered for premium installed sound where performance, consistent coverage, and aesthetics matter, maintaining a uniform tonal character across ceiling, surface, and pendant enclosures so integrators can transition smoothly within a blended design. The AD-P6T’s DMT waveguide ensures even frequency response over its 135° coverage, while low-saturation, low-loss 70/100V transformers with a 16 Ω bypass support distributed or low-impedance operation. Installation is streamlined with a snap-fit magnetic grille, two quick-link suspension cables with slip-lock fasteners, and a sealable input cover that protects the terminal block from moisture. Intrinsic Correction voicings are available through the Q-SYS Ecosystem and CXD amplifiers, and complete EASE, CF2, CAD, and BIM data is available for system design. For added low-frequency depth, pair it with the AD-P.SUB pendant subwoofer; for a smaller satellite, see the AD-P4T.

Key Features

• 6.5-inch two-way pendant loudspeaker — Foreground and background reinforcement for open-ceiling spaces.
• DMT waveguide, 135° coverage — Directivity Matched Transition for smooth, uniform response across the coverage area.
• 70V/100V with 16 Ω bypass — Low-loss transformers for distributed audio or low-impedance operation.
• AcousticDesign tonal consistency — Matches the series’ ceiling and surface models for blended installations.
• Fast installation — Snap-fit magnetic grille, two quick-link suspension cables, and slip-lock fasteners.
• Sealable input cover — Protects the terminal block from moisture.
• Intrinsic Correction ready — Optimized voicings via the Q-SYS Ecosystem and CXD amplifiers.

Typical Applications

• House of worship — Foreground and background audio in open-ceiling sanctuaries.
• Commercial meeting space — Pendant coverage in exposed-ceiling areas.
• Multi-purpose room — Even coverage where ceiling mounting is impractical.
• Auditorium — Distributed pendant zones for high-ceiling assembly spaces.

Technical Specifications

Frequently Asked Questions

Does it support 70V/100V distributed audio?
Yes. It uses low-saturation 70/100V transformers and also offers a 16 Ω bypass for low-impedance operation.

What is the DMT waveguide for?
Directivity Matched Transition keeps frequency response smooth and uniform across the loudspeaker’s 135° coverage area.

Can I add a subwoofer?
Yes. The AD-P.SUB pendant subwoofer is mix-and-match compatible with AcousticDesign satellites like the AD-P6T for added low-frequency depth.

Can it be tuned within a QSC system?
Yes. Intrinsic Correction voicings are available through the Q-SYS Ecosystem and CXD amplifiers.

What about warranty and support?
Refer to QSC warranty terms for coverage. For system design and purchasing questions, contact Creation Networks support.
