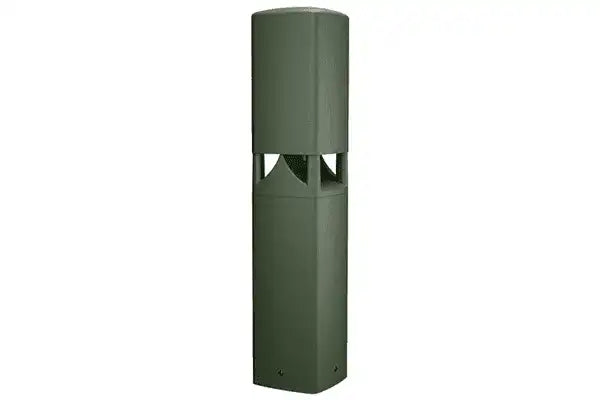

QSC AD-DWL.360 – 5.25-Inch 2-Way Direct Weather Landscape Speaker (360° Coverage)

Product Overview

The QSC AD-DWL.360 is an outdoor landscape loudspeaker designed for even, all-around commercial outdoor audio in open areas, courtyards, and pathways. Part of the AcousticDesign Series Direct Weather line, this 5.25-inch two-way IP55 landscape bollard speaker delivers 360-degree omnidirectional coverage, making it ideal where listeners surround the speaker. The elevated bollard design lifts sound above landscaping, and an onboard 70/100V transformer makes it a simple 70/100V landscape speaker to integrate into distributed commercial systems.

Product Description

The AD-DWL.360 combines a 5.25-inch weather-resistant cone woofer with two 1-inch aluminum dome tweeters to produce omnidirectional output in a ruggedized bollard enclosure of glass-filled polypropylene with stainless-steel hardware. It is IP55-rated and UL1480A compliant, engineered for sustained exposure from -10 to +60 degrees C plus high humidity and salt mist. The built-in transformer offers 70V taps of 7.5 W, 15 W, 30 W, and 60 W and 100V taps of 15 W, 30 W, and 60 W for per-location output setting across a distributed line. Permanent direct-to-concrete or in-earth base supports and tamper-resistant screws suit unattended public installations, and the RAL 6020 green finish is paintable to blend with surroundings. As an AcousticDesign Series product, it supports Intrinsic Correction voicing filters via Q-SYS or CXD DSP amplifier platforms for QSC-approved tuning and protection. Add the companion AD-DWL.SUB for low-frequency reinforcement.

Key Features

• 360-Degree Omnidirectional Coverage — Dual tweeters and a two-way design provide even all-around output for open areas where listeners surround the speaker.
• IP55 Weatherized Construction — Glass-filled polypropylene enclosure and stainless-steel hardware carry an IP55 rating and UL1480A compliance for long-term outdoor use.
• 70/100V Transformer — Selectable 70V taps (7.5/15/30/60 W) and 100V taps (15/30/60 W) integrate the speaker into distributed commercial audio lines.
• Elevated Bollard Design — The raised form lets sound clear landscaping and obstructions while reducing trip hazards compared with low-profile alternatives.
• Tamper-Resistant Installation — Direct-to-concrete or in-earth base supports and tamper-resistant screws protect against theft and abuse in public areas.
• Intrinsic Correction Voicing — QSC-approved voicing filter sets via Q-SYS or CXD DSP amplifiers speed setup and add overdrive protection.
• Paintable RAL 6020 Finish — An unobtrusive green finish blends into landscaping and can be painted to match the environment.

Typical Applications

• House of worship outdoor campuses and gathering areas
• Government spaces such as civic plazas and parks

Technical Specifications

Frequently Asked Questions

When should I choose the AD-DWL.360 over the AD-DWL.180? Choose the 360-degree model for open areas where listeners are positioned all around the speaker; choose the 180-degree model when you need to aim sound in one direction.

Is it built for permanent outdoor use? Yes. It is IP55-rated and UL1480A compliant with glass-filled polypropylene construction and stainless-steel hardware, rated for -10 to +60° C plus high humidity and salt mist.

How does it connect to a commercial audio system? The built-in transformer provides 70V and 100V taps for distributed lines and can also run at its 16 Ω nominal impedance.

Can I use QSC voicing presets? Yes. Intrinsic Correction voicing filter sets are available through Q-SYS or CXD DSP amplifier platforms for QSC-approved tuning and loudspeaker protection.

What about warranty and support? The AD-DWL.360 is covered under QSC warranty terms; contact Creation Networks support for outdoor system design and AV integration assistance.
