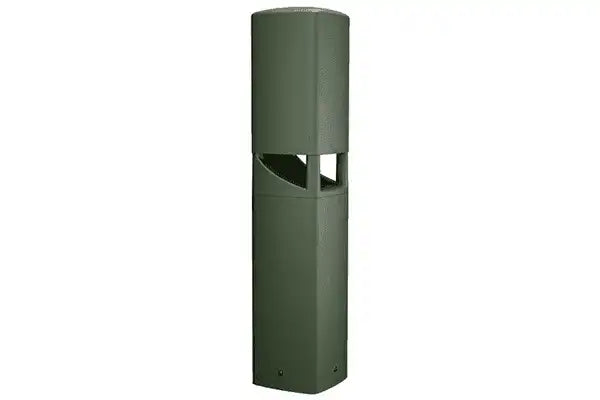

QSC AD-DWL.180 – 5.25-Inch 2-Way Direct Weather Landscape Speaker (180° Coverage)

Product Overview

The QSC AD-DWL.180 is an outdoor landscape loudspeaker built for commercial outdoor audio in courtyards, walkways, and campus grounds. Part of the AcousticDesign Series Direct Weather line, this 5.25-inch two-way IP55 landscape bollard speaker delivers 180-degree directional coverage so sound is aimed where listeners are, not wasted on adjacent areas. Its elevated bollard design lets audio travel above landscaping, while a 70/100V transformer makes it a straightforward 70/100V landscape speaker for distributed commercial systems.

Product Description

The AD-DWL.180 pairs a 5.25-inch weather-resistant cone woofer with a 1-inch aluminum dome tweeter in a ruggedized bollard enclosure of glass-filled polypropylene with stainless-steel hardware. It carries an IP55 ingress rating and is UL1480A compliant, designed for sustained exposure from -10 to +60 degrees C along with high humidity and salt mist. A built-in transformer offers 70V taps of 7.5 W, 15 W, 30 W, and 60 W and 100V taps of 15 W, 30 W, and 60 W, so installers can set output per location across a distributed line. The permanent direct-to-concrete or in-earth base support and tamper-resistant screws suit unattended public installations, and the unobtrusive RAL 6020 green finish is paintable to match surroundings. As part of the AcousticDesign Series, the AD-DWL.180 supports Intrinsic Correction voicing filters through Q-SYS or CXD DSP amplifier platforms for QSC-approved tuning and added loudspeaker protection. For low-frequency reinforcement, pair it with the companion AD-DWL.SUB.

Key Features

• 180-Degree Directional Coverage — A two-way 5.25-inch design focuses output across a 180-degree pattern (500 Hz–5 kHz), directing sound toward listeners and away from adjacent spaces.
• IP55 Weatherized Construction — Glass-filled polypropylene enclosure and stainless-steel hardware carry an IP55 rating and UL1480A compliance for long-term outdoor use.
• 70/100V Transformer — Selectable 70V taps (7.5/15/30/60 W) and 100V taps (15/30/60 W) integrate the speaker into distributed commercial audio lines.

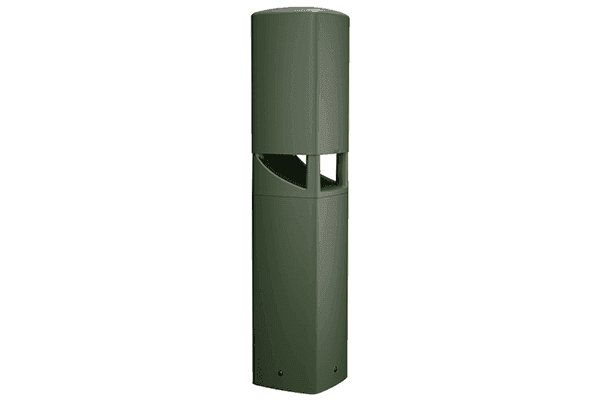

• Elevated Bollard Design — The raised form lets sound clear landscaping and obstructions while reducing trip hazards compared with low-profile alternatives.
• Tamper-Resistant Installation — Direct-to-concrete or in-earth base supports and tamper-resistant screws protect against theft and abuse in public areas.
• Intrinsic Correction Voicing — QSC-approved voicing filter sets via Q-SYS or CXD DSP amplifiers speed setup and add overdrive protection.
• Paintable RAL 6020 Finish — An unobtrusive green finish blends into landscaping and can be painted to match the environment.

Typical Applications

• House of worship outdoor campuses and gathering areas
• Government spaces such as civic plazas and parks

Technical Specifications

Frequently Asked Questions

Is the AD-DWL.180 suitable for permanent outdoor installation? Yes. It is IP55-rated and UL1480A compliant with glass-filled polypropylene construction and stainless-steel hardware, rated for -10 to +60° C plus high humidity and salt mist.

How does it connect to a commercial audio system? The built-in transformer provides 70V and 100V taps, so the speaker drops directly onto a distributed 70/100V line; it can also run at its 16 Ω nominal impedance.

What is the difference between the AD-DWL.180 and AD-DWL.360? The AD-DWL.180 provides 180-degree directional coverage for aimed applications, while the AD-DWL.360 offers omnidirectional 360-degree coverage for open areas.

Can I use QSC voicing presets? Yes. Intrinsic Correction voicing filter sets are available through Q-SYS or CXD DSP amplifier platforms for QSC-approved tuning and loudspeaker protection.

What about warranty and support? The AD-DWL.180 is covered under QSC warranty terms; contact Creation Networks support for outdoor system design and AV integration assistance.
