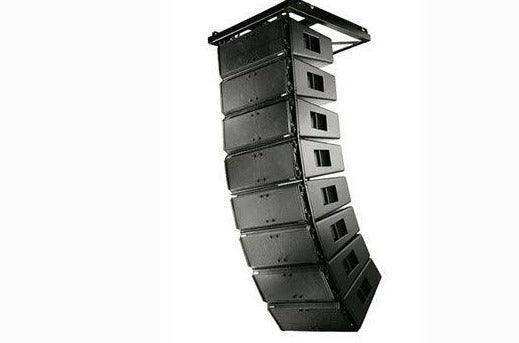

QSC 2x10" 2-Way Passive Line Array Mid High Speaker (Black) - WL2102-w-BK

QSC SKU: WL2102-w-BK
No reviews

Description

QSC's WL2102-w is a full range line array loudspeaker system designed for use in a wide variety of venues, ranging from ballrooms, theaters and nightclubs to concert halls, houses of worship and arenas. This WideLine™ series speaker offers an open, natural sound quality and exceptionally wide 140° horizontal coverage pattern - the widest of any line array system currently available.

A three transducer system that can be operated in either biamplified or triamplified modes, the WL2102-w features two 10" low-frequency transducers and one 3" driver. Both 10" diameter LF transducers are used to cover the lowest frequency range. One driver covers only low frequencies while the range of the other extends through the mid frequencies to the mid/high crossover point. The use of a single midrange transducer allows the horizontal coverage pattern to remain as wide as possible and assures smooth response both on and off axis at the transition to the diffraction slot loaded high frequency section. Biamplification uses passive elements to affect the required frequency response shading of the low-frequency drivers and offers reduced amplifier channel counts and simplified wiring. Triamplification allows the required low-frequency shading to be controlled with greater precision via active electronics and is recommended where maximum output and highest sound quality are required.

  • Patented multiple aperture diffraction slot waveguide provides exceptionally wide 140° horizontal coverage and a near ideal vertical line source
  • Exceptionally high output capability in a very compact form factor
  • May be operated as a bi-amplified or tri-amplified system. DSP settings are available on Q-SYS, SC-28, PLD amplifiers and CXD amplifiers
  • Dual 10" long-excursion, high-power, low-frequency transducers
  • Single 3" diaphragm neodymium compression driver
  • Birch ply enclosure with black finish
  • Fully captive hardware design incorporates all components necessary for box to box rigging

Specifications

  • Configuration: Biamp or Triamp mode
  • Transducers:
    • HF: 1.4" exit, 3" titanium diaphragm, neodymium magnet assembly
    • LF: 2 x 400W, 16 Ω 10" woofer, 3" voice coil, ceramic magnet assembly
  • Frequency Response (±3 dB): 55 Hz to 18 kHz (with recommended DSP processing)
  • Frequency Response (-10 dB): 48 Hz to 20 kHz (with recommended DSP processing)
  • Nominal Impedance:
    • HF: 16 Ω
    • LF biamp mode: 8 Ω
    • LF triamp mode: 16 Ω (x 2)
  • Continuous Power Capacity:
    • HF: 80W (2 hours, AES1984-2 method, 1 to 10 kHz)
    • LF biamp mode: 600W (2 hours, AES1984-2 method, 80 to 800 Hz)
    • LF triamp mode: 400W (×2) (2 hours, AES1984-2 method, 80 to 800 Hz)
  • Max Recommended Power:
    • HF: 300W @ 16 Ω
    • LF bi-amp mode: 1400W @ 8 Ω
    • LF tri-amp mode: 700W @ 16 Ω (x 2)
  • Sensitivity (1W at 1 m):
    • HF: 107.5 dB (single cabinet measured in free space)
    • LF: 98 dB (single cabinet measured in free space. LF drivers connected in parallel)
  • Maximum Output (SPL at 1 m):
    • Continuous: HF: 127 dB / LF: 127 dB
    • Peak: HF: 133 dB / LF: 133 dB
  • Maximum Output (dB SPL at 1 m) Continuous / Peak:
    • HF: 126 dB / 132 dB
    • LF: 122 dB / 128 dB
  • Nominal Coverage:
    • Horizontal: 140°
    • Vertical: Dependent on number of elements used
  • Cabinet Type: Ported, trapezoidal
  • Material: Baltic birch plywood
  • Grille: Perforated, formed powder coated steel
  • Connectors: (2) Neutrik speakON® NL8 in parallel
  • Attachment Points: Integral, adjustable rigging system, vertical splay adjustable
  • Weight:
    • Net: 83 lbs. (37.7 kg)
    • Shipping: 91 lbs. (41.4 kg)
  • Dimensions (H x W x D): 10.75" x 27.5" x 20.25" (27.3 x 69.85 x 51.43 cm)
