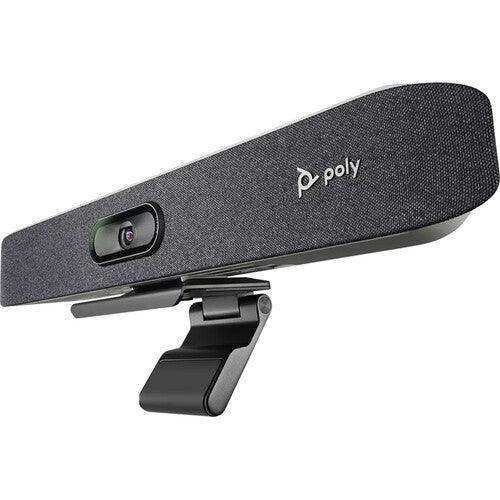

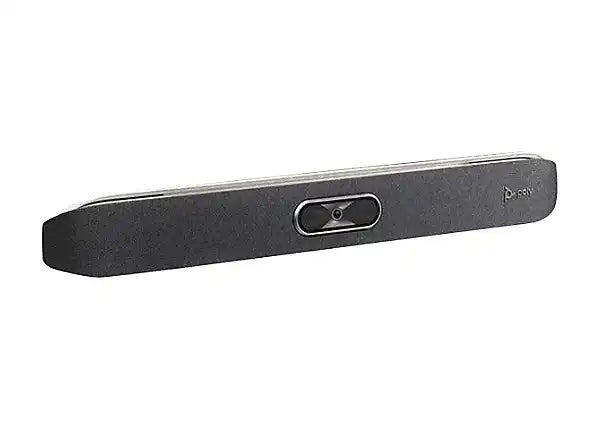

Poly Studio X30 – All-In-One 4K Video Bar for Small Rooms

Product Overview

The Poly Studio X30 video bar is an all-in-one 4K video bar for huddle and small conference rooms of roughly 15 ft. by 10 ft. Camera, four-microphone array, speaker, and codec are integrated into a single 441.8 mm bar, so a small room needs one display, one network drop, and one power feed instead of a component stack. It is certified for Microsoft Teams and Zoom and certified to work with Google Meet, running cloud video apps on the device so a room PC is not part of the bill of materials. This listing is the bar-only SKU (83Z45AA#ABA) for integrators who already own a touch controller or plan to drive the room from the display.

Product Description

HP Poly built the Studio X30 for the huddle room and small conference room tier, where a modular codec, PTZ camera, and table microphone stack is far more infrastructure than the space justifies. The camera covers a 110-degree horizontal field of view (121 degrees diagonal) with 5x digital zoom and runs at 5–60 fps, capturing up to 4K resolution at 15 fps in call. Poly DirectorAI smart camera technology handles people framing, group framing, and speaker framing, and the DirectorAI perimeter setting lets an integrator define a tracking boundary so glass walls and corridor traffic outside the room do not pull the shot off the meeting.

Audio comes from four MEMS microphones paired with an acoustic-chamber speaker rated at 80 dB sensitivity (1 W/1 m). Poly NoiseBlockAI and Acoustic Fence suppress keyboard clatter and voices from outside the room rather than gating the channel, which matters in open-plan offices where huddle rooms sit against a corridor. Connectivity is sized for a single-display small room: one HDMI 1.4 input, one HDMI 1.4 output, one USB Type-C and one USB Type-A at 5 Gbps, and a 10/100/1G RJ-45 port with IPv4, IPv6, and Auto-MDIX. Standards-based H.323 and SIP calling up to 6 Mbps is available in Poly App video mode, with AES 128-bit and 256-bit encryption and H.235.6 support for security review.

The unit ships with a monitor clamp, HDMI cable, Ethernet cable, privacy cover, and AC power adapter, so a display-top install is a single mounting pass. For rooms that need scheduled one-touch join, add a Poly TC8 touch controller on the table. Wall and VESA installs use the Poly Studio X30/X32/V12 VESA and Wall Mount, and credenza or table placement is handled with the Poly Studio X30/X32/V12 Table Stand. At 730 g the bar is light enough that most small-room retrofits reuse the existing display bracket.

Key Features

• All-In-One 4K Video Bar — Integrates camera, microphones, speaker, and codec so a small room deploys with one device instead of a rack of components.
• 110-Degree Horizontal Field of View — Covers a full huddle table from a display-mounted position without an external wide-angle camera.
• Poly DirectorAI Smart Framing — People framing, group framing, and speaker framing follow the conversation without an operator in the room.
• DirectorAI Perimeter — Sets a tracking boundary so movement outside the glass wall or in the corridor does not steal the camera.
• Four MEMS Microphones — Capture voices clearly across a small conference table without an expansion microphone on the tabletop.
• NoiseBlockAI and Acoustic Fence — Filter keyboard noise and outside conversations so the far end hears the meeting instead of the office.
• Built-In Cloud Video Apps — Run Microsoft Teams, Zoom, or the Poly Video App natively on the bar, removing the room PC from the deployment.
• Standards-Based SIP and H.323 — Register the bar to an existing on-premises call platform at up to 6 Mbps in Poly App video mode.
• Single-Cable Network Deployment — One 10/100/1G RJ-45 with IPv4, IPv6, and Auto-MDIX support keeps small-room cabling to a single drop.
• Flexible Mounting — Ships with a monitor clamp and supports VESA, wall, and table-stand mounting for retrofit into existing rooms.

Typical Applications

• Huddle room
• Conference room
• Commercial meeting space
• Multi-purpose room
• Training room
• Government space

Technical Specifications

Frequently Asked Questions

What room size is the Poly Studio X30 designed for?
HP Poly specifies the X30 for huddle or small rooms of approximately 15 ft. by 10 ft. For medium rooms of roughly 20 ft. by 15 ft., specify the Studio X50 or the newer Studio X52 instead.

Does this SKU include a touch controller?
No. Part number 83Z45AA#ABA is the video bar only. Add a Poly TC8 touch controller for tabletop one-touch join, or order one of the X30 with TC8 kit SKUs if the room needs both components on a single line item.

Which video platforms does the X30 run natively?
The X30 is certified for Microsoft Teams and Zoom and is certified to work with Google Meet, with cloud video apps running on the device itself. Standards-based H.323 and SIP calling up to 6 Mbps is also available in Poly App video mode for on-premises call platforms.

How is the X30 mounted in a small conference room?
The bar ships with a monitor clamp for display-top mounting. Wall and VESA installations use the Poly Studio X30/X32/V12 VESA and Wall Mount, and table or credenza placement uses the matching table stand. At 730 g the bar is light enough for most existing display brackets.

Can the X30 drive two displays?
No. The X30 supports one display through a single HDMI 1.4 output. Rooms that require a dual-display content-plus-people layout should be specified with a Studio X50, X52, or X70 class system.

How does the X30 integrate with an existing network and AV system?
A single 10/100/1G RJ-45 port carries the room, with IPv4, IPv6, and Auto-MDIX support and AES 128-bit and 256-bit encryption plus H.235.6 for security review. USB Type-C and Type-A connections let the bar act as a USB peripheral for a connected room PC where a customer standard requires one.

What warranty and support coverage apply?
The X30 carries the Poly standard one-year limited warranty. Poly+ service agreements are sold separately for extended coverage, advance hardware replacement, and technical support; contact Creation Networks for the correct tier for your deployment.
