Poly Studio USB Display Mounting Kit – VESA Display Bracket

Product Overview

The Poly Studio USB display mounting kit (875R9AA) is the OEM bracket set for attaching a Poly Studio USB video bar directly to a room display instead of resting it on a credenza or shelf. The kit clamps to the display chassis using the display's own VESA hole pattern, supporting patterns from 200 x 200 mm through 600 x 600 mm, and positions the bar above or below the screen. Because it borrows the VESA interface rather than occupying it, the display can still hang on a commercial wall mount or roll on an AV cart. For an integrator standardizing huddle rooms, this is the difference between a bar that stays aligned to the room and one that gets nudged out of frame every week.

Product Description

A USB video bar sitting loose on a table or credenza is the most common cause of avoidable support tickets in small rooms: the camera drifts off axis, the microphones end up behind a laptop lid, and the USB cable gets pulled. Fixing the Studio USB to the display solves all three at once. The bracket set locates the bar on the display's centerline so the camera's field of view is aligned to the seating area by construction, and it takes the strain off the USB run because the cable no longer moves with the furniture.

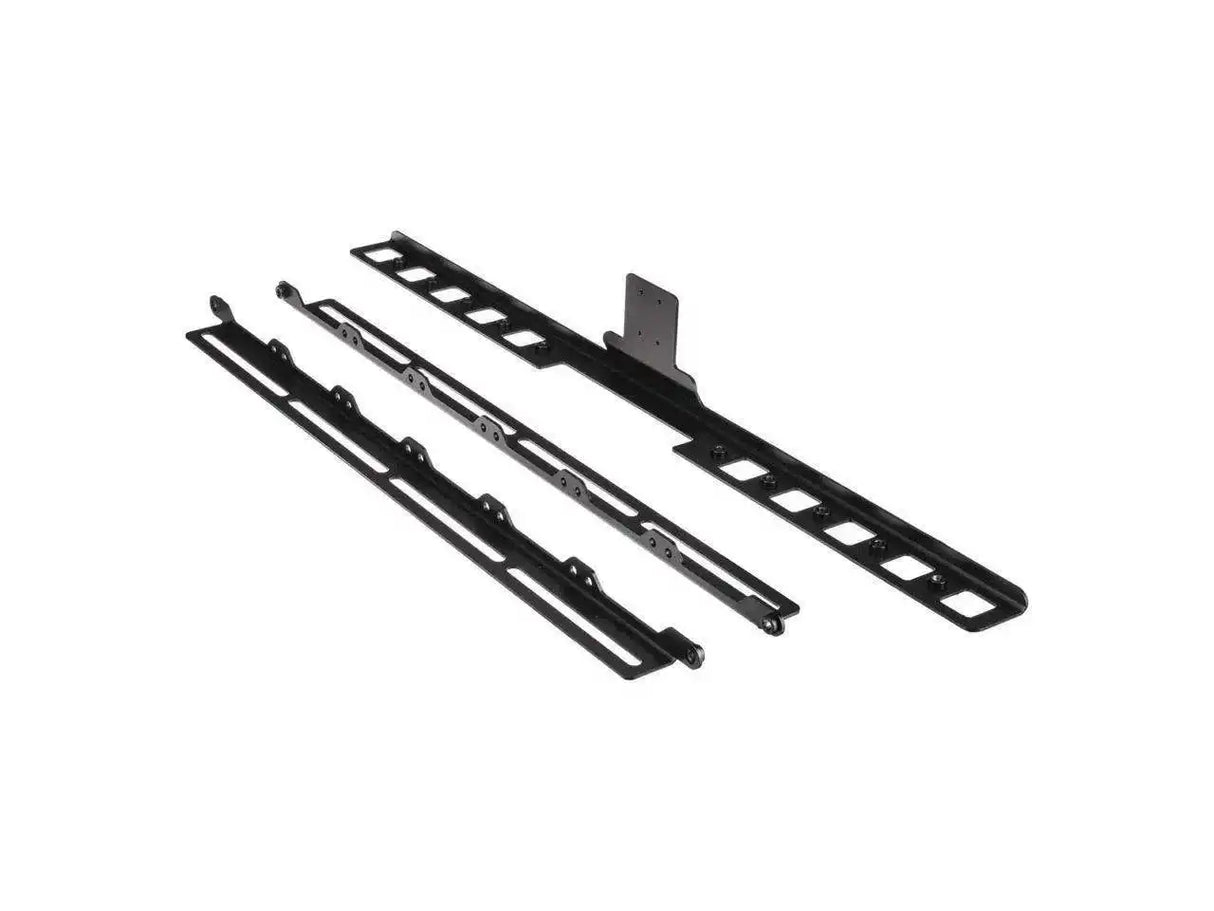

The kit ships with a full complement of brackets rather than a single one-size part, which is what makes it work across the range of commercial panels found in a real estate portfolio. Two vertical display mount brackets, two corner display mount brackets, one horizontal display mount bracket, and one bottom display mount bracket cover both above-display and below-display orientations. Fasteners are included for the common VESA thread sizes — M3, M6, and M8 screws in multiple lengths, with matching lock washers, external tooth lock washers, and flat washers — plus 4 mm and 5 mm hex keys and tie wraps for cable dressing. Installers pick the screw length that matches the depth of the display's VESA bosses, which is why several lengths ship in the box.

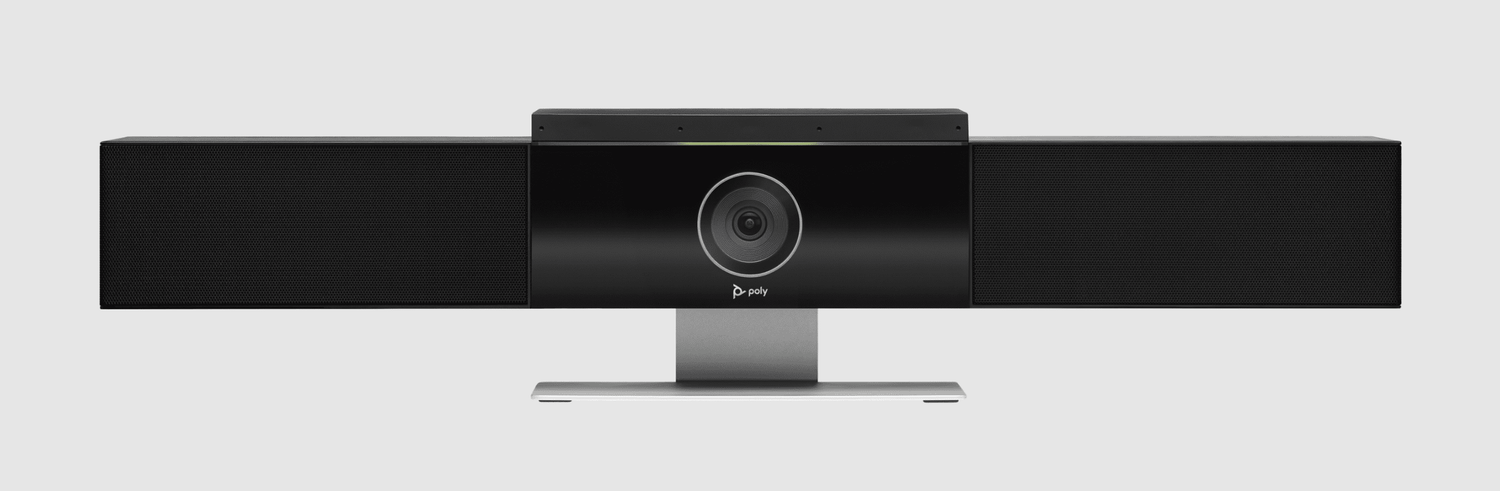

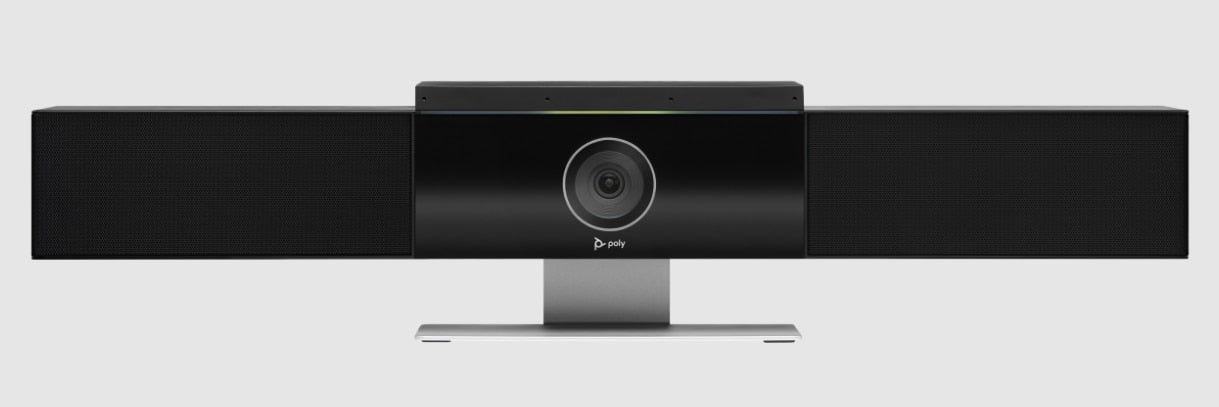

This is the supported mounting path for the Poly Studio USB video bar, and it applies equally to the TAA-compliant Studio USB soundbar used in government spaces and federal procurement. Where the room is larger than the Studio USB's integrated array comfortably covers, add a Poly Studio table microphone at the far end of the table. Specify one mounting kit per display-mounted bar; the kit is hardware only and requires no configuration, firmware, or power.

Key Features

• VESA 200 to 600 mm Support — The bracket set spans display hole patterns from 200 x 200 mm through 600 x 600 mm, covering the commercial panel sizes typical of huddle and small conference rooms.
• Above or Below Display Mounting — Six included brackets support both orientations, so the bar can clear a soundbar, a low ceiling, or an existing wall plate as the room dictates.
• Complete Fastener Set — M3, M6, and M8 screws in multiple lengths with lock, external tooth, and flat washers let the installer match the VESA boss depth of the specific display.
• Preserves the Wall Mount — The kit shares the display's VESA interface, so the panel can still be hung on a commercial wall mount or an AV cart.
• Camera Alignment by Construction — Fixing the bar to the display centerline keeps the field of view pointed at the seating area instead of drifting with the furniture.
• Cable Strain Relief — Included tie wraps and a fixed bar position take movement out of the USB run, which is the usual cause of intermittent camera dropouts.
• Hex Keys Included — 4 mm and 5 mm L-keys ship in the box so the install needs no specialist tooling beyond a standard AV kit.
