- Headset or handset—your choice with large 7” color touchscreen
- Hear every nuance with award-winning Poly audio technology
- Powerful chipsets support next-generation features like NoiseBlock AI
- Wi-Fi included; Bluetooth and two (2) USB ports (1 x Type A, 1 x Type C) to connect a headset and more
DIAL UP YOUR PRODUCTIVITY

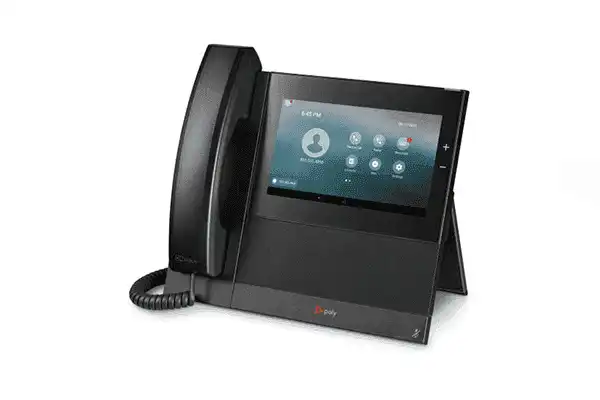

CCX 600 is the executive- or manager-class phone of choice in the next-generation CCX phone family of phones. With a 7-inch color touchscreen, Bluetooth, integrated Wi-Fi, and Android 9-powered performance, this phone takes audio quality even further. And you can choose a phone with a handset or install it with your favorite headset with the new and modern “no handset” model.
BENEFITS
- Conversations stay on track. Hear every nuance with industry-leading sound quality featuring Poly HD Voice.
- Eliminate distracting background noise at the source with exclusive award-winning Poly Acoustic Fence technology.
- Contacts and meetings are easily accessible, one tap away on a color touchscreen
- Easy for IT to manage with robust provisioning and management of telephony deployment and support.
- Multiple headset options are available to suit any working style—in addition to the traditional handset.
A larger screen can make all the difference. The Poly CCX 600 Business Media Phone boasts a 7” screen—perfect for managers and executives, and anybody who needs more room to do their thing. Count on legendary audio quality, Poly HD Voice, and Poly Acoustic Clarity. Poly Acoustic Fence wipes out distracting background noise. So noisy places like open offices don’t get in the way of meaningful and productive discussions. Conversations stay on track thanks to full duplex speakerphone operation with world-class echo cancellation.
The interface is simple and intuitive to use with one-touch-access to your contacts and meetings. And the phone is fast and responsive, designed with the latest powerful chipsets. Robust provisioning and management enable efficient telephony deployment and support. And it’s easy to install anywhere—Wi-Fi is included. Now let’s talk options. Choose a handset or no handset. Poly CCX 600. Productivity starts here.
- Model choices supporting Open SIP or native Microsoft Teams
- Color touchscreen operation with 7” multi-touch LCD display
- Hear every nuance with Poly HD Voice and Poly Acoustic Clarity
- Eliminate distracting background noise with Poly Acoustic Fence
- Full duplex speakerphone operation with world-class echo cancellation
- Powerful chipsets to support next-generation features
- Easy to install anywhere with integrated Wi-Fi
- Headset options to suit any style (Bluetooth®, USB, RJ9)
- Make video calls with optional EagleEye Mini USB camera (Open SIP CCX 600 only)
SPECIFICATIONS
USER INTERFACE FEATURES
• Gesture-based, multitouch-capable touchscreen
• 7” color LCD (1024 x 600 pixel)
• 16:9 aspect ratio Screensaver
• On-screen virtual keyboard
• Voicemail support
• Adjustable base height
• One USB type-A port (2.0 compliant) for media and storage applications
• One USB Type-C port (2.0 compliant) for media and storage applications
• Integrated Bluetooth 4.2
• Integrated Wi-Fi
• Unicode UTF-8 character support
• Adjustable font size selection (regular, medium, large)
• Normal and dark mode
• Multilingual user interface including Chinese, Danish, Dutch, English (Canada/ US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, and Swedish
AUDIO FEATURES
• Poly HD Voice technology delivers lifelike voice quality for each audio path: handset, hands-free speakerphone, and optional headset
• Poly Acoustic Clarity technology providing full duplex conversations, acoustic echo cancellation, and background noise suppression
• TIA-920 wideband audio, type 1 compliant (IEEE 1329 full duplex)
• Frequency response—100 Hz–20 kHz for handset, optional headset, and handsfree speakerphone modes
• Codecs: G.711 (A-law and μ-law), G.729AB, G.722 (HD Voice), G.722.1 iLBC
• Individual volume settings with visual feedback for each audio path
• Voice activity detection
• Comfort noise generation
• DTMF tone generation (RFC 2833 and in-band)
• Low-delay audio packet transmission • Adaptive jitter buffers
• Packet loss concealment
• OPUS support
HEADSET AND HANDSET COMPATIBILITY
• Dedicated RJ-9 headset port
• Hearing aid compatibility to ITU-T P.370 and TIA 504A standards
• Compliant with ADA Section 508 Subpart B 1194.23 (all)
• Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids
• Compatible with commercially-available TTY adapter equipment
• USB headset support
• Bluetooth headset support
NETWORK AND PROVISIONING
• SIP protocol support
• SDP
• IETF SIP (RFC 3261 and companion RFCs)
• Two-port gigabit Ethernet switch 10/100/1000 Base-TX across LAN and PC ports
• Wi-Fi network connectivity–2.4-2.4835 GHz (802.11b, 802.11g, 802.11n HT-20)- 5.15-5.825 GHz (802.11a, 802.11n, HT-20, 802.11n HT-40)
• Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment
• Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation
• Manual or dynamic host configuration protocol (DHCP) network setup
• Time and date synchronization using SNTP
(order headset separately)
• FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
• Provisioning and call server redundancy supported1
• QoS Support—IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP
• VLAN—CDP, DHCP VLAN discovery, LLDP- MED for VLAN discovery - Network address translation support for static configuration and “keep-alive”
• SIP signaling
• RTCP and RTP support
• Event logging
• Syslog
• Hardware diagnostics
• Status and statistics reporting • IPv4 and IPv6
• TCP
• UDP
• DNS-SRV
SECURITY
• 802.1X authentication and EAPOL • Media encryption via SRTP
• Encrypted configuration files
• Digest authentication
• Password login
• Support for URL syntax with password for boot server address
• HTTPS secure provisioning
• Support for signed software executables
• Wi-Fi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2)
