Philips 220BDL9112L – 220" 4K UHD dvLED Video Wall Kit

Product Overview

The Philips 220BDL9112L LED display kit is a complete 220-inch direct view LED video wall solution engineered for large-venue commercial deployment. Built from Philips L-Line dvLED cabinets with an ultra-fine 1.2mm-class pixel pitch, the kit delivers 4K UHD imaging with zero bezels, high brightness, and the uniformity required for lobbies, auditoriums, and broadcast environments. Everything an integrator needs for a turnkey LED video wall installation ships in the kit, including cabinets, controller, cabling, and edge finishing. For organizations replacing tiled LCD video walls, this bezel-free LED platform removes seams entirely while supporting 24/7 indoor operation.

Product Description

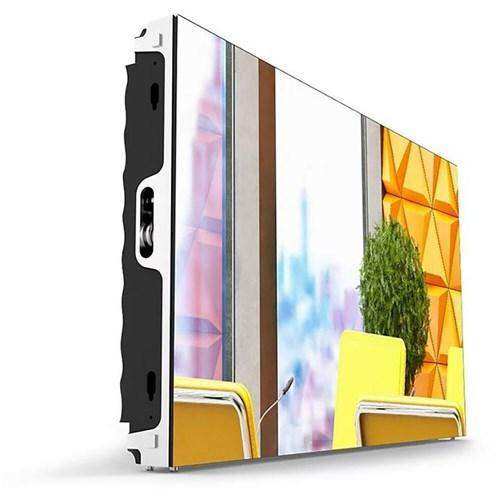

The 220BDL9112L is part of the Philips L-Line professional dvLED family, a modular cabinet system designed for commercial AV integrators and facilities teams that need a large-format display without the bezel lines of conventional video walls. Each die-cast aluminum cabinet measures 608 x 342 mm with a 480 x 270 pixel array, and the cabinets lock together with guide pins and an integrated locking mechanism to form the finished 220-inch, 16:9 canvas. Daisy-chained power and data with built-in rear cable covers keep the installation clean and reduce rack-to-wall cabling. Front-access LED modules lift out with a magnetic JIG tool, so service technicians can swap a module from the front of the wall without disassembling the array — a critical consideration for walls mounted flush in architectural spaces. Novastar receiving cards in each cabinet pair with the included control hardware for source scaling and wall management, and the gold-wire SMD LEDs are rated for 100,000 hours of operation. With 800-nit calibrated brightness, 160-degree viewing angles, and a contrast ratio of 3000:1 or better, content remains legible across wide seating areas and high ambient light conditions. Procurement teams should note the kit is rated for 24/7 indoor duty cycles and carries a 3-year Philips warranty. Creation Networks supplies the full Philips commercial display lineup, and for smaller-budget projects we also stock LCD alternatives such as the Philips 55BDL4107X video wall display.

Key Features

• Zero-Bezel dvLED Design — Cabinets join edge-to-edge with no visible seams, producing a single continuous image across the entire 220-inch surface.
• 1.2mm-Class Fine Pixel Pitch — A 1.266 mm pixel pitch keeps imagery sharp at the closer viewing distances found in lobbies, boardrooms, and studio sets.
• Complete Kit Delivery — Cabinets, controller hardware, cabling, and edge finishing arrive as one SKU, simplifying procurement and project staging for integrators.
• Front-Access Serviceability — Each of the eight LED modules per cabinet removes from the front with a magnetic JIG tool, so flush-mounted walls stay serviceable.
• High Brightness with Calibration — 900 nits before calibration and 800 nits calibrated, with at least 97% brightness uniformity across the wall.
• Gold-Wire SMD LEDs — High-performance gold-wire LEDs are energy-efficient and rated for 100,000 hours, supporting long-term 24/7 operation.
• Daisy-Chain Power and Data — Power and RJ45 signal loop-through between cabinets minimizes cabling and speeds installation.
• Novastar Receiving Cards — Two Novastar A7S/A5S Plus receiving cards per cabinet provide professional-grade signal processing and wall control.

Typical Applications

• Auditorium
• All-hands room
• Broadcast studio
• House of worship
• Government space
• Commercial meeting space

Technical Specifications

Per-cabinet specifications for the L-Line dvLED cabinets (27BDL9112L) that comprise this kit, per Philips documentation:

Frequently Asked Questions

Is the 220BDL9112L a single display or a kit?
It is a complete kit. Philips L-Line LED kits ship with the dvLED cabinets, controller hardware, cabling, and edge finishing required to assemble the 220-inch wall as a single project SKU.

What sources can drive this LED video wall?
The wall is driven through Novastar-based LED control hardware, which accepts standard commercial AV sources. Integrators typically feed the controller from a media player, video wall processor, or presentation switcher in the equipment rack.

Can the wall be serviced after installation?
Yes. The LED modules are front-accessible and remove with a magnetic JIG tool, so the wall can be flush-mounted against a structural wall and still be fully serviceable.

Is this display rated for continuous operation?
Yes. The L-Line cabinets are rated for 24/7 indoor operation, with gold-wire LEDs specified at 100,000 hours of lifetime.

What warranty applies, and who handles support?
Philips covers the hardware with a 3-year warranty. Creation Networks provides pre-sale system design assistance and post-sale support coordination for commercial deployments; contact us at info@creationnetworks.net for project pricing.

Does installation require a certified integrator?
Direct view LED walls require structural mounting, power planning, and cabinet calibration. We strongly recommend installation by a commercial AV integrator; Creation Networks can scope turnkey installation as part of your quote.
