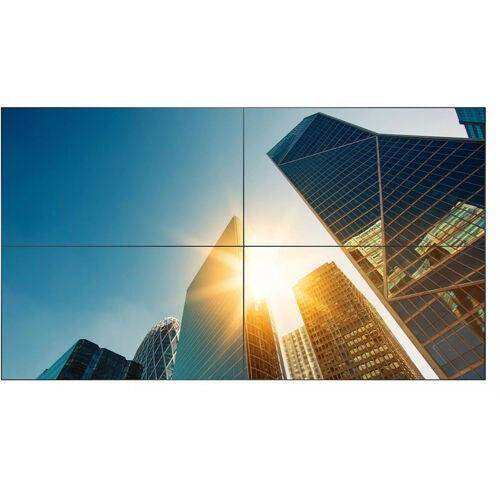

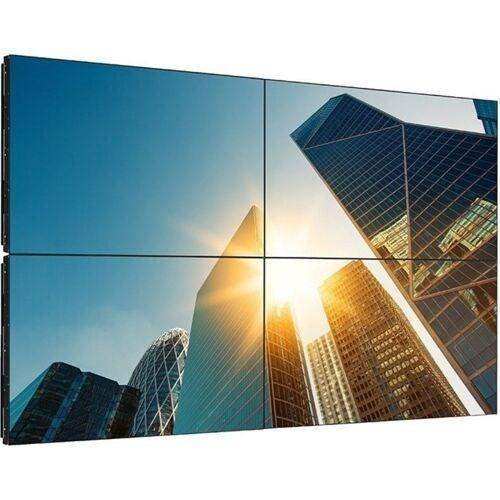

Philips 55BDL4107X/00 – 55" 700-Nit FHD Video Wall Display

Product Overview

The Philips 55BDL4107X/00 is a 55-inch Full HD video wall display built for 24/7 commercial installation in lobbies, broadcast environments, and large-venue presentation walls. Its extreme-narrow 0.88 mm + 0.88 mm bezel creates nearly invisible seams between tiles, while a 700 cd/m² direct-LED panel keeps multi-screen content bright in ambient-lit spaces. Native tiling mode scales arrays up to 15 x 15 without an external processor for standard layouts, and Pure Colour Pro calibration keeps adjacent panels visually matched. FailOver redundancy and CMND & Control round out a dependable video wall building block for commercial deployment.

Product Description

Each 54.6-inch tile delivers native 1920 x 1080 resolution at 700 cd/m² with a 1100:1 typical contrast ratio, 1.07 billion colors, an 8 ms response time, and 178-degree viewing angles. In tiled configurations, a 2x2 wall of these Full HD panels reproduces 4K content at dot-by-dot resolution, making this an economical path to a large 4K canvas compared with single-panel alternatives.

The display is rated for continuous 24/7 operation in landscape or portrait, with pixel-shift and low-brightness functions protecting the panel across a 50,000-hour MTBF. Tiling mode lets a single player drive the wall, with DisplayPort 1.3 loop-through carrying video between tiles and dual RJ45 ports daisy-chaining LAN control — a topology that reduces cabling and simplifies video wall installation. CMND & Control provides LAN-based monitoring and input management across the array, FailOver switches automatically to a secondary input if a feed fails, and a built-in thermal sensor supports health monitoring in enclosed installations. Inputs include two HDMI 2.0 ports, DisplayPort 1.3, DVI-D, and VGA, plus an OPS slot for a slot-in PC or optional Android CRD50 module. The included edge alignment pins, gap pads, and RJ45/RS232 converter speed alignment and commissioning, and at 25.33 kg per tile the panels handle easily during rigging.

Source matching tiles and mounts through our Philips commercial display collection.

Key Features

• Extreme-Narrow 0.88 mm Bezel — Roughly 1.76 mm bezel-to-bezel seams keep tiled content continuous and distraction-free.
• 700 cd/m² Brightness — High output holds visibility across large walls in bright lobbies and venues.
• 24/7 Operation Rating — Continuous landscape or portrait duty with pixel-shift protection and 50,000-hour MTBF.
• Native Tiling to 15 x 15 — Build large walls from a single player without an external processor for standard layouts; 2x2 reproduces 4K dot-by-dot.
• Pure Colour Pro Calibration — Custom color temperature and gamma calibration keep adjacent tiles uniform.
• FailOver Input Redundancy — Automatic switching to a backup source prevents blank tiles in mission-critical walls.
• Daisy-Chain Topology — DisplayPort 1.3 loop-through and dual RJ45 signal/control chaining reduce home-run cabling.
• OPS Slot — Embed a slot-in PC or optional Android CRD50 module directly in the display.
• CMND & Control — Manage inputs and monitor display status across the wall over LAN.
• Installer Kit Included — Edge alignment pins, gap pads, RJ45/RS232 converter, and DP/RJ45 cables ship in the box.

Typical Applications

• Broadcast studio
• Auditorium
• All-hands room
• Government space
• Commercial meeting space
• House of worship
• Boardroom

Technical Specifications

Frequently Asked Questions

Why choose Full HD tiles instead of 4K panels for a video wall?
A 2x2 wall of these 1080p tiles natively reproduces 4K content dot-by-dot, often at a lower cost per square foot than 4K tiles, with brighter 700-nit output.

Do I need an external video wall processor?
Not for standard layouts. Native tiling mode lets one source drive the wall over DisplayPort loop-through; multi-window or irregular layouts may still call for a processor.

How large a wall can be configured?
The tiled matrix supports up to 15 x 15 (225 displays) with daisy-chained video and control.

How are tiles aligned and color matched during installation?
Included edge alignment pins and gap pads aid physical alignment, while Pure Colour Pro calibration matches color temperature and gamma across panels.

How does it integrate with control systems?
Dual RJ45 LAN ports with loop-through, an RJ45/RS232 converter, and CMND & Control support Crestron, Extron, and similar control architectures.

What warranty applies?
Philips includes a 3-year commercial warranty; Creation Networks assists with wall design, mounts, and post-installation support.
