Philips 110BDL8007X/00 – 2x2 Video Wall Kit with Mounts

Product Overview

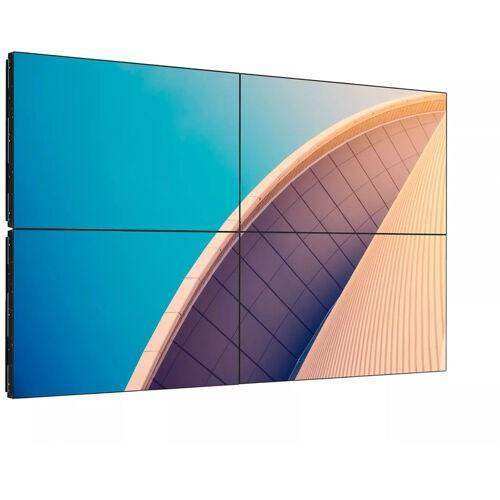

The Philips 110BDL8007X/00 is a turnkey 2x2 video wall kit for commercial video wall installation in corporate lobbies, conference rooms, and broadcast environments. It pairs four Philips 55BDL8007X X-Line video wall displays — 700 cd/m² brightness, Full HD resolution, and an extreme-narrow 0.88mm bezel-to-bezel design — with four DS-VW755-SQ video wall mounts, giving integrators everything needed to commission a roughly 110-inch diagonal display surface. Rated for 24/7 operation, this Philips digital signage video wall kit supports native tiling, DisplayPort daisy-chaining, and networked CMND & Control management for low-maintenance commercial deployment.

Product Description

For AV integrators and facilities teams, the 110BDL8007X/00 condenses a multi-line-item video wall quote into a single SKU: four matched 700-nit panels plus four full-service video wall mounts. The 55BDL8007X is the premium tier of the Philips X-Line, with an extreme-narrow 0.44mm + 0.44mm bezel that keeps the seam between tiles to roughly 0.9mm — the tightest image gap in the Philips Full HD videowall range — so spreadsheets, dashboards, and brand content read as one continuous image.

Deployment is installer-friendly end to end. The included DS-VW755-SQ pop-out video wall mounts allow individual panel service access after installation, while each display ships with edge alignment pins, carrying handles, and a Smart Insert for cable-free media player mounting. Built-in tiling mode supports matrices up to 15x15 and is configured from the on-screen menu, so the 2x2 wall runs from a single source over DisplayPort 1.3 loop-through with no external video wall processor required. Each display includes an OPS slot for a slot-in PC or the optional Android-based CRD50 module, and FailOver input switching keeps content live if a source drops. IT and AV system integration is handled over dual RJ45 LAN ports with CMND & Control for centralized monitoring, plus an included RJ45-to-RS232 converter for control processors. At 700 cd/m², the wall holds up in bright, glass-walled corporate spaces where standard signage panels wash out. A lower-cost alternative built on the standard X-Line panel is available as the Philips 55BDL4107X video wall display, and you can review the full Philips commercial display lineup at Creation Networks.

Key Features

• Complete 2x2 Kit with Mounts — Four matched 55BDL8007X displays and four DS-VW755-SQ video wall mounts ship together, cutting procurement and bid-spec effort to one line item.
• Extreme-Narrow 0.88mm Bezel-to-Bezel — The 0.44mm + 0.44mm bezel design produces a near-invisible seam for content that demands a continuous canvas.
• 700 cd/m² High Brightness — Content stays legible in daylight-flooded lobbies, atriums, and conference spaces where standard panels lose contrast.
• 24/7 Commercial-Grade Operation — Rated for continuous landscape or portrait duty with a 50,000-hour MTBF for always-on digital signage.
• Serviceable Pop-Out Mounting — DS-VW755-SQ mounts give technicians front access to any panel without disassembling the wall.
• Built-In Tiling up to 15x15 — Native tiling mode with 4K content support configures the array without an external video wall processor.
• DisplayPort 1.3 Loop-Through — Daisy-chain all four displays from a single source to simplify cabling and reduce source-device cost.
• CMND & Control over LAN — Centrally monitor display status, switch inputs, and push settings across the wall from the network.
• FailOver Input Redundancy — Displays automatically fall back to a secondary input so the wall never shows a blank screen during operating hours.
• OPS Expansion Slot — Embed a slot-in PC or the optional CRD50 Android module in each display for cable-free playback.

Typical Applications

• Boardroom
• Conference room
• Commercial meeting space
• All-hands room
• Broadcast studio
• Government space
• House of worship

Technical Specifications

Specifications below apply to each of the four 55BDL8007X displays in the kit (source: Philips).

Frequently Asked Questions

What is included in the 110BDL8007X/00 kit?
Four Philips 55BDL8007X 700-nit video wall displays and four DS-VW755-SQ video wall mounts, plus each display's standard accessories including DP cable, RJ45 cable, IR sensor cable, edge alignment pins, and RJ45/RS232 converter.

Do I need a video wall processor for a 2x2 layout?
No. Native tiling mode plus DisplayPort 1.3 loop-through lets one source drive the full 2x2 array. A processor is only required for multi-window or multi-source presentation layouts.

How does the DS-VW755-SQ mount simplify service?
The pop-out mechanism brings any panel forward for cable or display service without removing adjacent panels, which matters in recessed and flush-wall installations.

Is this display suitable for bright, window-facing rooms?
Yes. At 700 cd/m² the 55BDL8007X is specified for high-ambient-light commercial environments and maintains contrast where 350–500-nit signage panels wash out.

How does the wall integrate with control and monitoring systems?
Each display exposes dual RJ45 LAN ports for CMND & Control or third-party control platforms, plus IR input and an RS232 path via the included converter for room control processors.

What warranty and support apply?
Philips covers each display with a 3-year warranty. Creation Networks supports system design, staging, and post-installation replacement logistics for commercial deployments.

Can the displays run media playback without external players?
Yes. Each display's OPS slot accepts a slot-in PC or the optional Philips CRD50 Android module for embedded digital signage playback.
