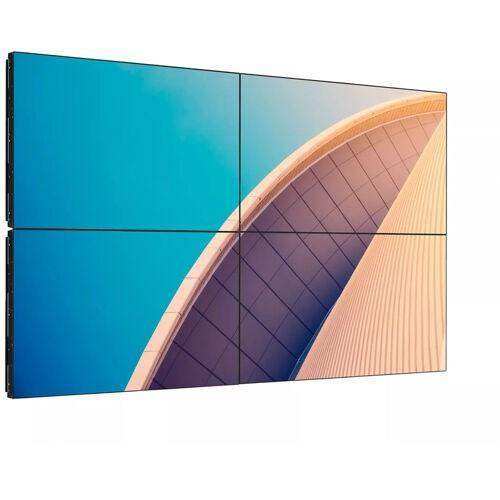

Philips 110BDL4107X/00 – 2x2 Video Wall Kit, 700-nit Displays

Product Overview

The Philips 110BDL4107X/00 is a complete 2x2 video wall kit for commercial video wall installation in conference rooms, corporate lobbies, and training facilities. The kit combines four Philips 55BDL4107X X-Line video wall displays — Full HD resolution, 700 cd/m² brightness, and an ultra-narrow 1.76mm bezel-to-bezel profile — with four DS-VW755-SQ video wall mounts for a single-order path to an approximately 110-inch diagonal display surface. Built for 24/7 operation with native tiling and networked CMND & Control management, this Philips digital signage video wall kit gives integrators a dependable, processor-free 2x2 deployment.

Product Description

The 110BDL4107X/00 is the value-engineered 2x2 package in the Philips X-Line family, aimed at AV integrators, IT and facilities managers, and procurement teams who need high-brightness video wall performance without the premium of an extreme-narrow-bezel panel. Each 55BDL4107X delivers 700 cd/m² — enough headroom for glass-walled conference rooms and daylight-exposed lobbies — with 178-degree viewing angles and a commercial-grade panel rated for continuous 24/7 operation in landscape or portrait.

The four included DS-VW755-SQ pop-out video wall mounts make the kit installation-ready: technicians can align panels precisely with the included edge alignment pins, then service any display from the front after the wall is closed up. Tiling mode is built into each display and supports matrices up to 15x15, so the 2x2 array is configured from the on-screen menu and driven from a single source over DisplayPort 1.3 loop-through — no external video wall processor needed. For AV system integration, each display offers dual RJ45 LAN ports with CMND & Control for remote monitoring, IR input, and an included RJ45-to-RS232 converter for control processors. An OPS slot accepts a slot-in PC or the optional CRD50 Android module for embedded playback, and FailOver input switching keeps content on screen if the primary source fails. The individual panel is also available separately as the Philips 55BDL4107X video wall display for expansions and spares, and the broader Philips commercial display collection at Creation Networks covers larger matrices and alternative sizes.

Key Features

• Complete 2x2 Kit with Mounts — Four matched 55BDL4107X displays and four DS-VW755-SQ video wall mounts arrive as one SKU, simplifying quoting, ordering, and staging.
• 700 cd/m² High Brightness — The wall stays readable in bright conference rooms and lobby environments where lower-brightness signage panels lose impact.
• Ultra-Narrow 1.76mm Bezel-to-Bezel — The 0.88mm + 0.88mm bezel design keeps tile seams minimal so dashboards and video content present as a unified image.
• 24/7 Commercial-Grade Operation — Continuous-duty rating in landscape or portrait with a 50,000-hour MTBF supports always-on corporate and government deployments.
• Built-In Tiling up to 15x15 — Configure the array from the display menu with 4K content support and no external video wall processor.
• DisplayPort 1.3 Loop-Through — One source daisy-chains across all four panels, reducing cabling, source hardware, and points of failure.
• Serviceable Pop-Out Mounting — DS-VW755-SQ mounts provide front access to individual panels for maintenance without disturbing the rest of the wall.
• CMND & Control Network Management — Monitor, configure, and control every display centrally over the LAN, integrating with existing IT workflows.
• FailOver Input Redundancy — Automatic switching to a secondary input prevents blank screens if the primary source drops.
• OPS Expansion Slot — Add a slot-in PC or optional CRD50 Android module per display for cable-free digital signage playback.

Typical Applications

• Boardroom
• Conference room
• Training room
• Commercial meeting space
• All-hands room
• Government space
• House of worship

Technical Specifications

Specifications below apply to each of the four 55BDL4107X displays in the kit (source: Philips).

Frequently Asked Questions

What ships in the 110BDL4107X/00 kit?
Four Philips 55BDL4107X 700-nit video wall displays and four DS-VW755-SQ video wall mounts, plus standard per-display accessories including DP cable, RJ45 cable, IR sensor cable, edge alignment pins, and an RJ45/RS232 converter.

How does this kit differ from the 110BDL8007X/00?
Both are 700-nit 2x2 kits with the same connectivity and management features. The 8007X uses an extreme-narrow 0.44mm + 0.44mm bezel for a tighter seam, while the 4107X uses a 0.88mm + 0.88mm bezel at a lower price point.

Do I need an external video wall processor?
No. Built-in tiling mode plus DisplayPort 1.3 loop-through lets a single source drive the full 2x2 wall. Add a processor only for multi-source windowing requirements.

Can a single panel be serviced after installation?
Yes. The included DS-VW755-SQ mounts pop each display forward for front service access without removing adjacent panels.

How does the wall connect to network management and control systems?
Each display provides dual RJ45 LAN ports for CMND & Control or third-party platforms, IR input, and an RS232 path via the included converter for integration with room control processors.

Is the kit suitable for 24/7 deployment?
Yes. Each 55BDL4107X is rated for continuous 24/7 operation in landscape or portrait with a 50,000-hour MTBF.

What warranty applies and who supports the deployment?
Philips provides a 3-year warranty on each display. Creation Networks assists with system design, expansion planning, and post-installation support for commercial AV deployments.
