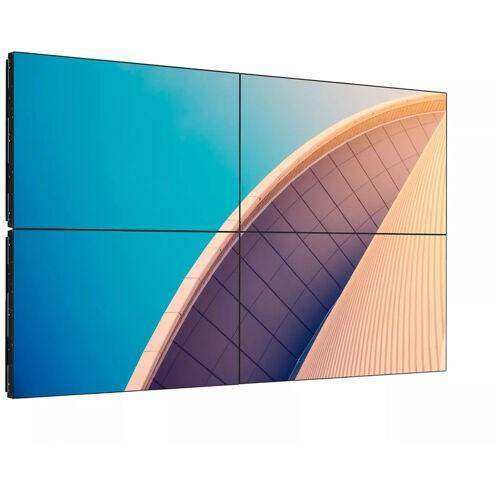

Philips 110BDL2005X/00 – 2x2 Video Wall Kit, Four 55" FHD Panels

Product Overview

The Philips 110BDL2005X/00 is a 2x2 video wall kit built from four Philips 55BDL2005X 55-inch Full HD displays, a cost-effective entry point for commercial video wall installation in retail, corporate, and public-facing spaces. Each panel delivers 500 cd/m² brightness from a Direct LED-backlit IPS panel with ultra-narrow 3.5 mm bezels, forming a continuous 110-inch image. Native tiling mode and loop-through connectivity let integrators deploy the array without an external video wall processor. It is a complete four-panel package for organizations that want video wall impact on a controlled budget.

Product Description

The 55BDL2005X gives integrators the core videowall feature set — tiling, loop-through, OPS expansion — at the most accessible price tier in the Philips videowall range. The Direct LED IPS panel holds color and contrast across 178/178-degree viewing angles, important for walls viewed obliquely in lobbies and retail aisles.

With 3.5 mm combined bezels between tiles, the 2x2 composite reads as one surface, and built-in tiling mode maps a single 4K source dot-by-dot across the four Full HD panels. Connectivity covers the inputs commercial deployments still rely on: two HDMI 1.4 ports, DisplayPort 1.2, DVI-D, VGA, and component BNC, with DisplayPort 1.2 and DVI-I outputs for daisy-chaining the signal across the array. That loop-through architecture removes splitters and distribution amplifiers from the AV integration bill of materials. Each display includes an OPS slot, so a slot-in PC or the optional CRD50 Android module can run signage content from inside the display with no external cabling. Network and serial control allow facilities teams to manage power, inputs, and scheduling remotely, while FailOver input switching protects against blank screens when a source drops. The 500,000:1 dynamic contrast ratio and 8 ms response time keep motion content clean for video-heavy playlists. For mounting hardware and companion displays, see the Philips commercial display collection at Creation Networks, or compare with the higher-brightness single 55BDL2005X display if you are phasing your build.

Key Features

• Four-display 2x2 kit — Matched 55BDL2005X panels assemble into a 110-inch Full HD video wall ready for commercial deployment.
• 3.5 mm ultra-narrow bezels — Tight panel-to-panel seams keep tiled content continuous and easy to read at distance.
• 500 cd/m² IPS panel — Direct LED backlighting and 178-degree viewing angles maintain image quality across wide rooms.
• Built-in tiling mode — Map one 4K source across the array dot-by-dot without an external video wall controller.
• Loop-through outputs — DisplayPort 1.2 and DVI-I outputs daisy-chain the signal between panels, reducing cabling and distribution hardware.
• OPS slot per display — Embed a slot-in PC or optional CRD50 Android module for cable-free media playback.
• FailOver input switching — Displays fall back to a secondary source automatically so content keeps playing.
• Broad legacy connectivity — HDMI 1.4 (x2), DisplayPort 1.2, DVI-D, VGA, and component BNC simplify integration with existing source equipment.
• 3-year warranty per display — Philips commercial coverage supports long-term procurement planning.

Typical Applications

• Commercial meeting space
• Multi-purpose room
• House of worship
• Government space
• Training room
• All-hands room

Technical Specifications

Specifications below apply to each 55BDL2005X display (4 included in this kit).

Frequently Asked Questions

Do I need a video wall processor with this kit?
No. Built-in tiling mode plus DisplayPort and DVI loop-through let a single source drive all four panels, with dot-by-dot mapping when the source is 4K.

How does this kit differ from the 110BDL3105X and 110BDL4007X kits?
The 2005X series is the value tier: same 55-inch FHD format and tiling features, with 500 cd/m² brightness. The 3105X adds LAN-centric CMND management, and the 4007X steps up to 700 cd/m² with narrower 1.8 mm A-A bezels.

Can older source equipment connect to this wall?
Yes. In addition to HDMI and DisplayPort, each display includes DVI-D, VGA, and component BNC inputs, which simplifies AV integration with legacy switchers and players.

Does the kit include media playback hardware?
Playback can be added via the OPS slot on each display using a slot-in PC or the optional Philips CRD50 Android module; no external player shelf is required.

What about mounting?
Video wall mounts are specified separately to match the wall structure and service access needs. Creation Networks can recommend compatible push-pop or fixed video wall mounts for this kit.

What warranty and support are provided?
Each display includes a 3-year Philips commercial warranty, and Creation Networks supports system design, ordering, and post-installation questions.
