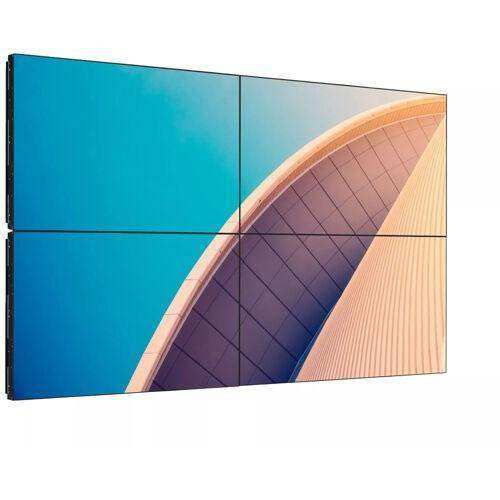

Philips 55BDL2005X/00 – 55" FHD 24/7 Video Wall Display

Product Overview

The Philips 55BDL2005X/00 is a 55" Full HD video wall display from the X-Line family, built for 24/7 tiled installations in transit hubs, corporate lobbies, and conference venues. Its ultra-narrow 3.5 mm combined bezel keeps panel-to-panel gaps minimal so multi-screen content reads as a single canvas. A 500 cd/m2 direct-LED panel with 178-degree viewing angles holds clarity across wide audience sightlines. An OPS slot accepts embedded compute, so the wall can run without external media player cabling.

Product Description

For AV integrators, the 55BDL2005X/00 is a cost-effective Full HD building block for video walls where 4K-per-panel density is unnecessary — wayfinding, flight information, corporate communications, and stage backdrops. The 54.6" panel delivers 1920 x 1080 resolution at 500 cd/m2 with a 1200:1 typical contrast ratio (500,000:1 dynamic) and an 8 ms response time that keeps motion content clean.

Input flexibility is a practical advantage on retrofit projects: alongside two HDMI inputs, DisplayPort 1.2, DVI-D, and VGA, the display accepts component video over BNC, which simplifies tie-ins with legacy broadcast and security sources. DisplayPort 1.2 and DVI loop-through outputs distribute signal down the chain for tiled layouts, while serial and Ethernet control paths integrate with Crestron, Extron, and Q-SYS room control systems. The OPS slot powers a slot-in PC or the optional Philips CRD50 Android module, putting the signage player inside the display chassis. The 24/7 duty rating and direct-LED backlight suit installations that never power down, and the 400 x 400 VESA pattern works with standard video wall mounting systems that provide pop-out service access. Procurement teams should price per panel and plan array sizes around the 3.5 mm seam budget. For the closely related model with HDMI 2.0 inputs and dual-LAN daisy-chaining, compare the Philips 55BDL2105X/00, or browse the full Philips collection at Creation Networks.

Key Features

• 3.5 mm combined bezel — Ultra-narrow asymmetric bezels minimize seams so tiled arrays present content as one continuous image.
• 24/7 commercial duty rating — The panel is engineered for continuous operation in transit, retail, and corporate environments.
• 500 cd/m2 Full HD panel — Direct LED backlighting with 178-degree viewing angles keeps content legible across wide, bright spaces.
• OPS slot for embedded players — A slot-in PC or optional CRD50 Android module runs signage software with no external cabling.
• Broad input set including component BNC — Dual HDMI, DisplayPort 1.2, DVI-D, VGA, and BNC component simplify integration with both modern and legacy sources.
• Loop-through outputs — DisplayPort 1.2 and DVI outputs daisy-chain signal across tiled panels without a distribution amplifier in many layouts.
• Serial and network control — RS-232 and Ethernet paths support automation from standard AV control processors.
• Standard VESA 400 x 400 mounting — Compatible with common video wall mount systems for serviceable, aligned installations.

Typical Applications

• Commercial meeting space
• Conference room
• Government space
• House of worship
• Auditorium
• Broadcast studio

Technical Specifications

Frequently Asked Questions

What is the difference between the 55BDL2005X and 55BDL2105X?

Both are 55" FHD 500-nit 24/7 X-Line video wall panels with 3.5 mm bezels and OPS slots. The 2005X adds legacy component BNC input and a DVI loop output, while the 2105X offers HDMI 2.0 inputs and dual RJ45 network daisy-chaining. Creation Networks can advise which fits a given signal chain.

Can it accept legacy video sources?

Yes. Component video over BNC and VGA inputs allow direct connection of legacy broadcast, security, or institutional sources without external converters.

Does the display support daisy-chained video?

Yes. DisplayPort 1.2 and DVI loop-through outputs pass the source signal to the next panel in a tiled array.

Can a media player be installed inside the display?

Yes. The OPS slot supplies power and connections for a slot-in PC or the optional Philips CRD50 Android SoC module.

How do control systems manage the wall?

RS-232 serial and Ethernet LAN control support power, input, and settings commands from Crestron, Extron, Q-SYS, or similar processors.

What mounting should be specified?

Use video-wall-rated mounts matching the 400 x 400 VESA pattern, ideally with pop-out or micro-adjust mechanisms for alignment and rear service access.
