Peerless-AV STS680-2UCM3 – Scissor Wall Mount w/ 2 Component Mounts

What is the Peerless-AV STS680-2UCM3 scissor wall mount?

The Peerless-AV STS680-2UCM3 is an ultra-slim scissor wall mount for 49" to 120"+ displays, bundled with two ACC-UCM3 component mounting plates for storing UC/VC hardware, media players, or amplifiers directly behind the display. It's built for video conferencing and unified communications rooms where the display needs full pull-out access to service cabling and connected components without unmounting the panel. For integrators specifying a low-profile tilt mount for large displays in boardrooms and conference rooms, the STS680-2UCM3 combines a near-flush wall profile with built-in equipment storage in a single kit.

What does the Peerless-AV STS680-2UCM3 do?

This scissor mount holds displays from 49" to 120"+ up to 250 lb, with a VESA range from 200x100mm to 1000x400mm (expandable to 1000x600mm with bolt-on extenders), covering nearly every large-format commercial display currently sold for boardroom and conference room video conferencing systems. The scissor-arm design extends the display out from 1.8" to 12.8" from the wall, giving installers and service technicians full access to cabling, component plates, and connections behind the panel without removing it from the wall — a significant time savings compared to a fixed flat mount when troubleshooting a UC/VC codec or replacing a media player. Two included ACC-UCM3 component mounting plates give integrators a place to secure a video conferencing codec, streaming encoder, or small-form-factor PC directly behind the display, keeping equipment out of sight while remaining reachable when the mount is extended. Tilt adjusts from 0° to 15° with optional fixed-angle increments via IncreLok technology, letting the display angle match sightlines in rooms where the panel sits above eye level. Post-installation leveling of ±½" and 2° of plumb adjustment compensate for uneven studs or out-of-plumb walls, which matters on large-format installs where even small misalignment is visually obvious. The black fused epoxy finish and UL listing, along with TAA and RoHS compliance, support both commercial aesthetics and government procurement requirements. A lifetime limited warranty backs the mount itself, reflecting the structural demands of holding large-format displays in active conferencing rooms.

What are the key features of the Peerless-AV STS680-2UCM3?

• 49" to 120"+ display compatibility — Supports large-format commercial displays up to 250 lb.

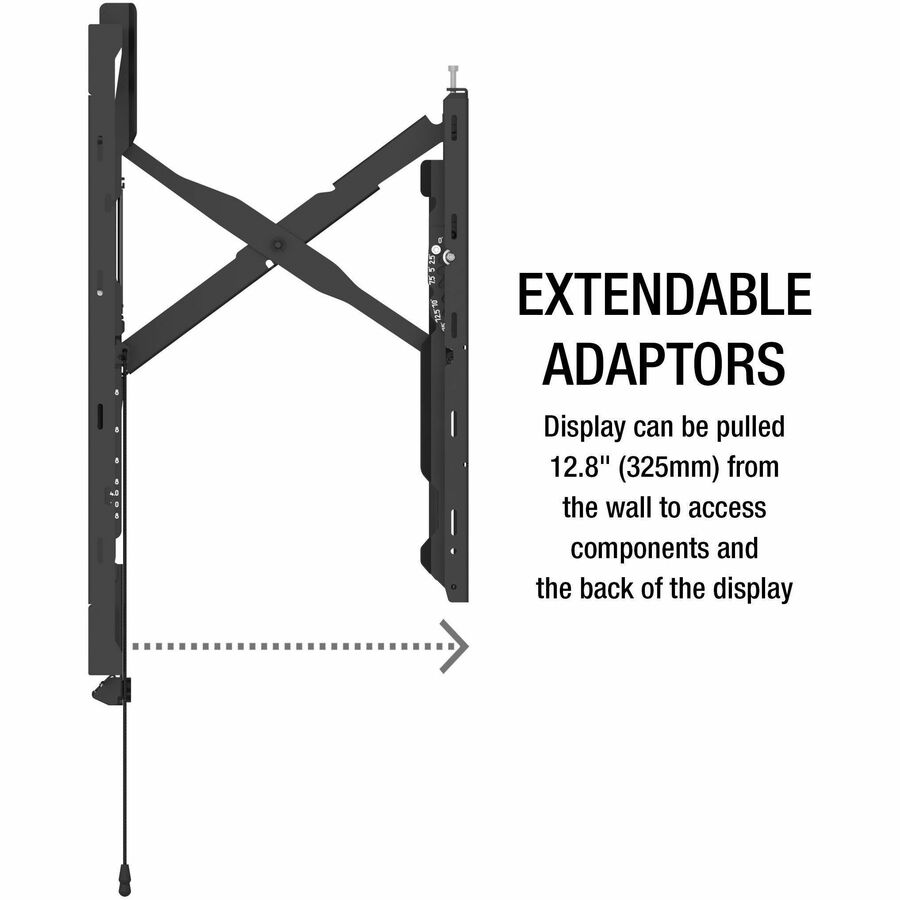

• 1.8" to 12.8" scissor extension — Provides full rear access to cabling and components without removing the display.
• Two ACC-UCM3 component mounts included — Stores VC codecs, media players, or amplifiers directly behind the display.

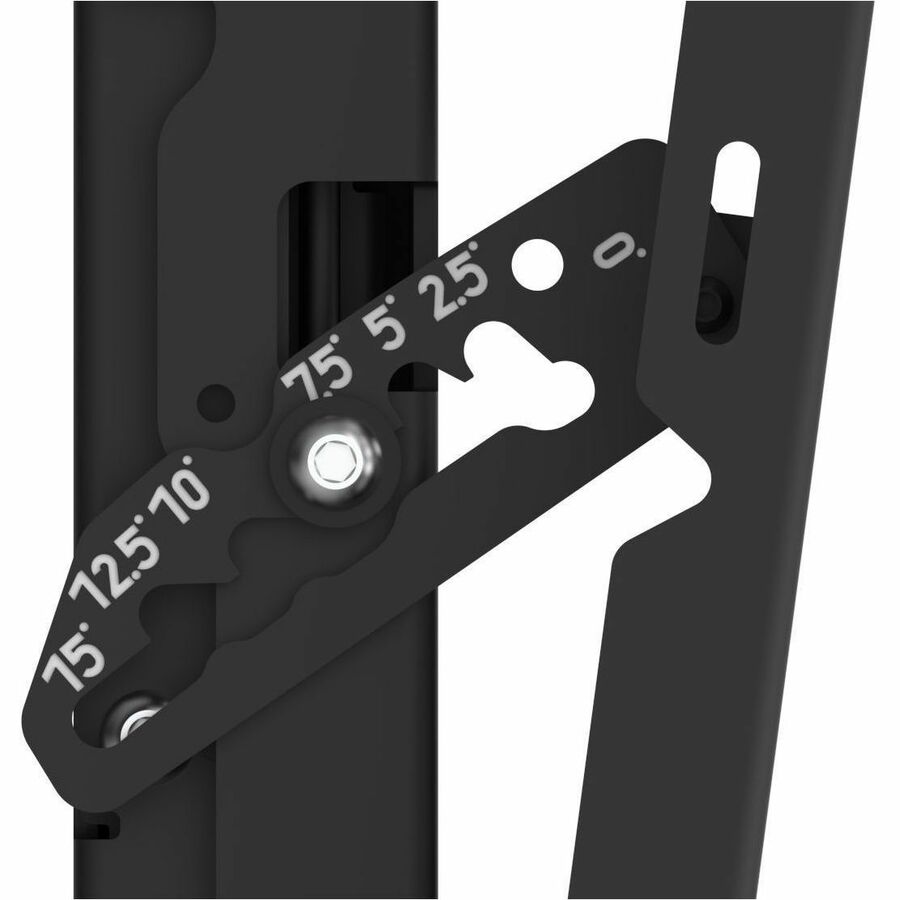

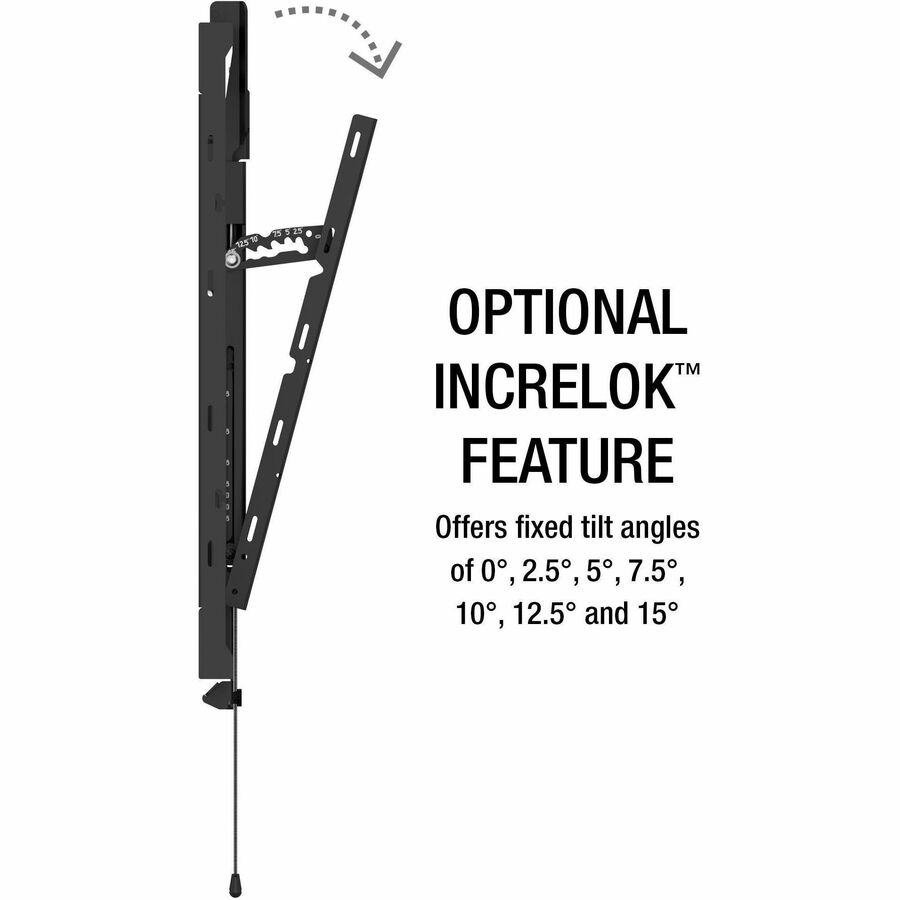

• 0° to 15° IncreLok tilt — Adjustable, lockable viewing angle for above-eye-level installations.
• 200x100mm to 1000x400mm VESA range — Compatible with nearly all large-format commercial displays.
• ±½" leveling and 2° plumb adjustment — Corrects for uneven studs and out-of-plumb walls after installation.
• Lifetime limited warranty — Backs the mount for the life of the installation.

Where is the Peerless-AV STS680-2UCM3 typically used?

• Boardroom video conferencing
• Conference rooms
• Commercial meeting spaces
• Government spaces
• Hospitality and corporate lobby displays

Technical Specifications

Frequently Asked Questions

What's the difference between the STS680-2UCM3 and STS680-1UCM3?
The -2UCM3 kit includes two component mounting plates for storing two pieces of AV/UC equipment behind the display; the -1UCM3 kit includes one plate. Both share the same STS680 wall mount and 49"-120"+ display range. See our STS680-1UCM3 for the single-plate version.

Can this mount be fully retracted to sit flush against the wall?

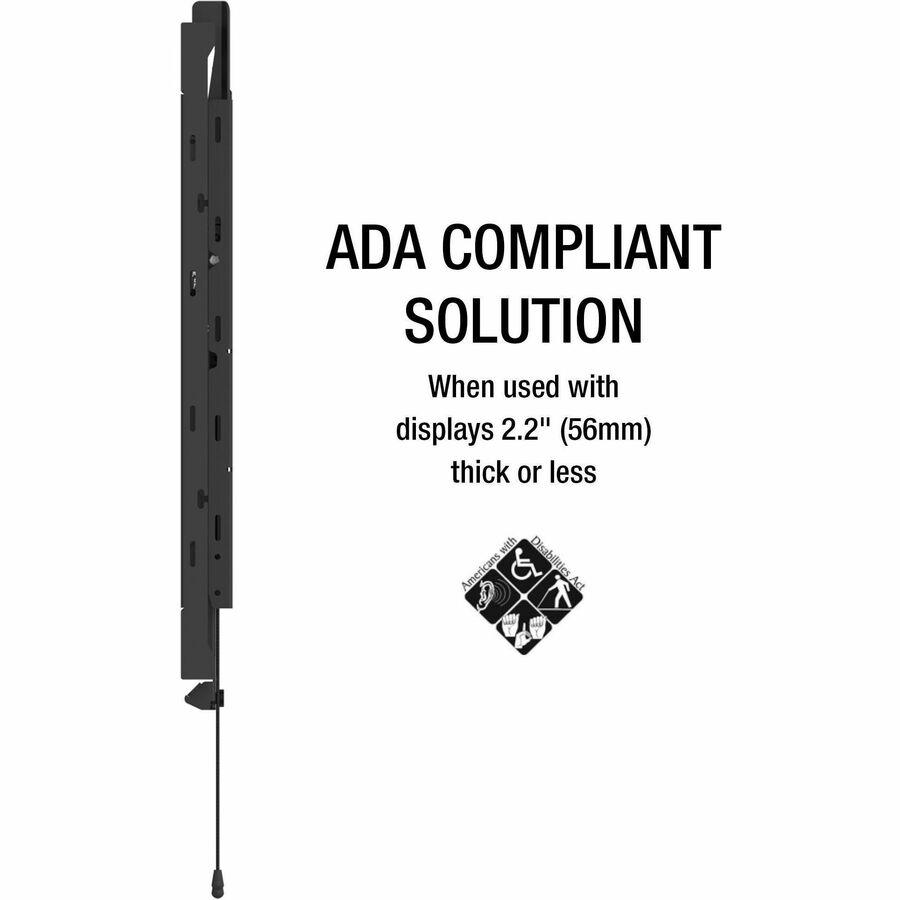

Yes, at its minimum extension the scissor arm sits at 1.8" from the wall, giving an ultra-slim profile when the mount isn't extended for service access.

Is this mount rated for video conferencing codec and equipment storage?
Yes, the two included ACC-UCM3 component plates are specifically designed to hold VC codecs, media players, or similar equipment behind the display.

What VESA patterns does the STS680-2UCM3 support?
200x100mm to 1000x400mm natively, expandable to 1000x600mm with bolt-on extenders, covering nearly all large-format commercial displays.

Does this mount compensate for an out-of-plumb wall?
Yes, it includes 2° of plumb adjustment and ±1/2" leveling capability to correct for wall and stud irregularities during installation.

What's the warranty on the STS680-2UCM3?
Lifetime limited warranty, with UL, TAA, and RoHS compliance suitable for corporate and government procurement.

Can Creation Networks integrate this mount into a full video conferencing room build?
Yes. Creation Networks provides display mounting, VC codec integration, cabling, and full commissioning as part of complete boardroom and conference room AV system deployments.
