Peerless-AV STS680-1UCM3 – Scissor Wall Mount w/ 1 Component Mount

What is the Peerless-AV STS680-1UCM3 scissor wall mount?

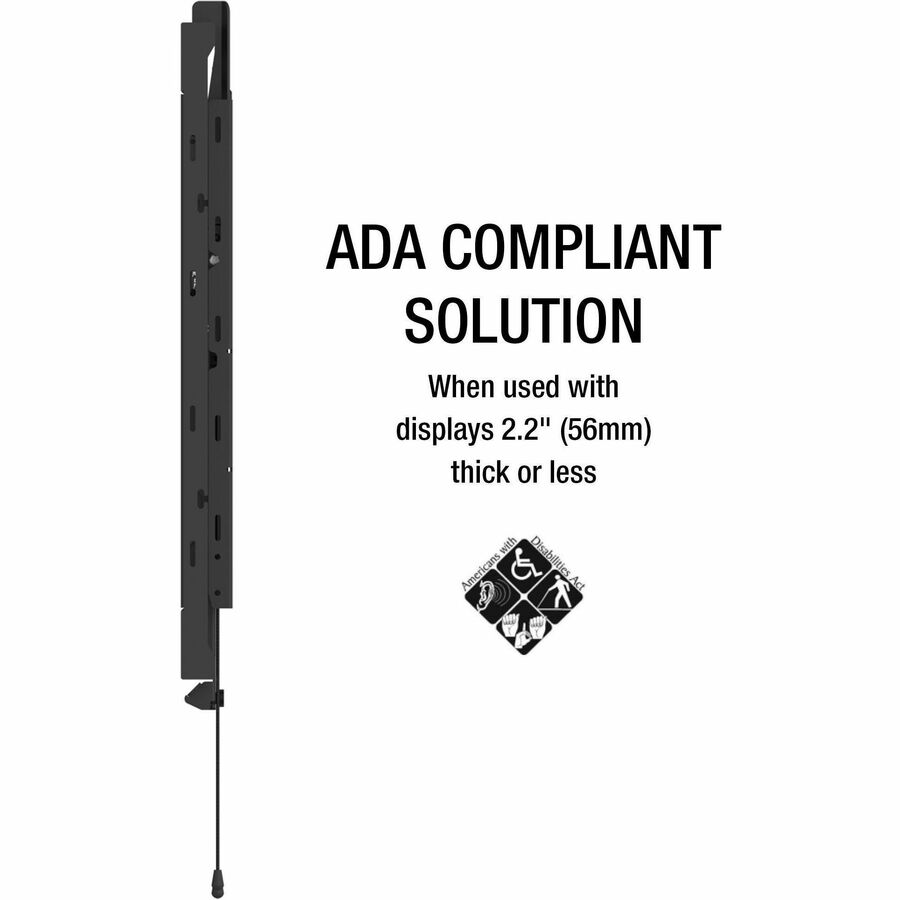

The Peerless-AV STS680-1UCM3 is an ultra-slim scissor wall mount for 49" to 120"+ displays, bundled with one ACC-UCM3 component mounting plate for storing a single piece of AV or UC equipment behind the display. It's built for recessed wall installations and video conferencing rooms where a low-profile tilt mount for large displays is needed along with a compact spot to store one media player, codec, or amplifier. For integrators speccing a single-component UC/VC display mount for corporate, digital signage, or hospitality environments, the STS680-1UCM3 provides the same scissor-arm serviceability as the two-plate version in a lower-cost kit.

What does the Peerless-AV STS680-1UCM3 do?

This scissor mount supports displays from 49" to 120"+ up to 250 lb, with a universal VESA range from 200x100mm to 1000x400mm (expandable to 1000x600mm with extenders), covering the large majority of commercial displays used in corporate and hospitality video conferencing installations. The scissor-arm mechanism extends the display 1.8" to 12.8" from the wall, giving service access to cabling and the mounted component without removing the display from the wall entirely. The included ACC-UCM3 component plate provides a dedicated mounting location for a single VC codec, streaming encoder, or small-form-factor PC directly behind the panel. Hook-and-Hang features let a single installer lift and secure the display onto the wall plate without a second set of hands, which shortens install time on large-format panels that are otherwise awkward for one person to hang. IncreLok tilt technology locks the display at a chosen angle between 0° and 15°, and ±½" leveling plus 2° of plumb correction handle wall and stud irregularities during installation. This is a purpose-built recessed-wall and UC/VC solution — for installations needing two pieces of equipment stored behind the display, the STS680-2UCM3 is the appropriate spec instead.

What are the key features of the Peerless-AV STS680-1UCM3?

• 49" to 120"+ display compatibility — Supports large-format commercial displays up to 250 lb.

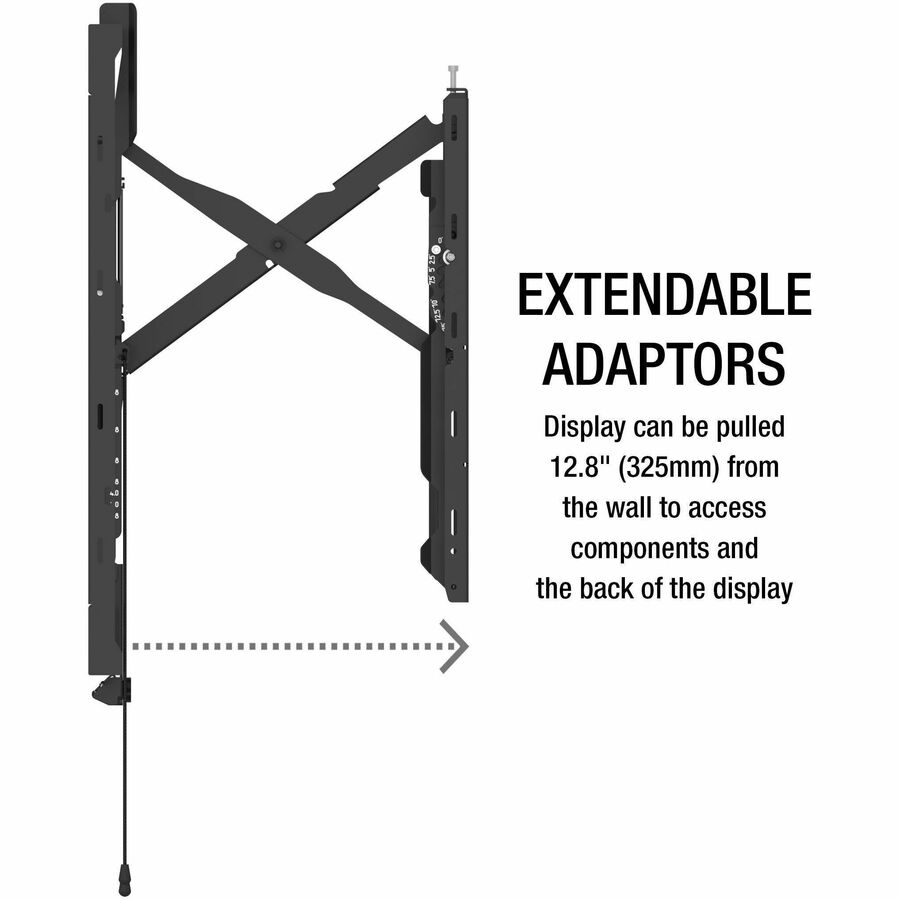

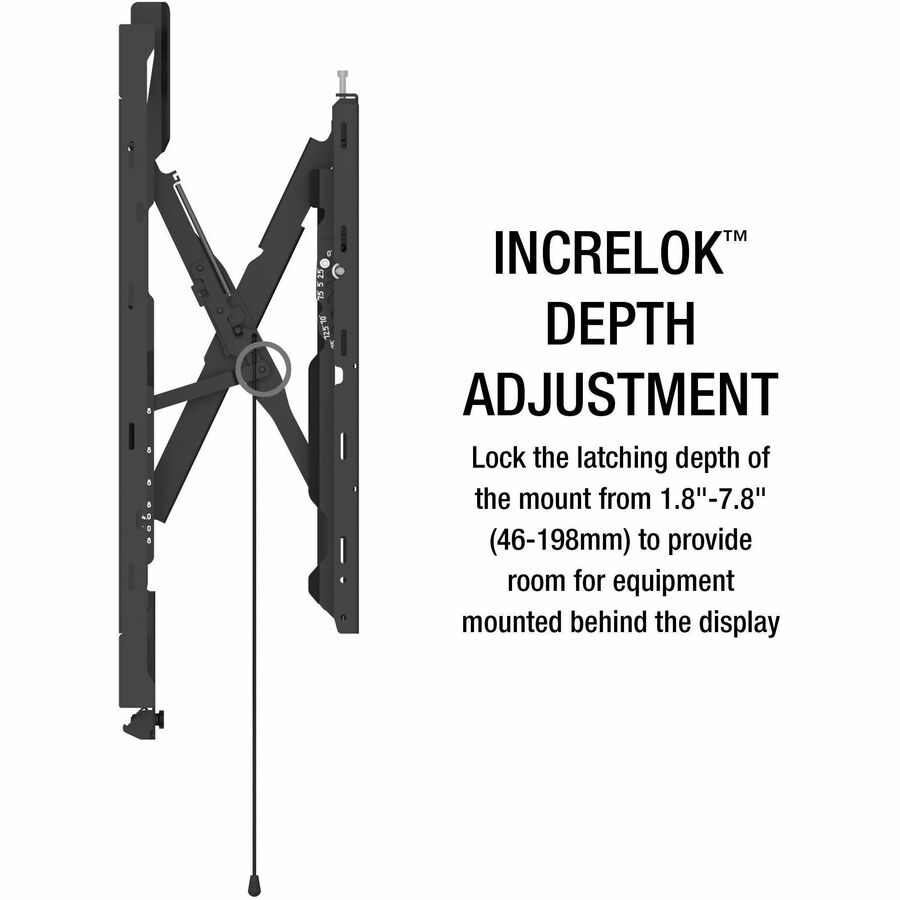

• 1.8" to 12.8" scissor extension — Provides rear access for cabling and component service without removing the display.
• One ACC-UCM3 component mount included — Stores a single VC codec, media player, or amplifier behind the display.
• Hook-and-Hang installation — Allows single-installer mounting on large-format displays.

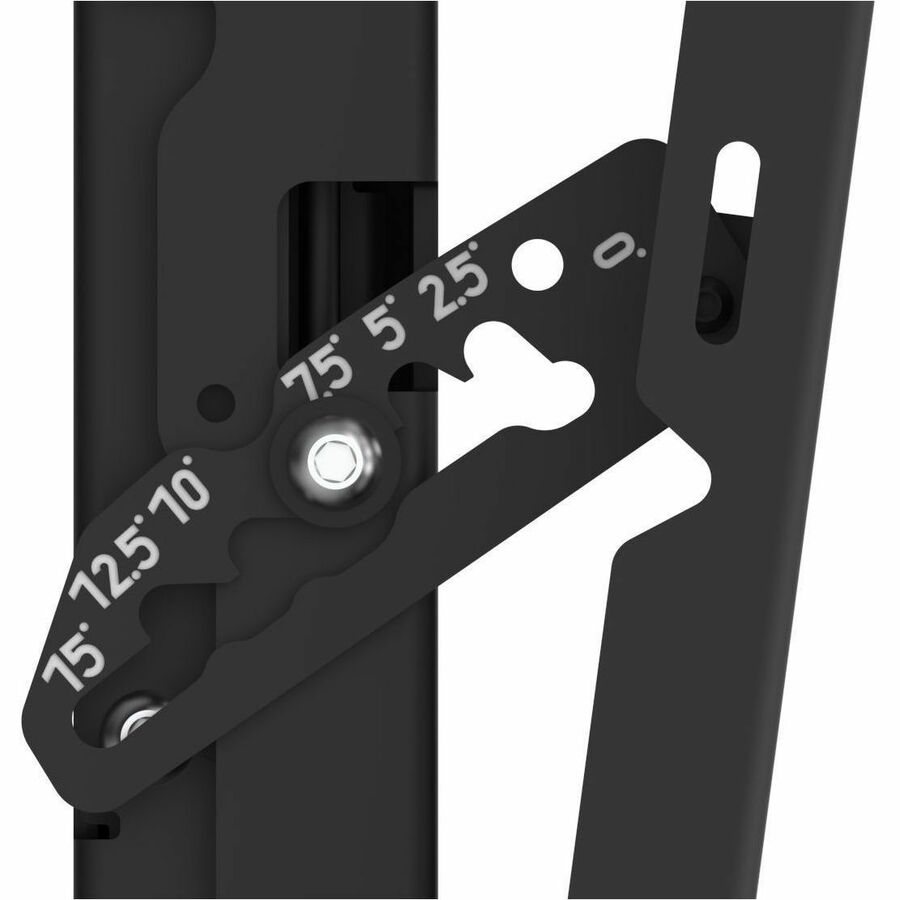

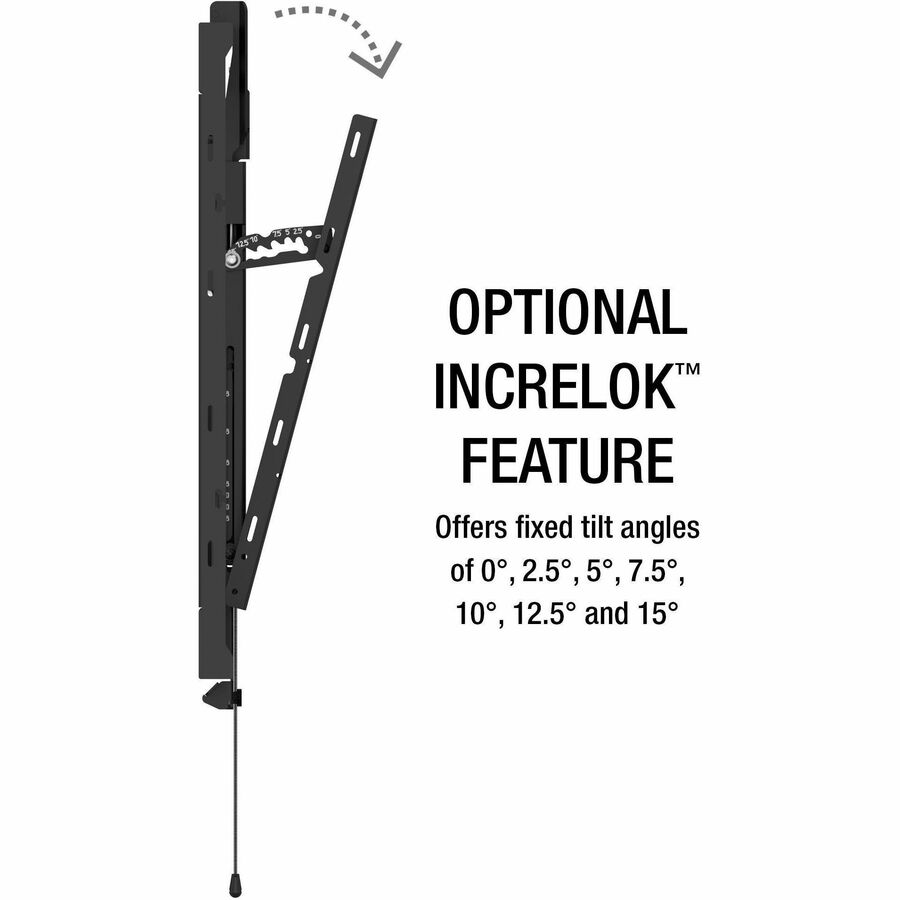

• 0° to 15° IncreLok tilt — Adjustable, lockable viewing angle for above-eye-level installs.
• 200x100mm to 1000x400mm VESA range — Compatible with nearly all large-format commercial displays.
• Lifetime limited warranty — Backs the mount for the life of the installation.

Where is the Peerless-AV STS680-1UCM3 typically used?

• Boardroom video conferencing
• Conference rooms
• Commercial meeting spaces
• Hospitality lobby and common-area displays
• Government spaces

Technical Specifications

Frequently Asked Questions

What's the difference between this mount and the STS680-2UCM3?
The STS680-1UCM3 includes one ACC-UCM3 component plate for storing a single piece of equipment behind the display; the STS680-2UCM3 includes two plates. See STS680-2UCM3 if the room needs to store two components.

Can one installer hang this mount without help?
Yes, the Hook-and-Hang feature is designed to let a single technician lift and secure the display onto the wall bracket without a second person.

Is this mount suitable for recessed wall boxes?
Yes, it's designed as a solution for recessed wall installations as well as standard stud-mounted applications.

What size and weight of display does it support?
49" to 120"+ displays up to 250 lb, with a VESA range from 200x100mm to 1000x400mm.

Does the mount allow rear access for servicing cabling after installation?
Yes, the scissor arm extends from 1.8" to 12.8" from the wall to provide full rear access without removing the display.

What's the warranty on the STS680-1UCM3?
Lifetime limited warranty, with UL, TAA, and RoHS compliance.

Can Creation Networks integrate this mount into a video conferencing room build?
Yes. Creation Networks provides mounting, VC codec integration, cabling, and commissioning as part of complete conference room AV deployments nationwide.
