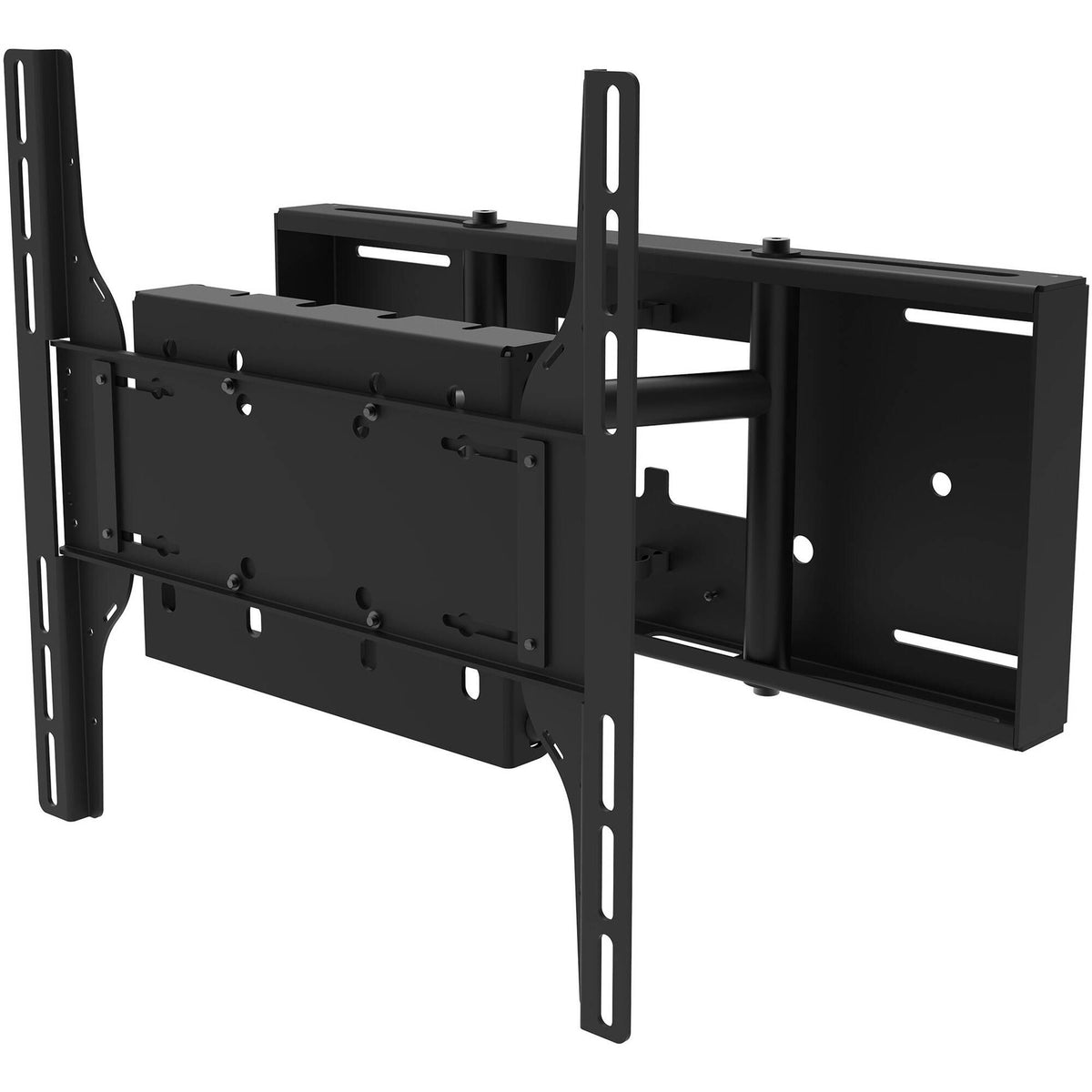

Peerless-AV SP850-UNM – SmartMount Pull-Out Pivot Wall Mount 49-65in

What is the Peerless-AV SP850-UNM SmartMount pull-out pivot wall mount?

The Peerless-AV SP850-UNM is a universal pull-out pivot wall mount sized for 49" to 65" commercial displays. It gives integrators a flush wall mount for daily operation with the ability to pull the display out and pivot it for rear access to HDMI, network, and power connections. This pull-out pivot TV wall mount is a common spec for conference rooms and lobby displays where a low-profile mount is required but service access still has to be quick. It supports both landscape and portrait orientation and up to 150 lb, covering the majority of commercial 4K displays in this size range.

What does the Peerless-AV SP850-UNM do?

In its closed position the SP850-UNM sits 2.73" off the wall, essentially flush-mount for day-to-day viewing. When a technician needs to service the display, it pulls out to 11.18" and pivots up to 90° total (45° in each direction), opening full access to the rear of the panel without taking it off the wall. Tilt is adjustable at 0°, 5°, or 10°, with ±1° of post-installation roll to correct for a wall that isn't perfectly level — a common issue on retrofit installs. The mount supports both landscape and portrait display orientation, which matters for digital signage and wayfinding deployments as well as standard conference room use. Steel construction with a TGIC powder-coated black finish keeps the mount durable under repeated adjustment, and the LockKey installation brace with security screws adds tamper resistance for public-facing spaces. Installation works on 16" wood studs, concrete, or cinder block. Because the SP850-UNM shares its adaptor plate design with the rest of the Peerless-AV SmartMount line, integrators can standardize hardware across a multi-display project without training installers on a different mount for every panel size.

Key Features

• Pull-out pivot access — extends to 11.18" and pivots 90° total for full rear-panel access without removing the display from the wall.
• Landscape or portrait orientation — supports both mounting orientations for standard displays and digital signage deployments.
• 150 lb weight capacity — rated for large-format 49"-65" commercial displays.
• IncreLok tilt with roll leveling — 0°, 5°, 10° tilt positions and ±1° roll adjustment after install.
• LockKey security brace — adds tamper resistance with security screws for public and semi-public spaces.
• Universal VESA compatibility — accepts mounting patterns up to 400 x 400mm.
• Multi-surface installation — mounts to 16" wood studs, concrete, or cinder block.
• 5-year limited warranty — with RoHS, TAA, and VESA compliance for institutional procurement.

Typical Applications

• Conference rooms and huddle rooms
• Boardrooms
• Commercial meeting spaces
• Government spaces
• Multi-purpose rooms

Technical Specifications

Frequently Asked Questions

What display sizes fit the SP850-UNM?
The mount is rated for 49" to 65" commercial displays up to 150 lb with VESA patterns up to 400 x 400mm.

Can this mount be used for portrait-orientation digital signage?
Yes. The SP850-UNM supports both landscape and portrait mounting orientation, making it suitable for wayfinding and portrait signage displays as well as conference room use.

How does the pivot function help with rear-panel service access?
The mount extends to 11.18" from the wall and pivots up to 90° total, allowing a technician to reach HDMI, network, and power connections on the back of the display without dismounting it.

Does the SP850-UNM include security hardware?
Yes, it includes a LockKey installation brace and security screws, which is useful in lobbies, common areas, or any semi-public space where tamper resistance matters.

Is this compatible with the larger SP850-UNL for a mixed-size room standard?
Both mounts share the same SmartMount pull-out pivot design and adaptor plate architecture, so a project can standardize on the family across different display sizes. See the SP850-UNL for larger displays.

What is the warranty?
Peerless-AV covers the SP850-UNM with a 5-year limited warranty, and it is RoHS, TAA, and VESA compliant.

What wall types does the SP850-UNM support?
It installs to 16" wood studs, poured concrete, or cinder block with the included hardware kit; assembly is required.
