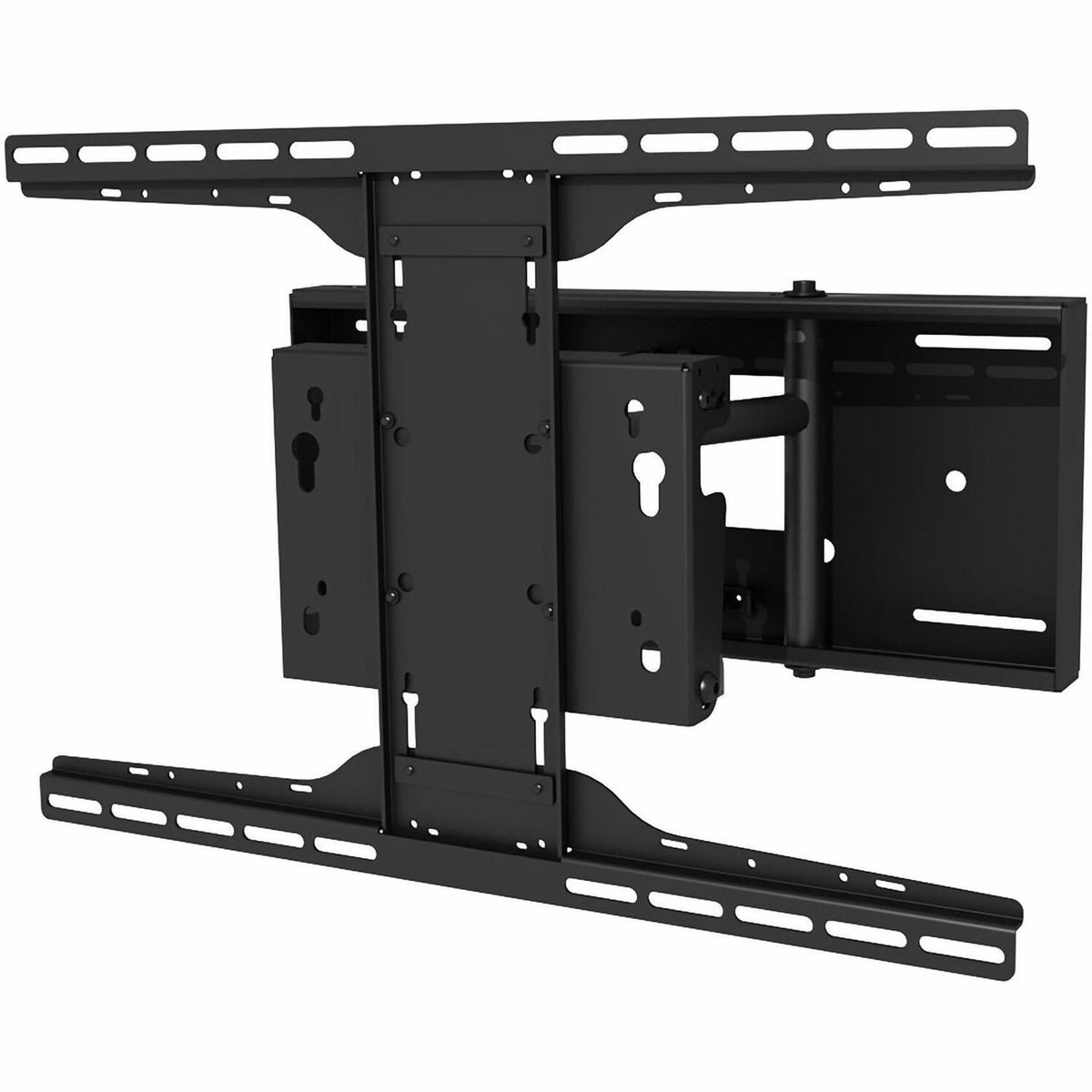

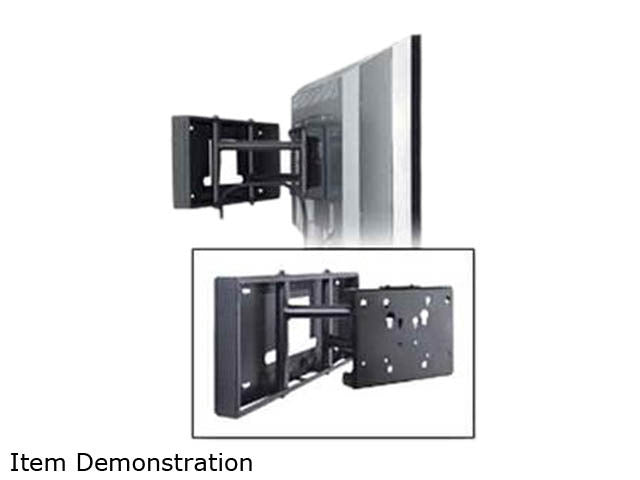

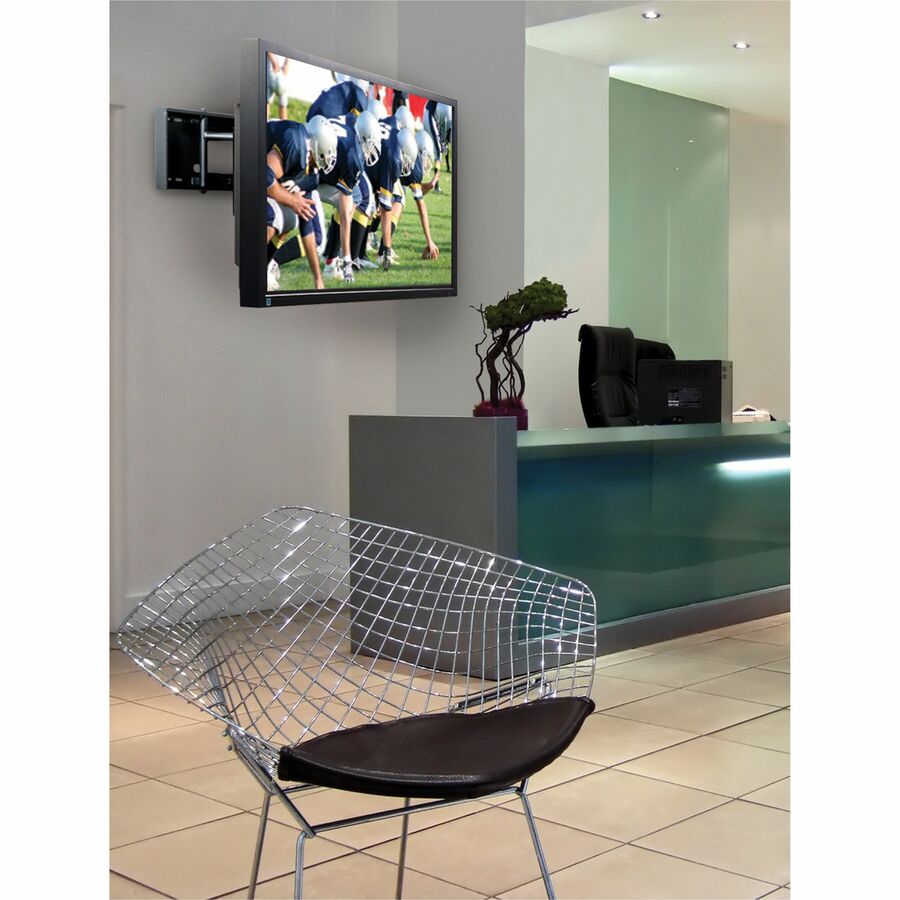

Peerless-AV SP850-UNL – SmartMount Pull-Out Pivot Wall Mount 32-80in

What is the Peerless-AV SP850-UNL SmartMount pull-out pivot wall mount?

The Peerless-AV SP850-UNL is a universal pull-out pivot wall mount built for 32" to 80" commercial displays. It is the mount of choice when a room needs a flush, near-flat wall mount for normal operation but still requires full access to rear inputs, HDMI switchers, or media players without pulling the display off the wall. Integrators spec the SP850-UNL for conference rooms, lobbies, and digital signage installs where a low-profile TV wall mount has to double as a pull-out mount for cable management and service access. It supports VESA patterns up to 600 x 400mm and up to 150 lb, covering the vast majority of commercial flat panel displays in this size class.

What does the Peerless-AV SP850-UNL do?

The SP850-UNL sits nearly flush to the wall in its closed position, then pulls straight out and pivots up to 45° in either direction so a technician can reach the back of the display for HDMI, power, and control wiring. IncreLok tilt locks the display at 0°, 5°, or 10°, and a ±1° roll adjustment lets installers level a panel after it is already on the wall — a detail that matters on uneven studs or masonry. The universal adaptor plate accepts both 100 x 100mm and 200 x 100mm VESA patterns and extends to accommodate displays up to 600 x 400mm, so one SKU covers a wide range of commercial displays without a separate bracket for every panel. A built-in cable management channel routes HDMI, network, and power cabling behind the arm, keeping the installation clean for a client-facing space. The mount installs to 16" wood studs, concrete, or cinder block, and ships with a wall assembly, installation tool, cable sleeve, and fastener pack, which keeps a rack-mount pull-out TV wall mount install to a single technician in most cases. Because it holds up to 150 lb, the SP850-UNL is appropriate for both flat panel LCDs and heavier interactive or touch displays in the 55"-80" range. The TGIC powder-coated steel construction and UL listing make it suitable for corporate, education, and government deployments where product certification is part of the spec.

Key Features

• Pull-out pivot design — the display pulls out 2.73" to 11.18" from the wall and pivots ±45°, giving full rear access for cabling and service without dismounting the panel.
• Universal VESA adaptor plate — supports 100 x 100mm and 200 x 100mm VESA patterns and displays up to 600 x 400mm, reducing SKU proliferation across a project.
• IncreLok tilt with post-install leveling — 0°, 5°, and 10° tilt positions plus ±1° roll correct for uneven wall conditions after the mount is installed.
• 150 lb weight capacity — rated for large-format commercial and interactive displays up to 80".
• Integrated cable management — routes and conceals HDMI, network, and power cabling for a finished appearance in client-facing spaces.
• Multi-surface installation — mounts to 16" wood studs, concrete, or cinder block with the included hardware kit.
• 5-year limited warranty — backed by UL listing, RoHS compliance, and TAA compliance for government and institutional procurement.

Typical Applications

• Conference rooms and huddle rooms
• Boardrooms
• Commercial meeting spaces
• Government spaces
• Training rooms
• Multi-purpose rooms

Technical Specifications

Frequently Asked Questions

What display sizes does the SP850-UNL support?
It supports commercial flat panel displays from 32" to 80" with VESA patterns from 100 x 100mm up to 600 x 400mm, provided the display is within the 150 lb weight limit.

Can one technician install the SP850-UNL alone?
Yes. The mount ships with a wall assembly, installation tool, cable sleeve, and fastener pack designed for single-installer setup on wood stud, concrete, or cinder block walls.

How far does the display pull out from the wall for service access?
The pull-out pivot mechanism extends from 2.73" (closed) to 11.18" from the wall, and pivots ±45° so a technician can access the rear of the display for HDMI or control wiring without removing it.

Does the SP850-UNL work with other Peerless-AV mounts in a multi-room deployment?
Yes. It shares the SmartMount universal adaptor plate system used across Peerless-AV's commercial mount line, which simplifies standardizing hardware across a multi-room project. Browse the full Peerless-AV lineup on creationnetworks.net.

What is the warranty on the SP850-UNL?
Peerless-AV backs the SP850-UNL with a 5-year limited warranty, and the mount is UL Listed, RoHS compliant, and TAA compliant for government and institutional purchasing.

Is the SP850-UNL suitable for interactive or touch displays?
Yes, provided the display's weight is within the 150 lb rating and its VESA pattern falls within the supported range. The pull-out pivot function is particularly useful for touch displays that need periodic rear access for AV switchers or OPS compute modules.

Does Creation Networks provide installation for this mount?
Creation Networks provides nationwide installation and AV integration services alongside equipment sales, so this mount can be procured and installed as part of a single project scope.
