Peerless-AV SF680P-HUB2 – Flat Wall Mount for 85in Surface Hub 2S/3

What is the Peerless-AV SF680P-HUB2 flat wall mount?

The Peerless-AV SF680P-HUB2 is a purpose-built flat wall mount for the 85" Microsoft Surface Hub 2S and Surface Hub 3. It is designed around the 600 x 600mm VESA pattern and mounting hardware specific to the Surface Hub product line, making it the correct mount to specify rather than a generic universal TV wall mount when deploying an 85" Surface Hub for collaboration or huddle room use. Auto-latching adaptor rails lock the display securely in place during installation, and the mount supports up to 350 lb, well above the weight of the Surface Hub unit itself for a wide safety margin. This is the standard mount for IT teams standardizing Microsoft Teams Rooms and interactive whiteboard deployments around the 85" Surface Hub.

What does the Peerless-AV SF680P-HUB2 do?

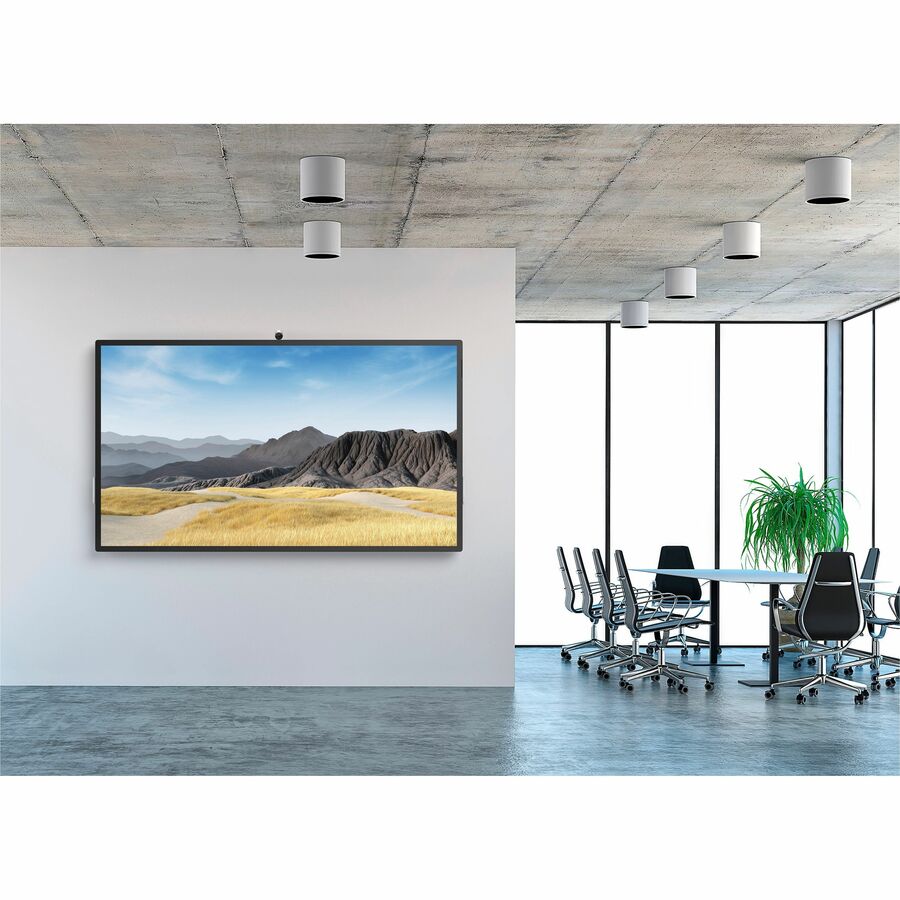

The SF680P-HUB2 holds the 85" Surface Hub 2S/3 flat against the wall at just 1.73" of clearance, giving the collaboration display a near-flush, low-profile appearance appropriate for a boardroom or all-hands space. Auto-latching adaptor rails engage the Surface Hub's mounting points and lock the display in place during hang, which reduces install risk on a display of this size and weight compared to a standard bracket-and-bolt approach. Built-in kickstands manage cabling behind the panel, and the mount allows 19.25" of lateral adjustment plus 1" of vertical adjustment after installation, so the display can be centered precisely on a wall even when stud or conduit locations don't line up perfectly with the intended layout. Installation is tool-free at the display attachment point, which speeds up deployment on a large panel that two technicians typically handle together. The mount includes custom spacers and bolts sized for the Surface Hub 2S compute module clearance, addressing a common fitment issue when a generic VESA mount is used instead. With a 350 lb capacity and lifetime limited warranty, the SF680P-HUB2 is built for permanent, high-use collaboration spaces rather than temporary installs.

Key Features

• Purpose-built for the 85" Surface Hub 2S/3 — matches the 600 x 600mm VESA pattern and compute module clearance specific to the Surface Hub line.
• Auto-latching adaptor rails — securely lock the display during installation, reducing risk when hanging an 85" collaboration panel.
• 350 lb weight capacity — provides a wide safety margin above the Surface Hub's actual weight.
• 1.73" wall clearance — keeps the display nearly flush to the wall for a clean boardroom appearance.
• 19.25" lateral and 1" vertical adjustment — allows precise post-installation centering regardless of stud location.
• Tool-free display attachment — speeds installation for a large-format two-person lift.
• Built-in kickstands for cable routing — keeps power and data cabling organized behind the panel.
• Lifetime limited warranty — with TAA compliance and RoHS certification for institutional procurement.

Typical Applications

• Boardrooms
• Conference rooms
• All-hands rooms
• Training rooms
• Government spaces

Technical Specifications

Frequently Asked Questions

Is the SF680P-HUB2 compatible with the standard 85" Surface Hub 2S and the newer Surface Hub 3?

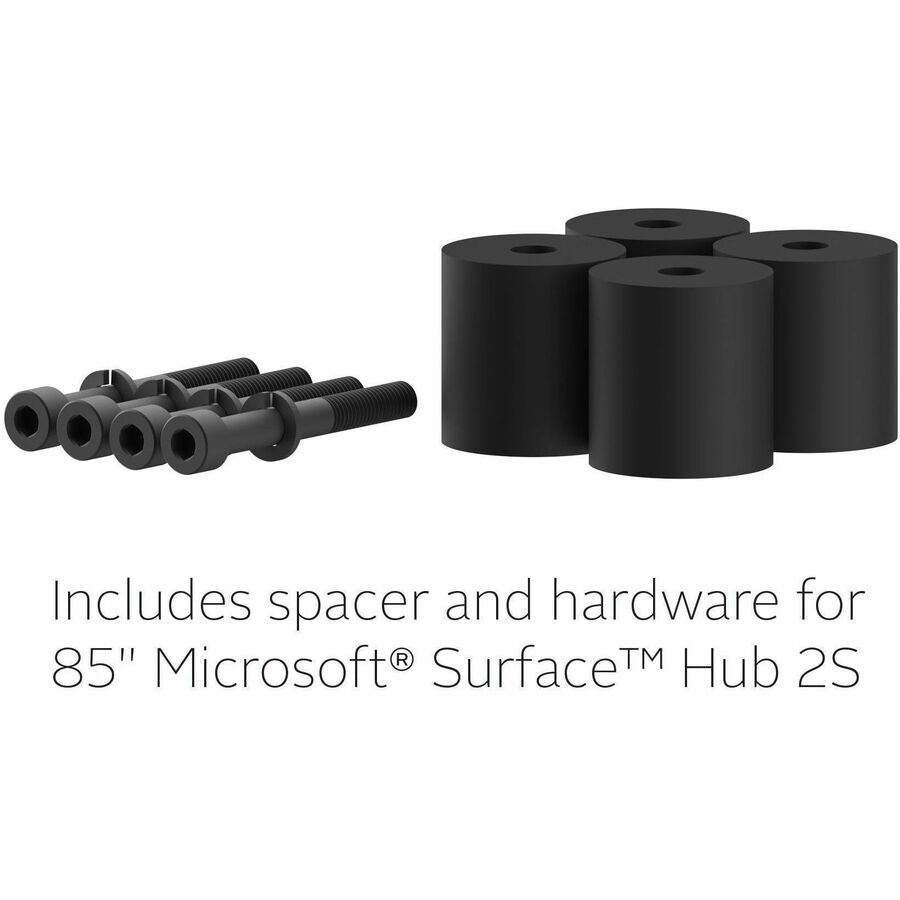

Yes, the mount is engineered for both the Surface Hub 2S and Surface Hub 3 at the 85" size, including custom spacers and bolts for the compute module clearance on the 2S.

Can this mount be used with a generic 85" commercial display instead of the Surface Hub?
No. It is purpose-built for the Surface Hub's specific mounting hardware and 600 x 600mm VESA pattern and is not intended as a universal 85" TV wall mount.

How much wall clearance does the mount require?
Just 1.73" (44mm), keeping the 85" Surface Hub nearly flush to the wall.

Does installation require special tools?
The display attachment is tool-free once the wall bracket is installed, though the wall bracket installation itself requires standard mounting hardware and typically two installers given the display's size and weight.

What is the weight capacity relative to the Surface Hub's actual weight?
The mount is rated to 350 lb, providing a significant safety margin above the Surface Hub 2S/3's actual shipping weight.

What is the warranty on the SF680P-HUB2?
Peerless-AV backs this mount with a lifetime limited warranty.

Does Creation Networks sell the Surface Hub alongside this mount?
Creation Networks supplies both Microsoft Teams Rooms hardware and Peerless-AV mounting infrastructure, and can scope the full collaboration room deployment together. See the SF640-HUB2 for the 50" Surface Hub companion mount.
