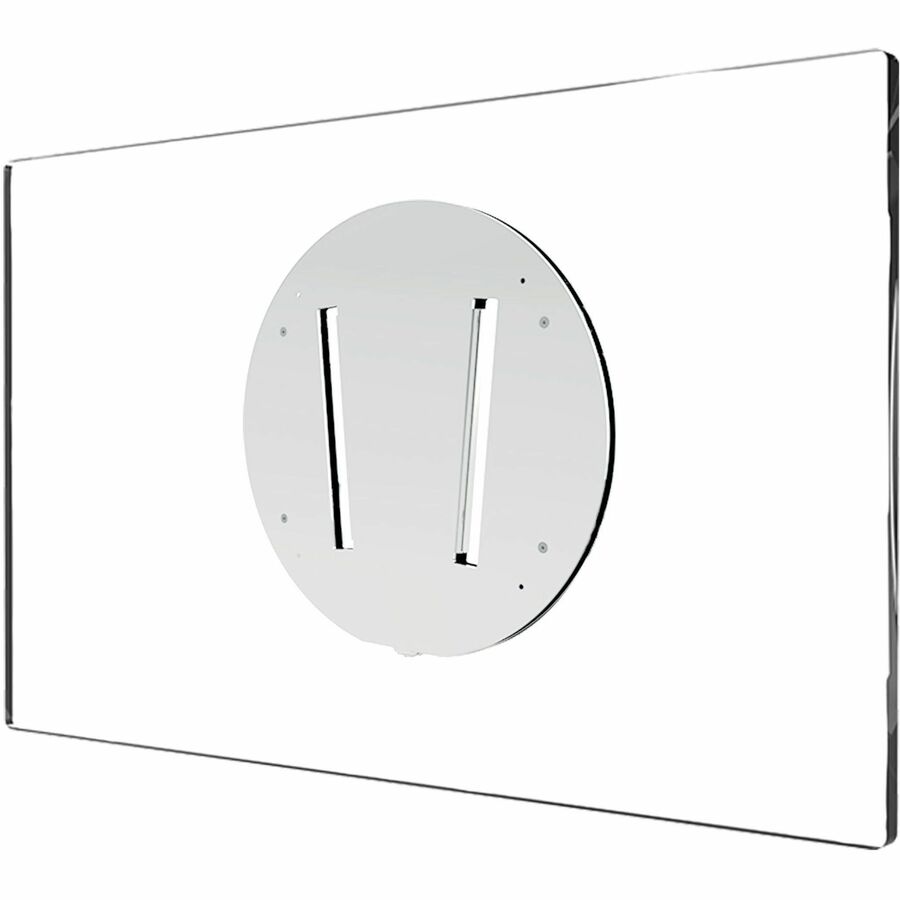

Peerless-AV SF640-HUB2 – Flat Wall Mount for 50in Surface Hub 2S/3

What is the Peerless-AV SF640-HUB2 flat wall mount?

The Peerless-AV SF640-HUB2 is a flat wall mount purpose-built for the 50" Microsoft Surface Hub 2S and Surface Hub 3. It matches the Surface Hub's 350 x 350mm VESA mounting pattern and hook-and-hang cartridge system, making it the correct hardware to specify instead of a generic 50" TV wall mount when deploying a 50" Surface Hub for Teams Rooms or huddle room collaboration. The mount holds the display 3.52" off the wall and meets ADA wall-clearance standards, which matters for government, healthcare, and education projects with accessibility requirements. It is rated to 80 lb, well above the Surface Hub's actual weight.

What does the Peerless-AV SF640-HUB2 do?

The SF640-HUB2 uses a hook-and-hang mounting cartridge that engages the Surface Hub's 350 x 350mm VESA pattern, letting the display cartridge be removed and reinstalled independently without taking the wall bracket down — useful when a Surface Hub needs to be serviced, swapped, or temporarily relocated. The mount sits at 3.52" wall clearance, which the manufacturer notes meets ADA compliance standards for accessible collaboration spaces. White powder-coated construction matches the Surface Hub's own finish rather than the black finish typical of most commercial display mounts, keeping the installed look consistent for huddle rooms and open collaboration areas where the mount is visible. Installation supports wood studs, concrete, cinder block, breeze block, and steel studs, covering the range of wall construction integrators run into across office retrofits and new-build projects. All mounting hardware is included in the kit. With an 80 lb rating against a much lighter actual display weight, the SF640-HUB2 gives a wide safety margin for a permanent huddle room or small conference room installation, and it carries a lifetime limited warranty.

Key Features

• Purpose-built for the 50" Surface Hub 2S/3 — matches the 350 x 350mm VESA pattern and hook-and-hang cartridge system.
• Removable display cartridge — allows the Surface Hub to be removed and reinstalled without taking down the wall bracket.
• ADA-compliant wall clearance — 3.52" of clearance meets accessibility standards for collaboration spaces.
• White powder-coated finish — matches the Surface Hub's own finish for a consistent installed appearance.
• 80 lb weight capacity — well above the Surface Hub's actual weight for a wide safety margin.
• Multi-surface installation — mounts to wood stud, concrete, cinder block, breeze block, or steel stud walls.
• Lifetime limited warranty — backed by Peerless-AV for long-term collaboration room deployment.

Typical Applications

• Huddle rooms
• Conference rooms
• Training rooms
• Government spaces
• Commercial meeting spaces

Technical Specifications

Frequently Asked Questions

Is the SF640-HUB2 compatible with both the Surface Hub 2S and Surface Hub 3?
Yes, it is designed for the 50" size across both the Surface Hub 2S and Surface Hub 3 models.

Can this mount be used with a standard 50" commercial TV instead?
It is purpose-built for the Surface Hub's 350 x 350mm VESA pattern and hook-and-hang cartridge system rather than as a universal 50" TV wall mount, so a generic display should use a standard SmartMount instead.

Does the mount meet ADA wall-clearance requirements?
Yes, at 3.52" of wall clearance the manufacturer notes it meets ADA compliance standards, which matters for government, education, and healthcare deployments.

Can the display be removed without taking the wall bracket down?
Yes. The hook-and-hang cartridge design allows the display to be removed and reinstalled independently of the wall bracket, simplifying service or replacement.

What wall types does the SF640-HUB2 support?
Wood stud, concrete, cinder block, breeze block, and steel stud walls, with all hardware included.

What is the warranty on the SF640-HUB2?
Peerless-AV backs the SF640-HUB2 with a lifetime limited warranty.

Does Creation Networks offer the 85" Surface Hub mount as well?
Yes, see the SF680P-HUB2 for the 85" Surface Hub 2S/3 companion mount.
