Peerless-AV IB14X9-AC-W – In-Wall Box with Surge Protector

What is the Peerless-AV IB14X9-AC-W in-wall box?

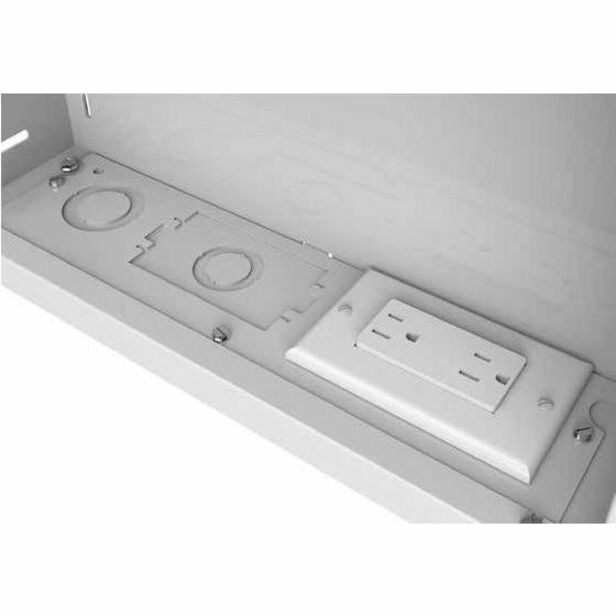

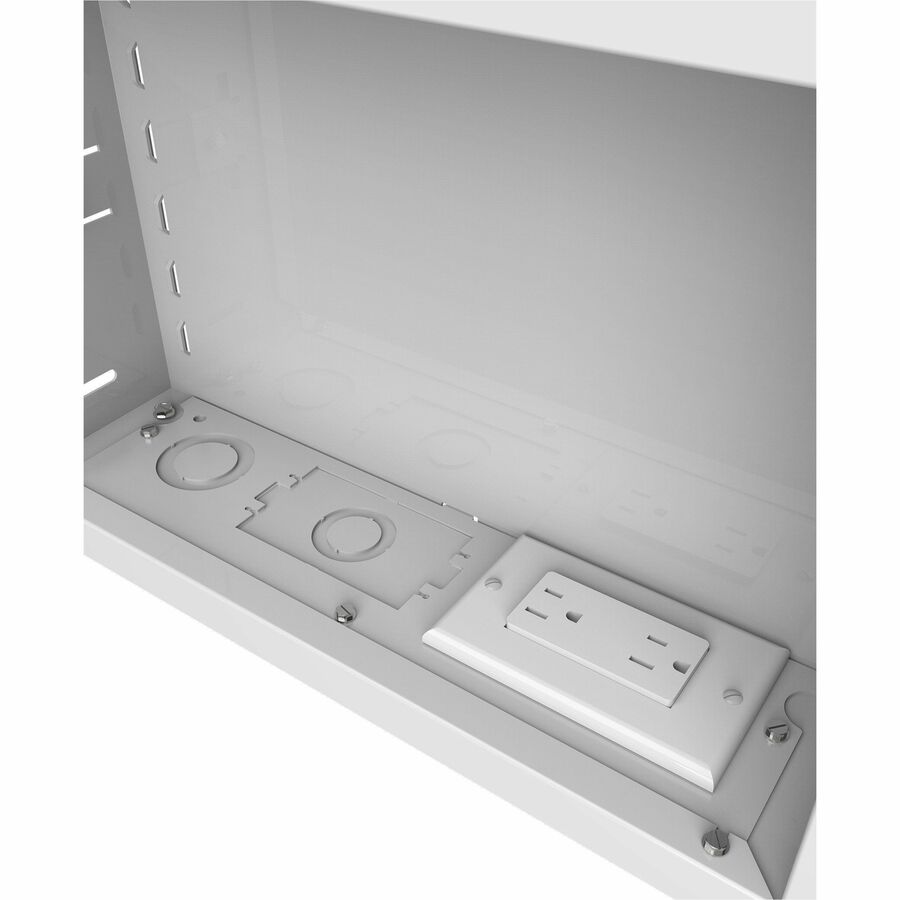

The Peerless-AV IB14X9-AC-W is a 14"x9" in-wall box built for recessed power and AV component installation behind flat panel displays and digital signage. It is the smaller-footprint companion to Peerless-AV's 14x14 in-wall box line, sized for locations where a full recessed AV closet isn't needed but a clean cable pass-through and protected power connection still are. The AC-W designation means this unit ships with an integrated duplex surge protector, so integrators get power protection and cable management in a single recessed enclosure. It's a standard spec item on commercial TV mount installations, conference room displays, and digital signage runs where AV cable management and in-wall power routing keep the wall finish clean.

What does the Peerless-AV IB14X9-AC-W do?

This in-wall box recesses into a standard wall cavity between studs, creating a protected space for HDMI, network, and power cabling to route from a source device or media player up to a wall-mounted display without any visible conduit or exposed low-voltage wiring. The duplex surge protector built into the AC-W model gives the display and any rack-mount or shelf-mount AV components at that location a protected power drop, which matters on commercial installs where a shared electrical panel and other building loads can introduce transient spikes. Because the unit is designed around the same 14x9 footprint as Peerless-AV's broader in-wall box family, it installs using the same drywall clamp and stud-mount hardware integrators already carry for the 14x14 version, which simplifies stocking on multi-room jobs. The white scratch-resistant fused-epoxy finish blends into painted drywall so the unit reads as a finished wall plate rather than an exposed junction box once trim-out is complete. It supports the practical reality of commercial AV installation: a wall-mounted display needs both a data path and a protected power source at the mount point, and running both through a single recessed box avoids a second low-voltage box and separate outlet. This makes the IB14X9-AC-W a common spec item for conference room displays, huddle room screens, lobby digital signage, and any application where an AV mount is going into finished drywall and cable management needs to stay behind the wall. Integrators typically install it during rough-in, before drywall closes up, then complete the display mount and cable dress once the wall is finished.

Key Features

• Integrated duplex surge protector — the AC-W model includes a built-in surge-protected outlet so the display and connected AV gear at the mount point get protected power without a separate strip.
• 14"x9" recessed footprint — sized for locations where a full 14x14 in-wall box isn't necessary, keeping the wall opening as small as the job allows.
• Scratch-resistant fused-epoxy white finish — matches standard commercial wall trim so the box reads as a finished cover plate, not exposed hardware.
• Drywall clamp mounting — installs into standard drywall cavities without needing a stud directly behind the cutout.
• Concealed cable routing — keeps HDMI, network, and low-voltage cabling behind the wall for a clean, code-conscious installation.

Where is the Peerless-AV IB14X9-AC-W typically used?

• Conference room
• Huddle room
• Boardroom
• Commercial meeting space
• Multi-purpose room
• Government space

Technical Specifications

Frequently Asked Questions

Does the IB14X9-AC-W require a stud behind the wall opening?
No. It uses drywall clamps for installation into a standard cavity and does not require a stud directly behind the cutout, though installers should still confirm the cavity is clear of existing wiring or blocking before cutting.

Is the surge protector rated for the display and a source device at the same time?
The integrated duplex outlet is designed to power the display and one additional low-draw AV component, such as a media player or streaming device, at the same recessed location. For higher-draw components like an amplifier or multiple rack devices, route power separately.

Can this be used with any wall mount, or only Peerless-AV mounts?
The in-wall box is mount-agnostic — it manages power and cable routing behind the wall and works with any commercial TV mount, including Peerless-AV's own full-motion and tilt mounts.

What's the difference between this and the IB14X14 series?
The IB14X9-AC-W uses a smaller 14"x9" footprint versus the 14"x14" box, making it a better fit where wall space or stud spacing is tighter but in-wall power and cable management are still required.

What warranty does Peerless-AV provide?
Peerless-AV backs its in-wall box line with a limited warranty consistent with its mounting hardware range; contact Creation Networks for the current warranty term on this SKU.

Does Creation Networks provide installation for in-wall AV boxes like this one?
Yes. Creation Networks handles rough-in placement, low-voltage cable routing, and final display mount installation as part of full-service commercial AV integration projects nationwide.
