Peerless-AV IB14X14-B – 14x14 In-Wall Box, Black

What is the Peerless-AV IB14X14-B?

The Peerless-AV IB14X14-B is a 14"x14" in-wall box for recessed power and AV component installation, finished in black for applications where a white cover plate would stand out against dark trim or a black display bezel. It gives integrators a larger recessed cavity than the 14x9 box, sized for locations where more cable slack, an additional low-voltage device, or a bigger component panel needs to sit behind the wall. This is a standard in-wall AV box for commercial TV mount installs, digital signage runs, and conference room displays where clean cable management and a finished black wall plate matter for the room's aesthetic.

What does the Peerless-AV IB14X14-B do?

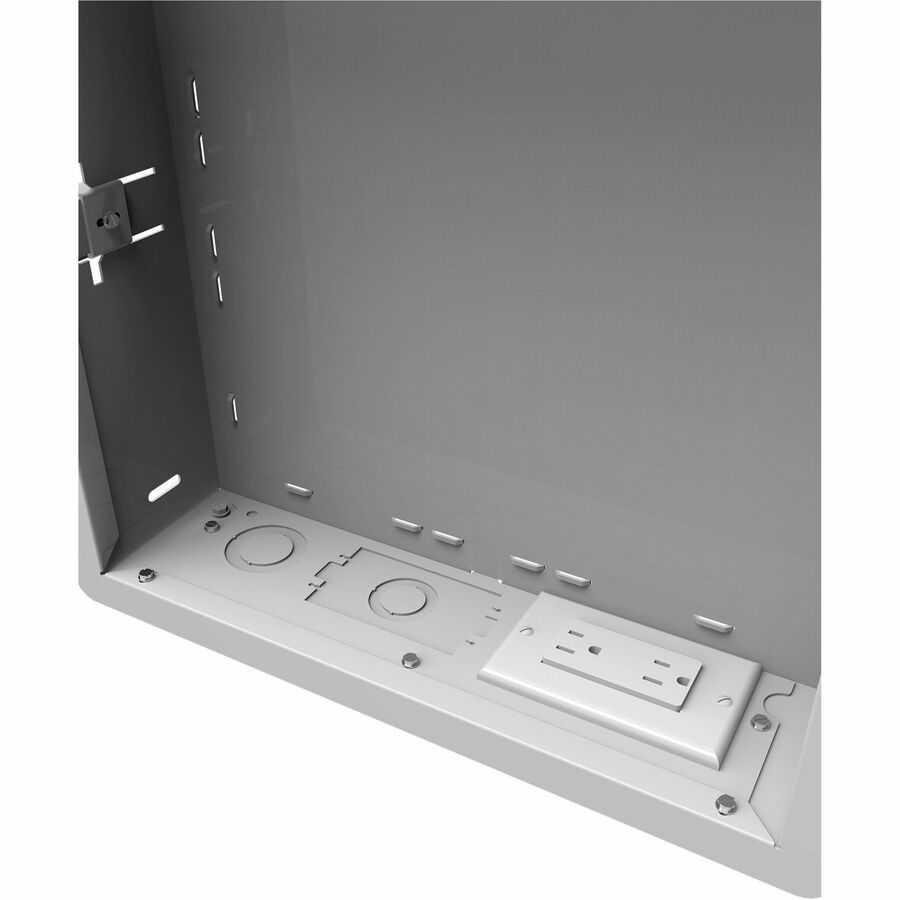

The IB14X14-B recesses into a standard wall cavity to create a protected, code-conscious pathway for HDMI, network, and low-voltage cabling between a source device and a wall-mounted display or digital signage panel. Its 14.4" x 14.4" cutout gives installers meaningfully more working room than the 14x9 box, which matters when routing multiple cables, coiling extra service loop, or mounting a small AV component panel inside the cavity. The box uses drywall clamps and removable mounting plates for installation, along with wood stud hardware, so it fits standard commercial drywall construction without requiring a stud directly behind the cutout. It's also compatible with a RACO 420 gang box or equivalent for jobs that need a standard electrical box reference point. The scratch-resistant fused-epoxy black finish holds up to daily wear better than painted drywall and blends cleanly with black display bezels, black wall mounts, and dark commercial interiors — a common spec choice over the white IB14X14-W in boardrooms, media rooms, and any space using a darker color palette. The box is UL 2416 listed and carries Peerless-AV's 5-year limited warranty, and it accepts the optional IB14X14C-W cover accessory and IBMP component panel for jobs that need additional AV component mounting inside the wall cavity. For AV integrators standardizing on a single in-wall box footprint across a job, the 14x14 series covers displays needing more cable and component room than the 14x9 box provides.

Key Features

• 14"x14" recessed cavity — larger cutout than the 14x9 box, giving installers more room for cable slack and component panels.
• Black scratch-resistant fused-epoxy finish — matches dark display bezels and black mount hardware for a clean, finished look.
• Drywall clamp installation — mounts into standard drywall without requiring a stud directly behind the cutout.
• RACO 420 gang box compatibility — works with standard electrical box references on new-construction or retrofit jobs.
• UL 2416 listed — meets recognized safety standards for low-voltage in-wall enclosures.
• Accepts optional cover and component panel accessories — IB14X14C-W cover and IBMP component panel extend the box for additional AV hardware.
