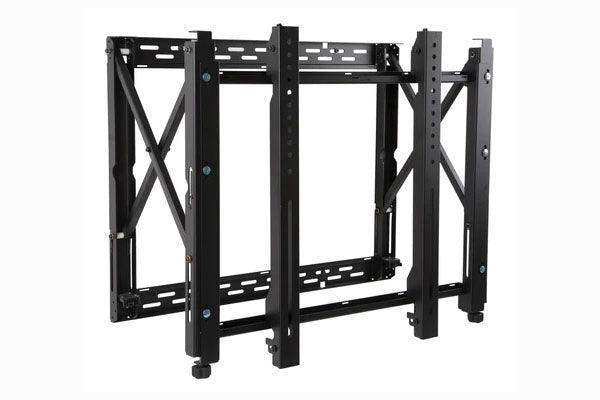

Peerless-AV DS-VW795-QR – Full-Service Video Wall Mount, Quick Release

Product Overview

The Peerless-AV DS-VW795-QR is a large-format full-service video wall mount with quick release for 65" to 98" displays. Built for recessed video wall applications, this video wall mount with quick release lets integrators articulate a heavy display off the wall by hand for service access, and is rated to support up to 225 lb. It handles both landscape and portrait orientations for flexible large-display configurations.

Product Description

The DS-VW795-QR is a SmartMount full-service video wall mount engineered for large-format displays in recessed walls. Its quick-release mechanism extends the display up to 16.2" from the wall with a gentle press on the front, providing direct access to cabling and the rear of the panel for service. The carriage extension force is adjustable to match the weight of the display so the quick release activates with gentle pressure, and a locking screw can disable the release to prevent unintentional pop-outs on heavy panels.

Tool-less micro-adjustment at eight points lets integrators align adjacent displays into a seamless video wall and compensate for uneven walls, while reusable custom wall-plate spacers remove on-site measurement guesswork. Integrated cable-management tie-backs simplify display-to-display cabling, and the modular design supports unlimited configurations in landscape or portrait. For thinner or smaller-format builds, compare the DS-VW755S thin mount or the DS-VW775-QR, or browse the full Peerless-AV collection.

Key Features

• Quick-Release Pop-Out — Extends the display up to 16.2" from the wall with a press on the front for service access in recessed walls.
• Adjustable Extension Force — Tunes the carriage to the display weight so the release activates with gentle, controlled force.
• Lockable Release — A locking screw disables the quick release to prevent unintentional pop-outs on heavy displays.
• 225 lb Load Rating — Supports large-format 65" to 98" commercial displays.
• Tool-Less Micro-Adjustment — Eight points of adjustment align adjacent displays into a seamless video wall.
• Landscape or Portrait — Modular design supports unlimited video wall configurations in either orientation.
• Integrated Cable Management — Tie-backs keep display-to-display cabling clean.
• Reusable Wall-Plate Spacers — Eliminate on-site measurement guesswork to speed installation.

Typical Applications

• Corporate Lobbies and Commercial Meeting Spaces — Large-format seamless video walls for branding and information.
• Broadcast Studios — Large recessed video wall backdrops with serviceable access.
• Control and Command Centers — High-capacity display walls requiring reliable mounting and service.
• Auditoriums and Government Spaces — Large public-venue video wall installations.
• Retail Flagships — Statement video walls using large-format panels.

Technical Specifications

Specifications sourced from Peerless-AV. Confirm your display's VESA pattern and weight before installation.

Frequently Asked Questions

What displays does the DS-VW795-QR support?
It is designed for large-format 65" to 98" displays up to 225 lb, with VESA patterns from 200 x 200 to 600 x 600 mm.

How far does the display extend for service?
The quick-release carriage extends the display up to 16.2" from the wall for direct access to cabling and the rear of the panel.

How does it handle heavy displays safely?
The carriage extension force is adjustable to the display weight, and the quick release can be disabled with a locking screw to prevent unintentional pop-outs.

Can it build a seamless large-format video wall?
Yes. Tool-less micro-adjustment at eight points aligns adjacent displays and compensates for uneven walls.

Does it support portrait orientation?
Yes. It accommodates landscape and portrait and is modular for unlimited configurations.

What warranty applies?
Peerless-AV provides a 5-year warranty. Contact Creation Networks for current warranty and support details.
