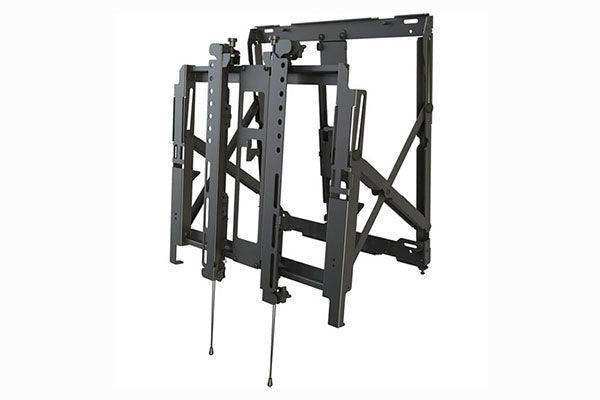

Peerless-AV DS-VW755S – Full-Service Thin Video Wall Mount
Product Overview
The Peerless-AV DS-VW755S is a full-service video wall mount built for thin, recessed installations of 46" to 65" displays. This SmartMount thin video wall mount with quick release lets integrators pop a display out from the wall for fast service access, making it well suited to seamless commercial video walls where depth and serviceability both matter. It supports landscape and portrait orientation and is rated for displays up to 80 lb.
Product Description
The DS-VW755S is a SmartMount full-service thin video wall mount engineered for recessed video wall applications where overall depth is a concern. Its quick-release mechanism lets an installer articulate a display off the wall with a gentle press on the front, and the release can be disabled with a locking screw to prevent unintentional pop-outs. The mount extends the display in a negative-tilt position for convenient access to the bottom of the panel during setup and service, which is what earns it the full-service designation.
Tool-less micro-adjustment at eight points lets integrators overcome uneven walls and align adjacent panels into a seamless video wall, while reusable custom wall-plate spacers remove on-site measurement guesswork to reduce installation time. Integrated cable-management tie-backs keep display-to-display cabling clean, and the modular design supports unlimited video wall configurations in both landscape and portrait. For deeper or supreme-service options, compare the DS-VW795-QR and DS-VW775, or browse the full Peerless-AV collection.
Key Features
- Quick-Release Mechanism — Articulates the display off the wall with a press on the front for fast service access in recessed walls.
- Lockable Release — A locking screw disables the quick release to prevent unintentional pop-outs.
- Tool-Less Micro-Adjustment — Eight points of adjustment align adjacent displays into a seamless video wall, even on uneven walls.
- Negative-Tilt Service Position — Extends the display in a negative tilt for access to the bottom of the panel during setup and maintenance.
- Integrated Cable Management — Tie-backs keep display-to-display cabling clean and professional.
- Landscape or Portrait — Modular design supports unlimited video wall configurations in either orientation.
- Reusable Wall-Plate Spacers — Eliminate on-site measurement guesswork to reduce installation time.
- 80 lb Load Rating — Supports 46" to 65" commercial displays within the VESA range.
Typical Applications
- Corporate Lobbies and Commercial Meeting Spaces — Seamless video walls for branding and information.
- Broadcast Studios — Recessed video wall backdrops with serviceable access.
- Control and Command Centers — Multi-display walls requiring reliable, serviceable mounting.
- Retail and Showrooms — Eye-level video walls for promotional content.
- Auditoriums and Government Spaces — Large-format video wall installations in public venues.
Technical Specifications
| Model | DS-VW755S |
| Type | Full-service thin video wall mount with quick release |
| Display Size | 46" to 65" |
| Maximum Load | 80 lb (36 kg) |
| VESA Pattern | 200 x 200 to 400 x 400 mm |
| Orientation | Landscape or portrait |
| Quick Release | Yes; disable-able with locking screw |
| Adjustment | Tool-less micro-adjustment at eight points |
| Service Position | Negative tilt for bottom access |
| Cable Management | Integrated tie-backs |
| ADA Compliance | When mounting displays 2" deep or less |
| Warranty | 5 years |
Specifications sourced from Peerless-AV. Confirm your display's VESA pattern, weight, and depth before installation.
Frequently Asked Questions
What displays does the DS-VW755S support?
It is designed for 46" to 65" commercial displays up to 80 lb, with VESA patterns from 200 x 200 to 400 x 400 mm.
How does the quick-release service access work?
Pressing the front of the display articulates it off the wall in a negative-tilt position for access to the bottom of the panel. The release can be disabled with a locking screw to prevent unintentional pop-outs.
Can it create a seamless video wall on an uneven wall?
Yes. Tool-less micro-adjustment at eight points lets integrators align adjacent displays and compensate for wall irregularities.
Does it support portrait video walls?
Yes. It accommodates both landscape and portrait orientation and is modular for unlimited configurations.
Is it suitable for ADA-compliant installations?
It provides ADA compliance when mounting displays measuring 2" deep or less. Confirm total assembly depth against your display.
What warranty applies?
Peerless-AV provides a 5-year warranty. Contact Creation Networks for current warranty and support details.
