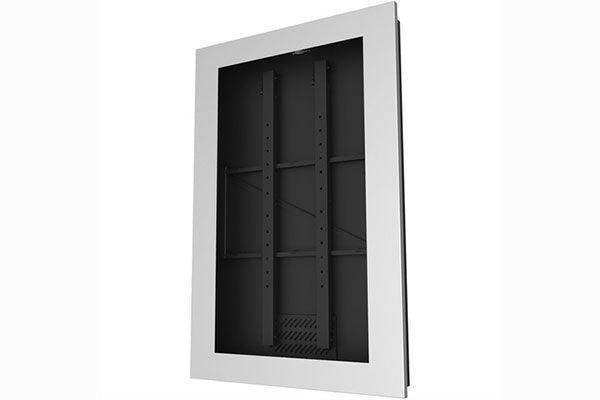

Peerless-AV KIP746-S – 46" Portrait In-Wall Kiosk Enclosure

Product Overview

The Peerless-AV KIP746-S is a portrait in-wall kiosk enclosure that integrates a 46" commercial display vertically into the wall for engaging digital signage. With a profile less than 1" thin at the wall face, it recesses into standard wood-stud construction so the screen reads as a built-in panel, making it well suited to indoor digital signage installation in retail, hospitality, and corporate environments. The ADA-compliant design conceals the media player and cabling while keeping the portrait display front and center. This is the portrait orientation of Peerless-AV's In-Wall Kiosk Enclosure line.

Product Description

The KIP746-S accepts 46" displays up to 3.10" (78mm) thick and supports VESA mounting patterns from 200 x 200 up to 400 x 600mm, covering most commercial-grade panels in this size class. An eight-way micro adjustment system positions the display for flush alignment inside the kiosk window, while a removable front cover and pull-out mount give the integrator straightforward access to the screen and internal components during installation and maintenance. A powerful, thermostat-controlled fan moves air through the enclosure so an internal media player and other electronics stay within operating temperature. The low-profile design extends just 1" (25mm) from the finished wall, meeting Americans with Disabilities Act clearance requirements for public corridors.

The front supports glass, acrylic, vinyl wraps, and custom color treatments, so the KIP746-S adapts to brand standards across vertical-format signage deployments. For landscape projects in the same display class, the Peerless-AV KIL746-S landscape in-wall kiosk is the matching option, and integrators standardizing a fleet can compare the KIP747-S and KIP748-S. Browse the full Peerless-AV collection for related mounts and signage hardware.

Key Features

• Portrait In-Wall Design — Recesses a 46" display vertically into standard wood-stud walls for a clean, built-in digital signage appearance.
• Slim ADA-Compliant Profile — Extends only 1" (25mm) from the wall to meet Americans with Disabilities Act clearance requirements in public corridors.
• Eight-Way Micro Adjustment — Provides vertical, horizontal, and depth adjustment to align the display flush within the kiosk window.
• Removable Front Cover and Pull-Out Mount — Allows easy installation and maintenance of the display and other internal components.
• Thermostat-Controlled Fan — Manages airflow into the enclosure to keep the display and electronics within their operating temperature range.
• Wide VESA Compatibility — Supports mounting patterns from 200 x 200 up to 400 x 600mm for broad commercial display compatibility.
• Customizable Front Treatment — Accepts glass, acrylic, vinyl wraps, and custom colors to match environment design or brand strategy.

Typical Applications

• Retail storefronts and vertical promotional signage
• Hotel lobbies, casinos, and hospitality wayfinding
• Corporate lobbies and commercial meeting spaces
• Entertainment venues, cinemas, and box-office areas
• Education and healthcare facility directories
• Transportation hubs and interactive wayfinding stations

Technical Specifications

Frequently Asked Questions

What size display does the KIP746-S fit?
It is designed for 46" commercial displays up to 3.10" (78mm) thick, mounted in portrait orientation.

What VESA patterns are supported?
The internal mount accepts patterns from 200 x 200 up to 400 x 600mm, covering most 46" commercial panels.

Is the enclosure ADA compliant?
Yes. The low-profile front extends only 1" (25mm) from the finished wall, meeting Americans with Disabilities Act clearance requirements for public spaces.

How are the display and media player serviced after installation?
The removable front cover and pull-out mount give technicians access to the display and internal electronics without removing the enclosure from the wall.

How does it handle heat from the display and media player?
A thermostat-controlled fan circulates air through the enclosure to keep components within their operating temperature range.

Can the front be customized for our brand?
Yes. The front supports glass, acrylic, vinyl wraps, and custom color treatments to match the environment or brand standards.

What does it ship with and what is the warranty?
It ships as a kiosk with display mounting hardware and is covered by a 5-year warranty on metal components and a 1-year warranty on electronic components.
