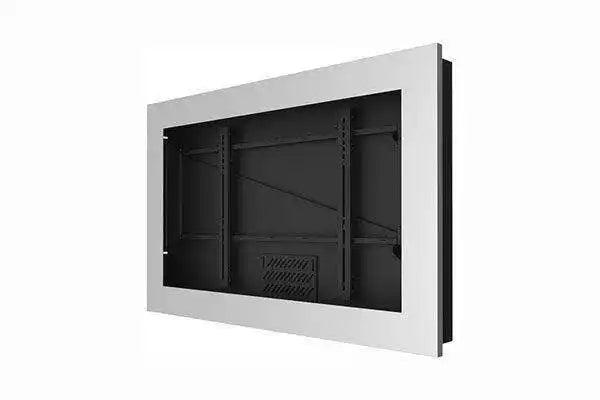

Peerless-AV KIL746-S – 46" Landscape In-Wall Kiosk Enclosure

Product Overview

The Peerless-AV KIL746-S is a landscape in-wall kiosk enclosure built to turn a 46" commercial display into a clean, integrated digital signage point. It recesses into standard wood-stud construction so the screen sits nearly flush with the wall, making it a practical choice for indoor digital signage installation in high-traffic public spaces. The slim, ADA-compliant profile and concealed media-player space let integrators deliver wayfinding, advertising, and interactive content without surface-mounted hardware. This is the landscape orientation of Peerless-AV's Wall Kiosk Enclosure line.

Product Description

The KIL746-S accepts 46" displays up to 2" (50mm) thick and supports VESA mounting patterns from 200 x 200 up to 600 x 400mm, covering most commercial-grade panels in this size class. A pull-out mount with eight-way tool-less adjustment lets the installer position the screen for flush alignment inside the kiosk window, while a hinged, locking front frame provides fast access for display service and enhanced security against tampering. Thermostat-controlled circulation fans manage airflow so media players, players, and other electronics housed inside stay within operating temperature. The enclosure extends just 3.97" (101mm) from the wall, meeting Americans with Disabilities Act clearance requirements for public corridors and lobbies.

Because the front surface supports glass, acrylic, vinyl wraps, and custom color treatments, the KIL746-S adapts to brand standards across retail, hospitality, and corporate deployments. For portrait-orientation projects, the matching Peerless-AV KIP746-S portrait in-wall kiosk covers the same 46" display class, and integrators sizing a fleet can compare the KIL747-S and KIL748-S. Browse the full Peerless-AV collection for related mounts and signage hardware.

Key Features

• Landscape In-Wall Design — Recesses into standard wood-stud walls so a 46" display sits nearly flush for a clean, built-in digital signage appearance.
• ADA-Compliant Profile — Extends only 3.97" (101mm) from the wall to meet Americans with Disabilities Act clearance requirements in public corridors.
• Eight-Way Tool-Less Adjustment — A pull-out mount adjusts vertically, horizontally, and in depth to align the display flush within the kiosk window without tools.
• Hinged Locking Frame — The secure front frame hinges open for fast installation and maintenance access while deterring unauthorized entry.
• Thermostat-Controlled Cooling — Circulation fans regulate airflow to keep the display and internal electronics within their operating temperature range.
• Wide VESA Compatibility — Supports mounting patterns from 200 x 200 up to 600 x 400mm for broad commercial display compatibility.
• Customizable Front Treatment — Accepts glass, acrylic, vinyl wraps, and custom colors to match environment design or brand strategy.

Typical Applications

• Retail storefronts and in-store promotional signage
• Hotel lobbies, casinos, and hospitality wayfinding
• Corporate lobbies and commercial meeting spaces
• Entertainment venues, cinemas, and box-office areas
• Education and healthcare facility directories
• Transportation hubs and interactive wayfinding stations

Technical Specifications

Frequently Asked Questions

What size display does the KIL746-S fit?
It is designed for 46" commercial displays up to 2" (50mm) thick, mounted in landscape orientation.

What VESA patterns are supported?
The internal mount accepts patterns from 200 x 200 up to 600 x 400mm, covering most 46" commercial panels.

Is the enclosure ADA compliant?
Yes. It extends only 3.97" (101mm) from the finished wall surface, meeting Americans with Disabilities Act clearance requirements for public spaces.

How are the display and media player serviced after installation?
The hinged, locking front frame opens and the pull-out mount extends so technicians can reach the display and internal electronics without removing the enclosure.

How does it handle heat from the display and media player?
Thermostat-controlled circulation fans move air through the enclosure to keep components within their operating temperature range.

Can the front be customized for our brand?
Yes. The front supports glass, acrylic, vinyl wraps, and custom color treatments to match the environment or brand standards.

What does it ship with and what is the warranty?
It ships as a kiosk with display mounting hardware and is covered by a 5-year warranty on metal components and a 1-year warranty on electronic components.
