Panasonic PT-TMW380U 3,800 Lumens, WXGA (1280 x 800), LCD Short-Throw Laser Projector

Panasonic SKU: PT-TMW380U
No reviews
Price:
$2,849.00

Description

From conference rooms to home theaters, the PT-TMW380U 3,800-Lumen WUXGA Short-Throw Laser 3LCD Projector from Panasonic can project a large and bright image to make presentations pop and movies more cinematic and engaging. The TMZ400U's laser light source can deliver 4000 lumens of brightness, making it ideal for dark to brightly lit spaces. The 3LCD system offers HD output at a wide 16:10 aspect ratio at sizes from 50 to 105". Thanks to the short 0.47 to 0.59:1 throw, you can conveniently place the projector close to the wall or (optional) screen. This narrows the distance, minimizing the chance of someone walking in front of the lens, and provides flexibility in your installation options.

 Image Correction Built-in automatic keystone correction adjusts images vertically by +/- 15°, and you have the option of manually adjusting your image horizontally by +/- 15°. Source Connectivity Dual HDMI and VGA ports give you a wide range of source options, such as a Blu-ray player, streaming device, or laptop. Additional Features
  • 360° installation
  • Up to 20,000-hour laser lifespan under normal brightness
  • One USB-A port for 5V/2A power output and support for an optional AJ-WM50 wireless module
  • 10W mono speaker built-in
  • Brightness of 3800 Lumens
  • WUXGA 1920 x 1200 Native Resolution
  • Short 0.47 to 0.59:1 Throw Ratio
  • 2 x HDMI & 2 x VGA Inputs
  • 50 to 105" Screen Size
  • Vertical & Horizontal Keystone
  • 360° Installation
  • Up to 20,000-Hour Normal Laser Lifespan
  • 10W Mono Speaker Built-In
  • Remote Control Included

Panasonic TMW380U Specs

 Image Display
Display System LCD
Native Chip Resolution 1920 x 1200 (WUXGA)
Supported Resolutions Minimum: VGA - 712 x 483 @ 60 Hz
Maximum: 4K UHD - 3840 x 2160 @ 30 Hz
Maximum Brightness 3800 Lumens
Aspect Ratio Native: 16:10
Supported: 16:9
Supported: 4:3
Dynamic Contrast Ratio 3,000,000:1
Scan Horizontal: 15.7 to 91.1 kHz
Vertical: 24 to 85 kHz
Lens
Focus Manual
Lens f/1.8 (f = 6.08 mm)
Throw Distance 1.48 - 14.96' / 0.45 - 4.56 m
Throw Ratio 0.43 to 0.54:1 (80" Screen Size @ 28.74" / .73 m)
Projection Size 50 - 105" / 1.3 - 2.7 m
Features
Keystone Correction Auto / Manual-Vertical: ± 15°
Manual-Horizontal: ± 15°
Supported HDR Input Formats None
Multi-Input Support (PIP/PBP) Not Specified by Manufacturer
Ceiling Mountable Yes
Built-In Speaker Yes (Mono)
Speaker Power 10W
Projection Tilt Option Yes
Remote Yes

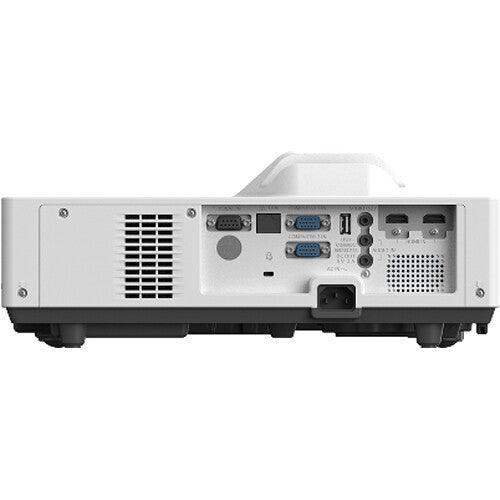

Input/Output Connectors
Inputs/Outputs 2 x HDMI Audio, Video Input
2 x DE-15/DB-15 (VGA) Video Input
2 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x DE-9/DB-9 (RS-232) Control Input
1 x RJ45 (Ethernet) Control, LAN Input/Output
HDCP Support Version 1.4
Hardware
Mobile App Compatible No
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility
Bluetooth None
General
Light Source Laser Phosphor
Expected Lamp Life Medium Brightness: 20,000 Hours
Low Brightness: 24,000 Hours
Fan Noise Medium Brightness: 35 dB
Low Brightness: 24 dB
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 240 W
Medium Brightness: 215 W
Low Brightness: 160 W
Standby Mode (Lamp Off): 0.5 W
Operating Altitude 2296' / 700 m
Operating Temperature 32 to 113°F / 0 to 45°C
Operating Humidity 20 to 80% (Non-Condensing)
Dimensions (W x H x D) 13.7 x 5.4 x 14.6" / 349.0 x 138.0 x 370.0 mm
Weight 10.8 lb / 4.9 kg
