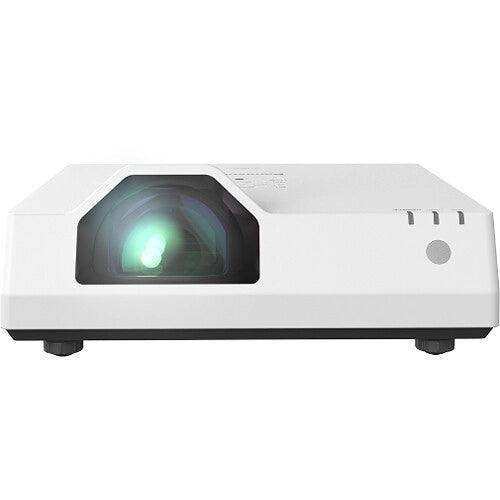

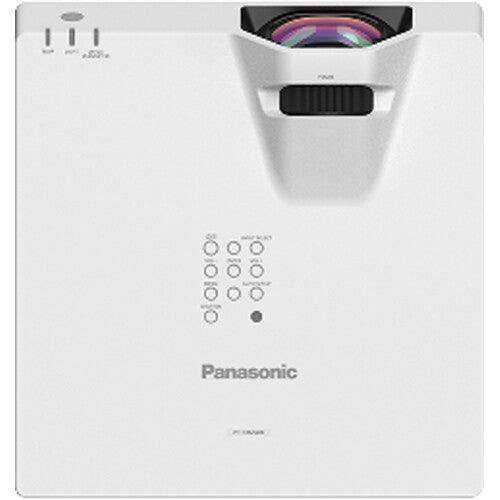

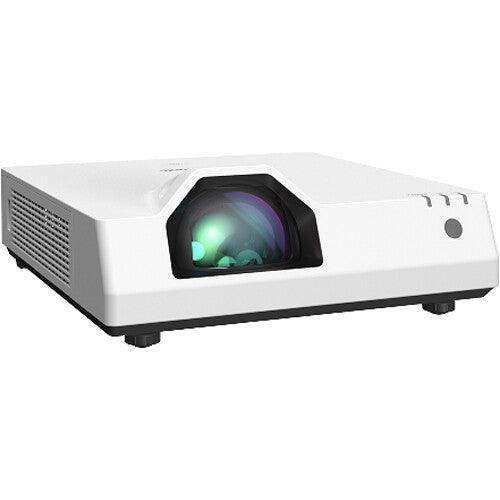

Panasonic PT-TMZ400U 4000 Lumens, WUXGA, Short Throw, Laser

Product Overview

The Panasonic PT-TMZ400U is a 4,000-lumen WUXGA short-throw laser projector for conference rooms, huddle spaces, and training rooms. Its 3LCD engine and laser light source project a large 50–105 inch image from close to the wall, making this short-throw laser projector practical where ceiling depth or walk-through traffic is a concern. A short 0.47–0.59:1 throw and 360° installation let integrators mount it in tight or unconventional positions. The compact chassis and long-life laser suit always-ready commercial meeting spaces.

Product Description

The PT-TMZ400U delivers 4,000 lumens at a native WUXGA (1,920 × 1,200) resolution with a 3,000,000:1 dynamic contrast ratio, holding readable images from dark to brightly lit rooms. The short throw places the projector close to the screen, narrowing the light path so presenters are less likely to cast shadows or be caught in glare. Built-in automatic vertical keystone correction (±15°) plus manual horizontal correction (±15°) speed alignment, and 360° installation supports ceiling, table, and angled mounting. Dual HDMI and dual VGA inputs connect laptops, players, and streaming devices, while RS-232 and RJ45 LAN allow control-system integration; a built-in 10 W mono speaker and a 5 V/2 A USB-A port (supporting the optional AJ-WM50 wireless module) round out a self-contained package. For related Panasonic options, compare the WXGA PT-TMW380U short-throw projector, the ultra-short-throw PT-CMZ50U, and the standard-throw PT-VMZ51SU7.

Key Features

• 4,000-Lumen Laser Light Source — Bright enough for dark-to-well-lit rooms with up to a 20,000-hour rated life.
• WUXGA Native Resolution — 1,920 × 1,200 3LCD imaging for detailed presentation and video content.
• Short 0.47–0.59:1 Throw — Projects a 50–105 inch image from close to the wall to reduce shadowing and glare.
• 360° Installation — Mounts at any angle for ceiling, table, or tilted deployment flexibility.
• Automatic Keystone Correction — Auto vertical (±15°) and manual horizontal (±15°) correction simplify alignment.

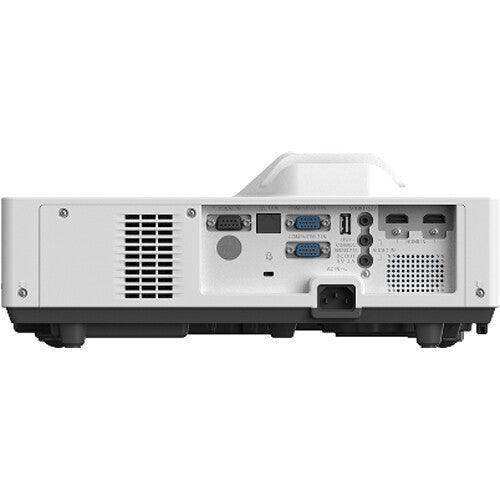

• Versatile Connectivity — Dual HDMI and dual VGA inputs with RS-232 and RJ45 LAN for control-system integration.
• Self-Contained Audio and Power Port — Built-in 10 W mono speaker and a 5 V/2 A USB-A port supporting the optional AJ-WM50 wireless module.
• Compact Commercial Chassis — 10.8 lb body for easy mounting in huddle and meeting spaces.

Typical Applications

• Conference room
• Huddle room
• Training room
• Multi-purpose room
• Commercial meeting space

Technical Specifications

Specifications sourced from Panasonic / vendor data. The exact published throw ratio varies between vendor fields (0.43–0.54:1 vs 0.47–0.59:1) and should be confirmed for your screen size against the current Panasonic PT-TMZ400U spec sheet.

Competitor Comparison

Competitor positioning is indicative; confirm current model specifications with each manufacturer before procurement.

Frequently Asked Questions

How close to the screen can the PT-TMZ400U be mounted? Its short throw (about 0.47–0.59:1) lets it produce a 50–105 inch image from close to the wall, reducing presenter shadowing. Confirm the exact distance for your screen size, as vendor throw figures vary slightly.

Can it be ceiling-mounted or installed at an angle? Yes. The projector supports 360° installation and is ceiling mountable, with auto vertical and manual horizontal keystone correction to square the image.

How is it integrated and controlled? It provides RS-232 and RJ45 LAN control alongside dual HDMI and dual VGA inputs, allowing integration with common AV control systems. An optional AJ-WM50 wireless module adds wireless connectivity.

What is the laser light source life? Panasonic rates the light source up to 20,000 hours in medium and 24,000 hours in low brightness, supporting long maintenance intervals in commercial use.

What warranty and support apply? Coverage follows Panasonic's commercial projector warranty; terms and extended-service options vary. Contact Creation Networks for current warranty details and Panasonic Pro AV service options.
