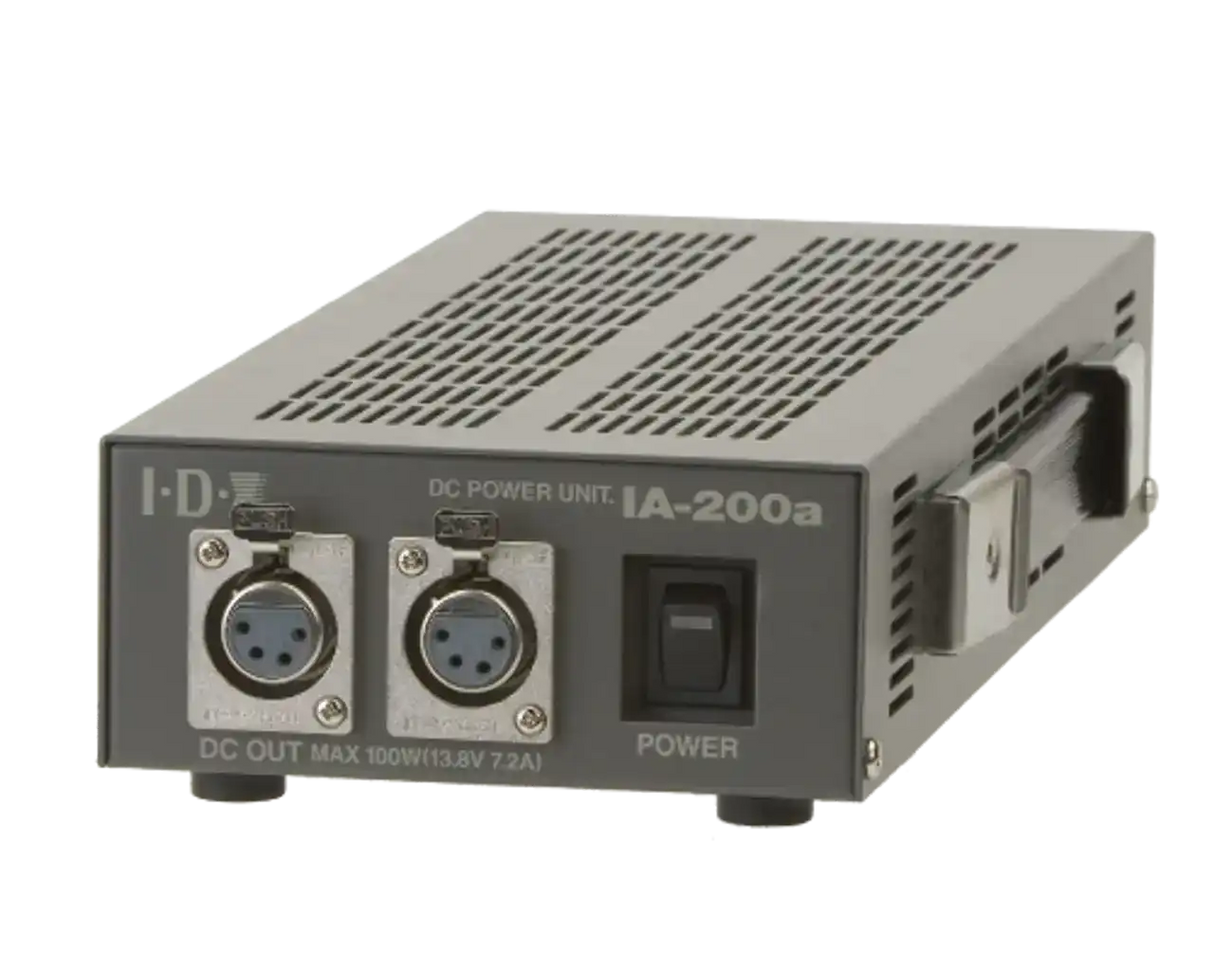

Panasonic IA-200A IDX 12VDC/100W Power Supply with Two 4-Pin XLR Output Connections

Product Overview

The Panasonic IA-200A is a dual-output 100W power supply with two 4-pin XLR connections, built to power professional video equipment from a universal AC source. With a 100–240 VAC input and automatic overload protection, this professional power supply suits broadcast studios and production setups that need reliable DC power for cameras, monitors, and accessories. A metal enclosure and built-in carrying handle make it practical for both fixed-rack and portable use.

Product Description

The IA-200A delivers up to 100W total across two 4-pin XLR outputs, drawing 100W from a single channel or split in any combination across both channels. The universal AC 100–240V, 50/60 Hz input allows deployment across regions and facilities without a separate adapter. Built-in over-voltage, over-current, and thermal protection guard connected gear against fault conditions, while the rugged metal enclosure and carrying handle support repeated transport between studio and field.

The IA-200A is commonly used to power professional video equipment such as cameras, monitors, and camcorders that accept nominal 12V DC over a 4-pin XLR connector — for example, gear in a broadcast or production kit like the Panasonic AG-CX370 camcorder or an AW-UB50 multipurpose camera rig. Always confirm each device's voltage, current draw, and XLR pinout before connecting. The 4-pin XLR connector cable (CA4XLR-B, 10 ft) is sold separately.

Key Features

• Dual 4-Pin XLR Outputs — Powers two devices, drawing 100W from one channel or split across both.
• 100W Total Output — Provides headroom for professional cameras, monitors, and accessories on a 4-pin XLR feed.
• Universal AC Input — Accepts 100–240 VAC, 50/60 Hz for use across regions and facilities.
• Automatic Overload Protection — Over-voltage, over-current, and thermal protection guard connected equipment.
• Rugged Metal Enclosure — Durable housing with a built-in carrying handle for studio or field transport.
• Lightweight 3.09 lb Design — Easy to relocate within a rack room or production cart.

Typical Applications

• Broadcast Studio — Supplies dual-channel DC power to cameras and monitors at the rack or desk.
• Multi-Purpose Room — Portable AC-to-DC power for temporary production and recording setups.
• Auditorium — Powers production video equipment for live events from a single AC source.

Technical Specifications

Specifications sourced from Panasonic / vendor data. Product title states 12V DC while the datasheet lists a 13.8V output (nominal 12V); confirm exact output voltage, XLR pinout, and physical dimensions against the current IA-200A datasheet before connecting equipment.

Frequently Asked Questions

How much power can each XLR output deliver?
The supply provides 100W total. You can draw the full 100W from a single channel or split it in any combination across the two 4-pin XLR outputs.

Does it include the output cable?
No. The 4-pin XLR connector cable (CA4XLR-B, 10 ft) is sold separately. Order the cable that matches your device's connector.

What input voltage does it accept?
It has a universal AC input of 100–240V, 50/60 Hz, so it works across regions without a separate adapter.

What protection does it provide?
Built-in over-voltage, over-current, and thermal protection automatically guard connected equipment against fault conditions.

Will it power my specific camera or monitor?
It powers professional video gear that accepts nominal 12V DC over a 4-pin XLR connection. Confirm your device's voltage, current draw, and pinout first. Contact Creation Networks for compatibility and warranty guidance.
