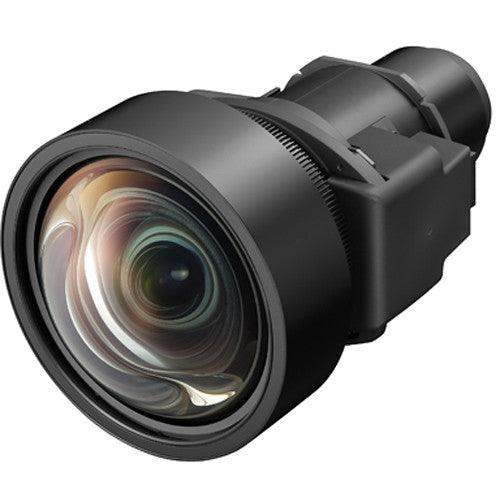

Panasonic ET-EMW500 .95 – 1.35:1 Zoom lens for PT-MZ16K/MZ13K/MZ10K LCD laser projectors
Panasonic ET-EMW500 .95 – 1.35:1 Zoom lens for PT-MZ16K/MZ13K/MZ10K LCD laser projectors is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Panasonic ET-EMW500 .95 – 1.35:1 Zoom lens for PT-MZ16K/MZ13K/MZ10K...
Product Overview
The Panasonic ET-EMW500 is a standard zoom lens for the PT-MZ16K, PT-MZ13K, and PT-MZ10K LCD laser projectors. Its 0.95–1.36:1 throw ratio in 16:10 and 16:9 modes covers the most common installation distances for large-venue rooms, making it a frequent default choice when matching a lens to a typical auditorium or house-of-worship layout. The interchangeable design lets AV integrators tune image size and projector position during commissioning.
Product Description
This commercial-grade projector lens is engineered specifically for Panasonic's MZ-series large-venue laser projectors and is not cross-compatible with other manufacturers' chassis. A 21.08–30 mm focal range and f/1.8–2.35 aperture deliver 0.95–1.36:1 coverage in 16:10 or 16:9 and 1.14–1.63:1 in 4:3, suiting rooms where the projector is positioned at a standard distance from the screen. Integrators select the lens that matches the required throw for each venue. For shorter distances, choose the ET-EMW400 (0.69–0.95:1) or ET-EMW300 (0.55–0.69:1); for longer throws, move to the ET-EMS650 (1.35–2.11:1).
Key Features
- Standard 0.95–1.36:1 Coverage — Matches the most common projector-to-screen distances in large-venue rooms.
- MZ-Series Compatibility — Engineered for the PT-MZ16K, PT-MZ13K, and PT-MZ10K LCD laser projectors.
- Zoom Flexibility — A 21.08–30 mm focal range allows image-size adjustment without moving the chassis.
- Bright f/1.8–2.35 Aperture — Maintains light throughput from high-output MZ-series laser projectors.
- Multi-Aspect Support — Provides 1.14–1.63:1 throw in 4:3 mode for mixed-content installations.
Typical Applications
- Auditorium — Standard throw fits typical seating depth and projector placement.
- House of Worship — Common installation distances for main-hall projection.
- Multi-Purpose Room — Zoom range adapts to varied screen sizes and room layouts.
- Commercial Meeting Space — Reliable default lens for large meeting and all-hands rooms.
Technical Specifications
| Lens Type | Zoom |
|---|---|
| Compatibility | Panasonic PT-MZ16KL, PT-MZ13KL, PT-MZ10KL |
| Throw Ratio | 0.95–1.36:1 (16:10), 0.95–1.36:1 (16:9), 1.14–1.63:1 (4:3) |
| Aperture | f/1.8 to 2.35 |
| Focal Length | 21.08 to 30 mm |
| Supported Aspect Ratios | 16:10, 16:9, 4:3 |
| Dimensions (H x W x L) | 6.9 x 7.0 x 11.2" (175 x 179 x 285 mm) |
| Weight | 11.35 lb (5.15 kg) |
Specifications sourced from Panasonic / vendor data. Motorized lens shift/zoom support and exact maximum image size by chassis require manual review against the current Panasonic ET-EMW500 spec sheet.
Frequently Asked Questions
Which projectors is the ET-EMW500 compatible with?
It is designed for Panasonic PT-MZ16K, PT-MZ13K, and PT-MZ10K LCD laser projectors. It is a proprietary Panasonic lens and is not compatible with other brands' chassis.
Is the ET-EMW500 the right default lens for my room?
Its 0.95–1.36:1 throw covers the most common large-venue distances, which makes it a frequent default. Still confirm your projector-to-screen distance and screen size, since shorter or longer rooms may need the ET-EMW400, ET-EMW300, or ET-EMS650.
Is this lens field-replaceable?
MZ-series projectors use interchangeable lenses installed by a qualified integrator. Follow Panasonic's lens replacement and calibration procedure during installation.
Does the lens support motorized shift and zoom?
Lens shift and zoom behavior depend on the host MZ-series projector; confirm motorized versus manual operation against the projector and lens spec sheets for your configuration.
What warranty applies?
Warranty terms follow Panasonic's current accessory policy; confirm coverage with Creation Networks before purchase.
