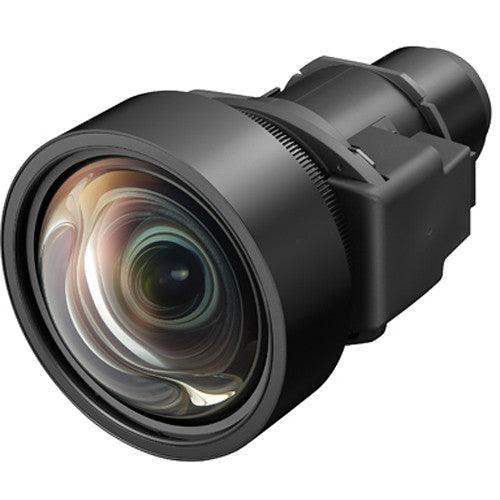

Panasonic ET-EMW300 .55 – 0.69:1 Zoom lens for PT-MZ16K/MZ13K/MZ10K LCD laser projectors

Product Overview

The Panasonic ET-EMW300 is a short-throw zoom lens for the PT-MZ16K, PT-MZ13K, and PT-MZ10K LCD laser projectors. With a 0.55–0.69:1 throw ratio in 16:10 and 16:9 modes, it lets AV integrators place a large-venue projector close to the screen in space-constrained rooms. The interchangeable zoom design gives designers room to fine-tune image size and projector position during installation without relocating the chassis.

Product Description

This commercial-grade projector lens is engineered specifically for Panasonic's MZ-series large-venue laser projectors and is not cross-compatible with other manufacturers' chassis. Its 12.31–15.43 mm focal range and f/1.84–2.24 aperture deliver short-throw coverage of 0.55–0.69:1 in 16:10 or 16:9 and 0.66–0.83:1 in 4:3, making it well suited to rear-throw rooms, auditoriums, and venues where the projector must sit near the screen. As part of a planned installation, integrators typically select the lens that matches the required throw distance for the room. For longer distances, step up to the ET-EMW400 (0.69–0.95:1) or ET-EMW500 (0.95–1.36:1); for ultra-short-throw mounting, see the ET-EMW200 zoom lens.

Key Features

• Short-Throw 0.55–0.69:1 Coverage — Projects a large image from a short distance for rooms where the projector sits close to the screen.
• MZ-Series Compatibility — Engineered for the PT-MZ16K, PT-MZ13K, and PT-MZ10K LCD laser projectors.
• Zoom Flexibility — A 12.31–15.43 mm focal range lets installers adjust image size without moving the chassis.
• Bright f/1.84–2.24 Aperture — Maintains light throughput from a high-output laser projector across the zoom range.
• Multi-Aspect Support — Delivers 0.66–0.83:1 throw in 4:3 mode for legacy and mixed-content installations.

Typical Applications

• Auditorium — Short throw fills a large screen where projector-to-screen distance is limited.
• House of Worship — Close mounting supports clean sightlines for large congregations.
• Multi-Purpose Room — Zoom range adapts the MZ-series projector to changing screen sizes.
• Commercial Meeting Space — Rear-throw and short-distance layouts keep the projector out of the audience area.

Technical Specifications

Specifications sourced from Panasonic / vendor data. Motorized lens shift/zoom support and exact maximum image size by chassis require manual review against the current Panasonic ET-EMW300 spec sheet.

Frequently Asked Questions

Which projectors is the ET-EMW300 compatible with?
It is designed for Panasonic PT-MZ16K, PT-MZ13K, and PT-MZ10K LCD laser projectors. It is a proprietary Panasonic lens and is not compatible with other brands' chassis.

How do I choose between the ET-EMW300, ET-EMW400, and ET-EMW500?
Selection is based on throw distance. The ET-EMW300 covers the shortest range at 0.55–0.69:1, the ET-EMW400 covers 0.69–0.95:1, and the ET-EMW500 covers 0.95–1.36:1. Confirm your room's projector-to-screen distance and screen size before ordering.

Is this lens field-replaceable?
MZ-series projectors use interchangeable lenses installed by a qualified integrator. Follow Panasonic's lens replacement and calibration procedure during installation.

Does the lens support motorized shift and zoom?
Lens shift and zoom behavior depend on the host MZ-series projector; confirm motorized versus manual operation against the projector and lens spec sheets for your configuration.

What warranty applies?
Warranty terms follow Panasonic's current accessory policy; confirm coverage with Creation Networks before purchase.
