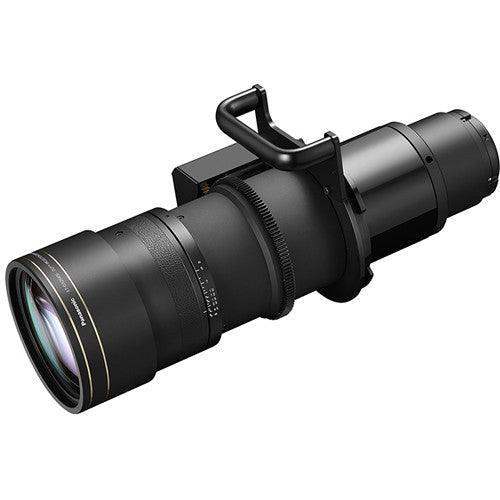

Panasonic ET-D3QS400 1.4 – 2.1:1 Zoom lens for PT-RQ50 projector with Lens Memory and Stepping Motor

Product Overview

The Panasonic ET-D3QS400 is a powered zoom lens for the PT-RQ50K 3DLP laser projector, delivering a 1.43 to 2.09:1 throw ratio in 4K 17:9 mode. With a 1.4x zoom range and a 45.3 to 65.6mm focal length, this PT-RQ50K projector lens covers standard mid-throw placements in auditoriums and large staging environments. A stepping motor and auto lens identification support repeatable, motorized setup in permanent commercial AV installations.

Product Description

This interchangeable lens is purpose-built for the PT-RQ50K, Panasonic's native 4K 3DLP large-venue projector. The 1.43 to 2.09:1 throw range suits rooms where the projector sits at a standard distance from the screen, and motorized zoom and focus with lens memory allow operators to recall framing presets between events. Auto lens identification lets the projector recognize the fitted optic and apply the correct geometry, which reduces setup time in rental, staging, and fixed-install workflows. The f/2.5 aperture maintains brightness across the zoom range to take full advantage of the projector's high light output.

This lens fits only the Panasonic PT-RQ50K projector. For a wider placement, see the ET-D3QW300 (1.1–1.7:1); for longer throws, compare the ET-D3QT500 (2.0–3.4:1) and the ET-D3QT600 (2.7–3.9:1).

Key Features

• 1.43 to 2.09:1 Throw Ratio — Covers standard mid-throw placements in 4K 17:9 mode for large venues.
• 1.4x Powered Zoom — Provides framing flexibility across a 45.3 to 65.6mm focal range.
• Stepping Motor with Lens Memory — Supports motorized, repeatable zoom and focus presets between events.
• Auto Lens Identification — Lets the PT-RQ50K detect the lens and apply correct geometry automatically.
• f/2.5 Aperture — Maintains brightness across the zoom range for high-output projection.
• PT-RQ50K Dedicated Fit — Engineered specifically for Panasonic's native 4K 3DLP large-venue projector.

Typical Applications

• Auditorium — Standard mid-throw coverage for large seated venues.
• House of worship — Repeatable framing presets for sanctuaries and IMAG.
• Broadcast studio — Motorized control for set projection and virtual backdrops.
• Multi-purpose room — Flexible zoom for rooms with varied screen sizes.

Technical Specifications

Frequently Asked Questions

Which projector does the ET-D3QS400 fit? It is designed specifically for the Panasonic PT-RQ50K and is not cross-compatible with other Panasonic 3DLP projectors.

What throw distance does it cover? It provides a 1.43 to 2.09:1 throw ratio in 4K 17:9 mode, suited to standard mid-throw placements; use the throw ratio and your screen width to confirm projector distance.

Does it support motorized control and presets? Yes. A stepping motor with lens memory enables motorized zoom and focus and recallable framing presets, and auto lens identification lets the projector apply correct geometry.

How is it installed? It mounts directly to the PT-RQ50K lens interface. For ceiling or rigging installs, confirm clearance for the 450 mm lens length during system design.

What warranty applies? Coverage follows Panasonic's commercial projector accessory policy; contact Creation Networks for current warranty terms and support.
