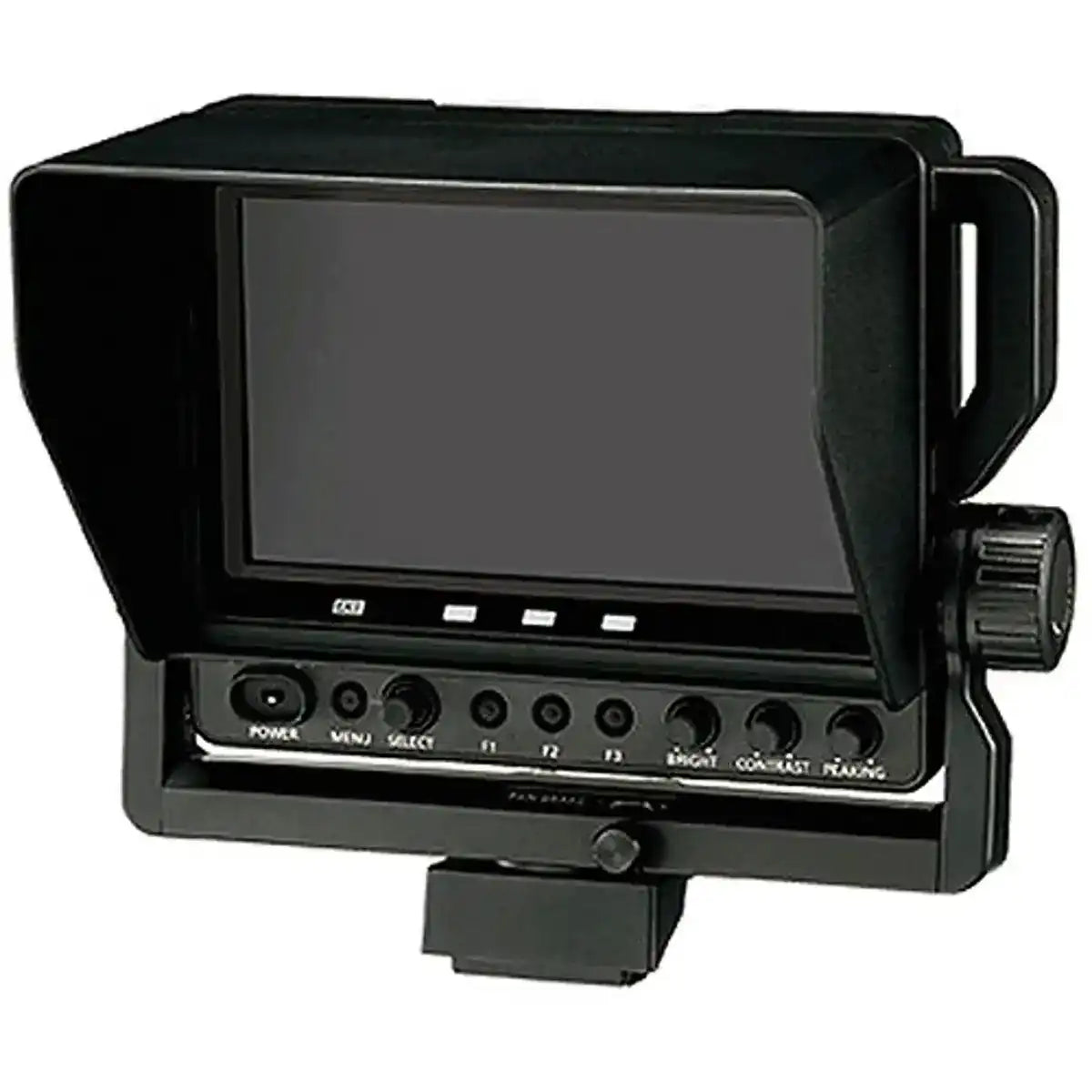

Panasonic AK-HVF75 7" Studio Camera Viewfinder for AK-HC3800, AK-UC3000, AK-HC5000 & AK-UC4000
Panasonic AK-HVF75 7" Studio Camera Viewfinder for AK-HC3800, AK-UC3000, AK-HC5000 & AK-UC4000 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Panasonic AK-HVF75 7" Studio Camera Viewfinder for AK-HC3800, ...
Product Overview
The Panasonic AK-HVF75 is a 7-inch studio camera viewfinder for Panasonic system cameras used in broadcast and live production. A color LCD panel with a wide 176-degree viewing angle, 400-nit brightness, and an 800:1 contrast ratio gives operators a clear framing and focus reference, while a direct-connect design attaches it to compatible Panasonic camera heads without separate cabling. Built-in focus assist and tally make it a working tool for multi-camera studio environments.
Product Description
The AK-HVF75 keeps the compact form factor of the earlier AK-HVF70 while adding refinements for studio operators. Versatile assist functions, including Focus-in-Red and a pixel-to-pixel display, help confirm critical focus quickly during live shots. Integrated, user-defined tally lights support red and green status with the option of a third (yellow) tally, so the camera operator and on-air talent always have clear status indication. Direct-connect functionality attaches the viewfinder to compatible Panasonic studio camera heads, including the AK-HC3800, AK-UC3000, AK-HC5000, and AK-UC4000, for a clean, cable-light setup. Camera menu controls are accessible from the viewfinder on select models, streamlining adjustments mid-production. For crews that need a larger reference display, the 9-inch AK-HVF100GJ is the step up, and the viewfinder pairs with cameras such as the AK-UC4000 and AK-UC3300.
Key Features
- 7-inch Color LCD — A bright studio-grade panel gives operators a clear framing and focus reference.
- 176-Degree Viewing Angle — Wide horizontal and vertical viewing keeps the image readable from off-axis operating positions.
- 400-Nit Brightness, 800:1 Contrast — Maintains visibility in varied studio lighting conditions.
- Focus Assist Functions — Focus-in-Red and pixel-to-pixel display confirm critical focus during live operation.
- Integrated Tally — User-defined red and green tally with support for a third (yellow) tally light.
- Direct-Connect Design — Attaches to compatible Panasonic camera heads for a cable-light setup.
- On-Viewfinder Menu Control — Camera menu controls are accessible from the viewfinder on select models.
Typical Applications
- Broadcast studio
- Auditorium
- House of worship
Technical Specifications
| Product Type | Studio camera viewfinder |
|---|---|
| Display Size | 7 inch |
| Panel Type | Color LCD |
| Viewing Angle | 176 degrees (horizontal / vertical) |
| Brightness | 400 nits |
| Contrast Ratio | 800:1 |
| Compatible Cameras | AK-HC3800, AK-UC3000, AK-HC5000, AK-UC4000 |
| Connection | Direct connect to compatible camera head |
| Focus Assist | Focus-in-Red, pixel-to-pixel |
| Tally | Red / green, with support for a third (yellow) tally |
Specifications sourced from Panasonic / vendor data. Panel resolution, power consumption, weight, and dimensions require manual review against the current Panasonic AK-HVF75 spec sheet.
Frequently Asked Questions
Which cameras work with the AK-HVF75? It directly connects to the Panasonic AK-HC3800, AK-UC3000, AK-HC5000, and AK-UC4000 studio cameras. Confirm your specific camera and firmware with Creation Networks before ordering.
Does it support a third tally color? Yes. The integrated user-defined tally supports red and green with the option of a third yellow tally light.
Can I access camera menus from the viewfinder? On select compatible models, camera menu controls are available from the viewfinder, which speeds up adjustments during production.
How does it differ from the AK-HVF100GJ? The AK-HVF75 has a 7-inch panel and a compact form factor; the AK-HVF100GJ offers a larger 9-inch Full HD display for crews that need a bigger reference.
What warranty applies? The viewfinder carries the applicable Panasonic broadcast product warranty; contact Creation Networks to confirm coverage.
