Panasonic 9" LCD Color Viewfinder with Tilt
Product Overview

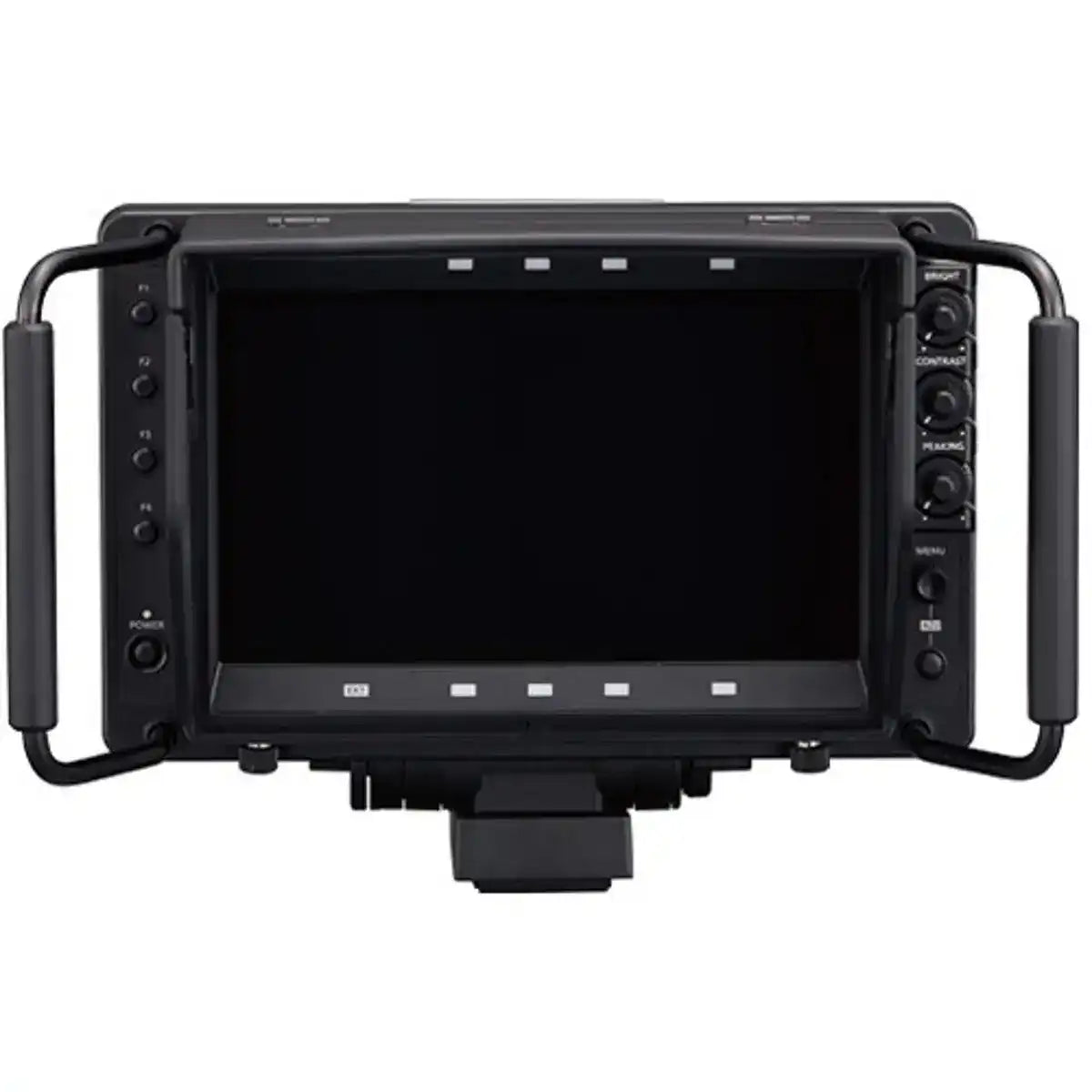

The Panasonic AK-HVF100GJ is a 9-inch Full HD studio camera viewfinder designed for professional broadcast and live production operators. Its 1920 x 1080 color LCD panel, focus assist tools, and tilt mechanism give camera operators an accurate framing and focus reference during long studio and field sessions. An external HD-SDI input lets the viewfinder double as a confidence monitor for additional sources.
Product Description
For studio and outside-broadcast crews, the AK-HVF100GJ provides the large, high-resolution reference that accurate focus and framing demand. The 22.9 cm (9-inch) Full HD panel resolves fine detail, while Focus-in-Red and a Focus Bar make critical focus fast to confirm without leaving the eyepiece. A pan, tilt, and lift structure positions the display comfortably for different shooting stances, reducing operator fatigue across long calls. Four assignable function switches put frequently used controls within reach, and contrast, brightness, and peaking are all adjustable to match room conditions. The external HD-SDI (3G-SDI) input expands monitoring flexibility for multi-source setups. The AK-HVF100GJ is built for Panasonic studio camera systems and pairs with cameras such as the AK-UC4000, AK-UC3300, and AK-HC3900; for a smaller eyepiece, see the 7-inch AK-HVF75.
Key Features
- 9-inch Full HD LCD — A 22.9 cm 1920 x 1080 color panel resolves fine detail for accurate framing.
- Focus Assist Tools — Focus-in-Red and a Focus Bar confirm critical focus quickly during live operation.
- Tilt and Lift Structure — Pan, tilt, and lift adjustment positions the display for comfortable viewing across shooting stances.

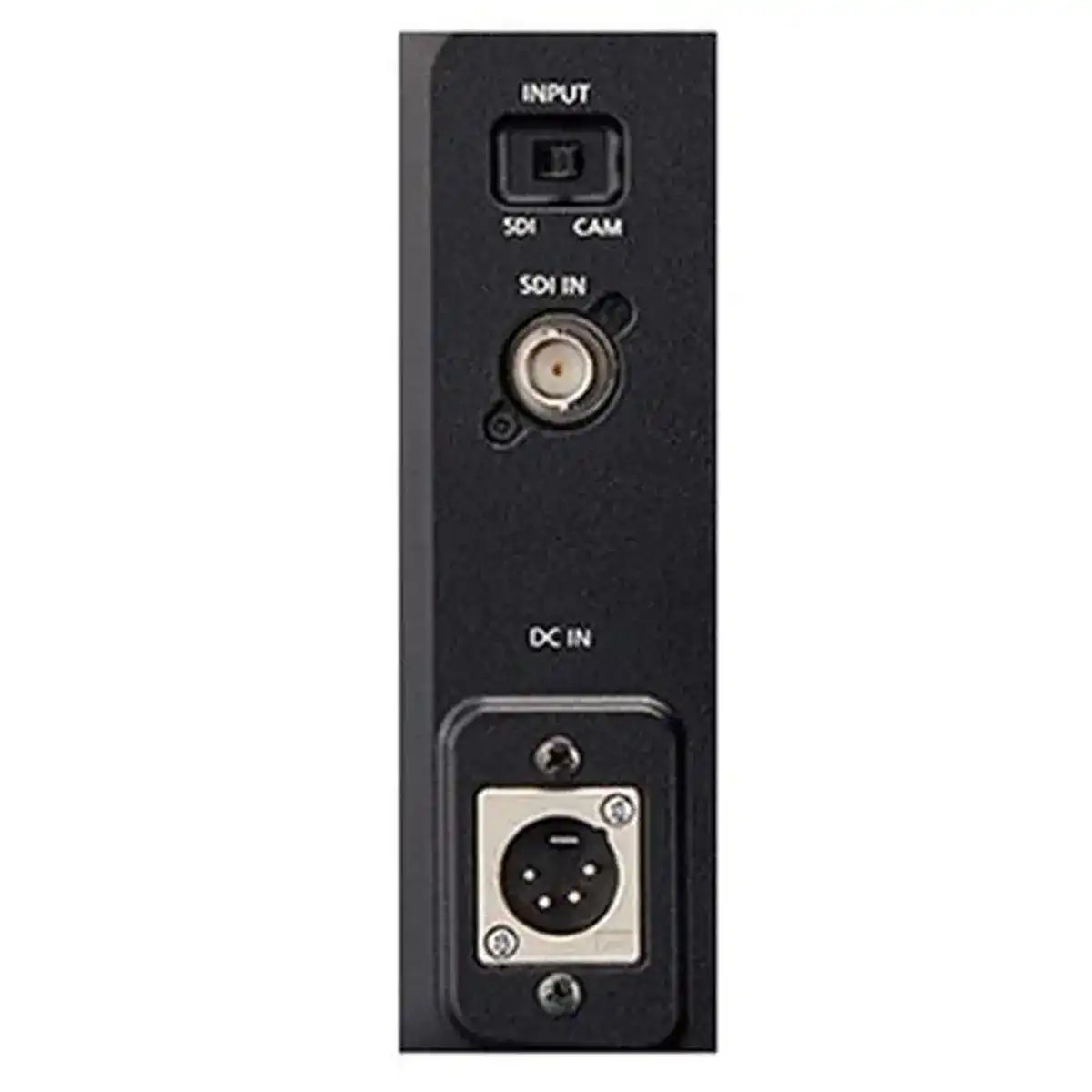

- External HD-SDI Input — A 3G-SDI input lets the viewfinder serve as a confidence monitor for additional sources.
- Four Assignable Switches — Operators map frequently used functions to dedicated controls for faster access.
- Image Adjustments — Contrast, brightness, and peaking are adjustable to suit room lighting and operator preference.
Typical Applications
- Broadcast studio
- Auditorium
- House of worship
Technical Specifications
| Product Type | Studio camera viewfinder |
|---|---|
| Display Size | 22.9 cm (9 inch) |
| Panel Type | Color LCD |
| Resolution | Full HD 1920 x 1080 |
| External Input | HD-SDI (3G-SDI) |
| Focus Assist | Focus-in-Red, Focus Bar |
| Assignable Function Switches | 4 |
| Image Adjustments | Contrast, brightness, peaking |
| Mechanical Structure | Pan, tilt, and lift |
Specifications sourced from Panasonic / vendor data. Panel brightness, exact compatible camera model list, power requirements, weight, and dimensions require manual review against the current Panasonic AK-HVF100GJ spec sheet.
Frequently Asked Questions
Which cameras is the AK-HVF100GJ compatible with? It is designed for Panasonic studio camera systems. Confirm the exact head and connection requirements for your specific camera model with Creation Networks before ordering.
Can I feed an external source into the viewfinder? Yes. The external HD-SDI (3G-SDI) input lets the unit act as a confidence monitor for an additional source during production.
What focus tools does it provide? Focus-in-Red highlights the in-focus area in red, and a Focus Bar gives a numeric-style focus reference, both of which speed up critical focus on live shots.
Is the viewing position adjustable? Yes. The pan, tilt, and lift structure repositions the display for comfortable framing across different operator stances.
What warranty applies? The viewfinder carries the applicable Panasonic broadcast product warranty; contact Creation Networks to confirm current coverage.
