Neat NEATBARPRO-SE Neat Bar Pro Collaboration Bar

Availability: Call for Availability
Availability: Direct Ship
Neat SKU: NEATBARPRO-SE
No reviews

Price:
Sale price$5,030.00

Description

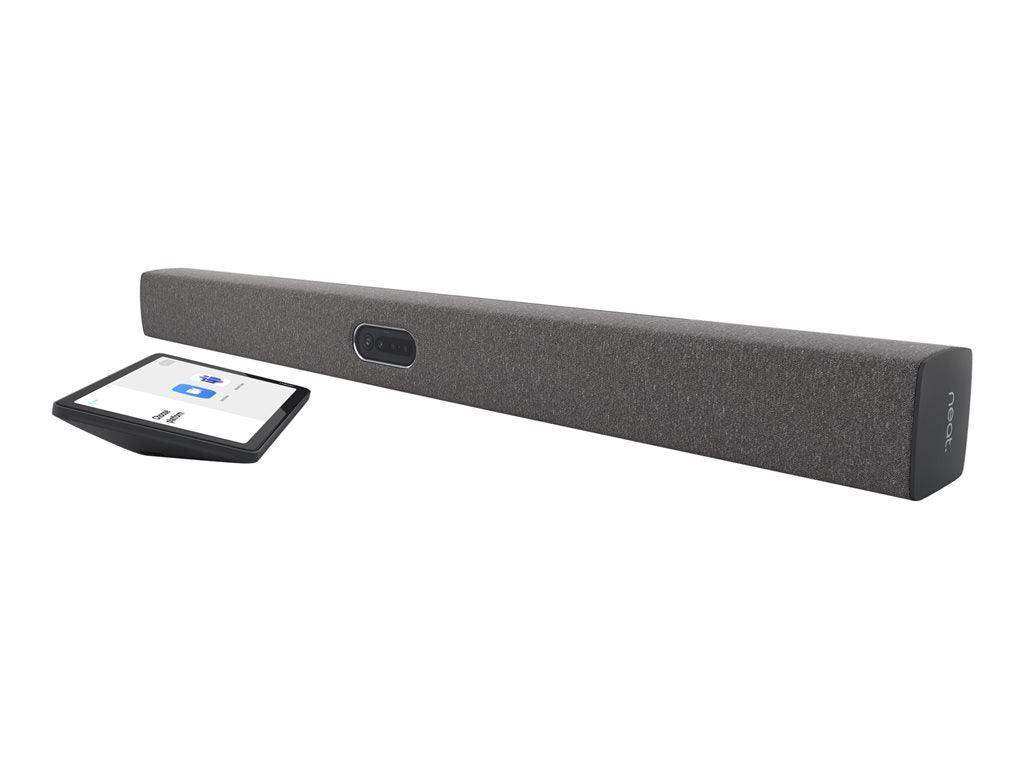

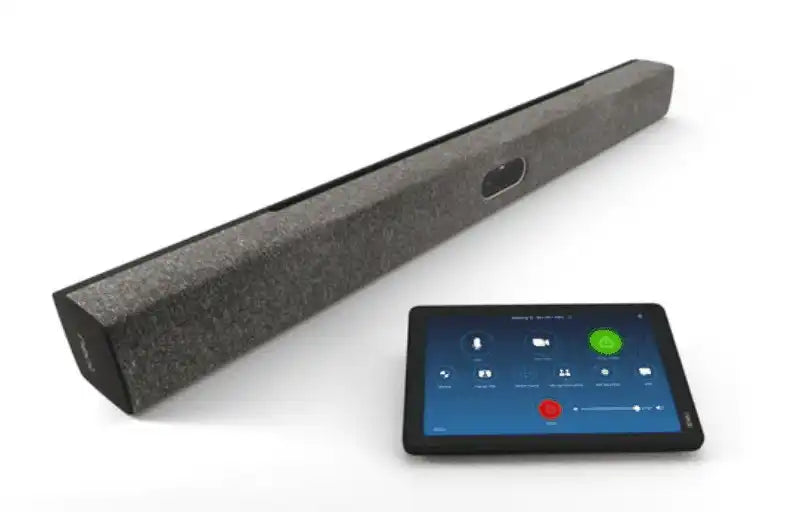

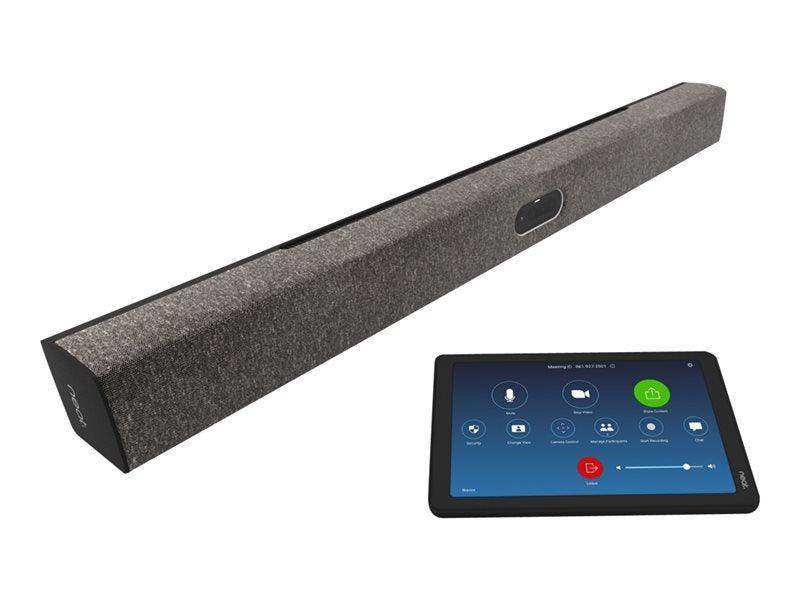

The Neat Bar requires a Neat Pad to be purchased with the device.  Please see the NEATBARPROPAD Kit.

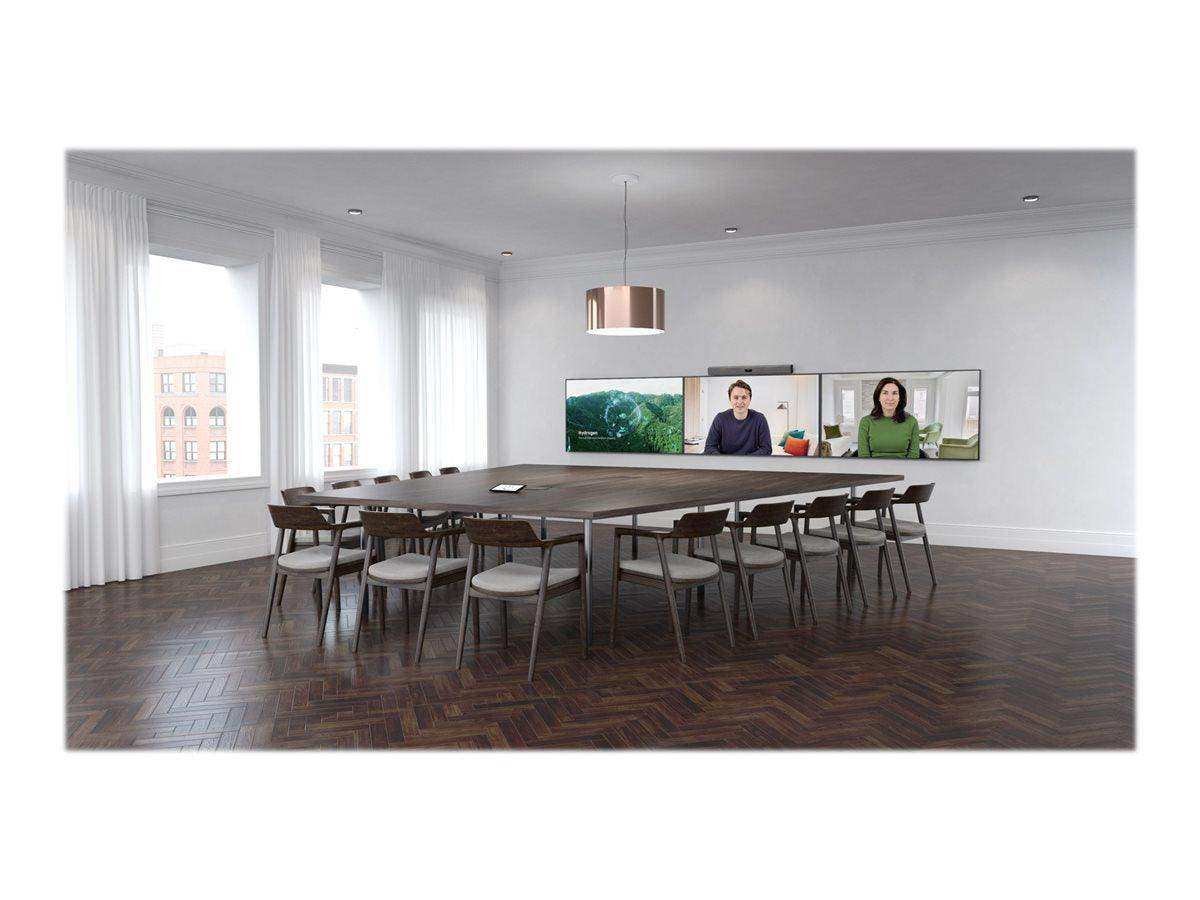

Neat Bar Pro packs a stack of tech into a simple and elegant slimline device. Capable of driving three large screens, it enables you to see people and content together more clearly. Simultaneously, its uncompromising audio and video quality give you an incredibly immersive, natural meeting experience throughout any space.

Speaker System: Neat Bar Pro is bursting with audio power, thanks to a subwoofer with two opposing drivers for vibration cancellation and three full-range speakers, which produce direct stereo sound throughout any room.

Microphone array: An advanced pyramid-shaped 16x microphone array ensures clear vocal pick-up, while Neat Audio Processing means no garbled 'double talk' issues or problems with background noise.

Extreme cameras: Neat Bar Pro is especially ideal for bigger meeting spaces as its camera configuration incorporates a telephoto and wide-angle lens and an image depth sensor which combined deliver 16x zoom.

Simple set-up: Neat Bar Pro can be placed on a table, or wall mounted either above or below one, two or three screens(*). Everything you need is in the box, including mounts and cables. Simply follow the instructions on the Neat Pad controller, and let Neat Bar Pro adapt to your placement and realign your view.

Scope for more: Neat Bar Pro will be audio extensible in a future software update so that you can connect it to existing installations. If needed, you can also add more Neat Pad devices and use them as multiple controllers in your meeting space or schedulers for various entrances(*).

With lightning-fast image processing, Neat Bar Pro can detect, enlarge, and follow all in-room participants in full close-up, no matter where they’re positioned, resulting in more lifelike engagement.

Neat Bar Pro-Collaboration Bar for use with Zoom & Microsoft Teams systems • Includes Bar, integrated camera, microphones and wall, table, and display mounts. (Requires NeatPad-SE) - NEATBARPRO-SE

General

Wakeup sensor (radar)
Depth sensor (time-of-flight VGA 60° FOV)
Orientation sensor (accelerometer)
Ambient light sensor
Camera LED
System LED
Tripod mount compatible (1/4-20 UNC threads)
Table stand, wall mount and screen mount
Security lock slot (Kensington compatible)
Secure boot
Triple screen support (*)
Sensors for temperature, humidity and air quality (*)



Audio

Speakerbox for maximal tonal range with minimal distortion
3 full-range speakers ready for directional and stereo sound
Woofers with two opposing drivers for vibration cancellation
4 tracking mics
16 microphones in a beamforming array
Hardware accelerated audio processing
Ultrasonic support for wireless content sharing
Echo cancellation
Noise suppression
Automatic gain control
Dereverberation

Video

Pro 100 MP camera system with wide and tele cameras
Wide camera: 50 MP, ƒ/2.8 aperture, 113° horizontal field of view
Tele camera: 50 MP, ƒ/1.8 aperture, 70° horizontal field of view
Hybrid zoom up to 16x
Automatic people framing
Hardware accelerated video encode and decode
Distortion correction
Noise reduction
Chromatic aberration correction
Automatic white balance and color correction
People video resolution: Up to 1080p / 30
Content video resolution: 720p / 60, 1080p / 30



Electrical and environmental requirements

100-240V ~ 50/60Hz 1.2A
Ambient operating temperature: 32° to 95° F (0° to 35° C)
Storage temperature: -4° to 140° F (-20° to 60° C)
Relative humidity: 10% to 90%
Built-in power supply

Power consumption
Idle: 6W
In call: 8-15W

Networking & ports

WiFi
AC power (internal power supply)
Ethernet
USB-C for input when connected to a touch screen (*)
3x HDMI out for external screens
HDMI-in for screen sharing
Auxiliary port for 3rd party audio extensions (RJ45) (**)

Size & weight

Width: 35.04 inches (890 mm)
Height: 3.15 inches (80 mm)
Depth: 3.15 inches (80 mm)
Weight: 6.83 pounds (3.1 kg)
