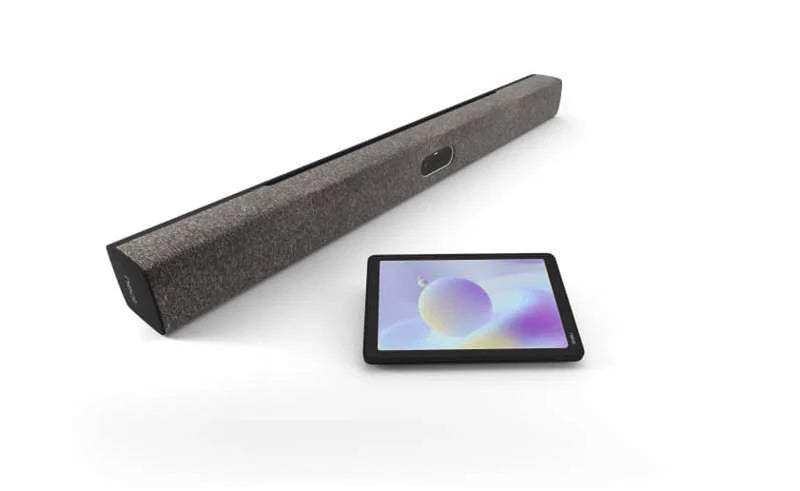

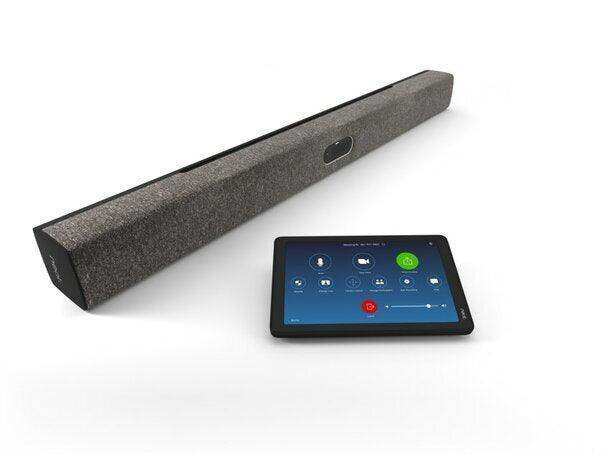

NEAT Conferencing Neat Bar Pro + Neat Pad Collaboration Bundle - NEATBARPROPAD

Go up a notch.

The Neat Bar Pro packs a lot of technology into an elegant and slim design. The system has the capacity to drive three large screens, so that people and content can be viewed together in a more clear manner. Throughout any space, you will experience an immersive, natural meeting experience thanks to its uncompromising audio and video quality.

NeatBar Pro packs a stack of tech into a simple and elegant device that is perfect for bringing superior-quality audio and video to any space, including your large meeting rooms.

** Needs to be purchased from Zoom or Microsoft

Wakeup sensor (radar)
Depth sensor (time-of-flight VGA 60° FOV)
Orientation sensor (accelerometer)
Ambient light sensor
Temperature sensor
Humidity sensor
Air quality sensor
Camera LED
System LED
Tripod mount compatible (1/4-20 UNC threads)
Table stand, wall mount and screen mount

Audio

Speakerbox for maximal tonal range with minimal distortion
3 full-range speakers ready for directional and stereo sound
Woofers with two opposing drivers for vibration cancellation
4 tracking mics
16 microphones beamforming arrays
Hardware accelerated audio processing
Echo cancellation
Noise suppression
Automatic gain control
Dereverberation

Video

Pro 100 MP camera system with wide and tele cameras
Wide camera: 50 MP, ƒ/2.8 aperture, 113° horizontal field of view
Tele camera: 50 MP, ƒ/1.8 aperture, 70° horizontal field of view
Hybrid zoom up to 16x
Hardware accelerated video encode and decode
Distortion correction
Noise reduction
Chromatic aberration correction
Automatic white balance and color correction
People video resolution: Up to 1080p / 30
Content video resolution: 720p / 60, 1080p / 30

Security

Secure boot
Security lock slot
Communications are established with 256-bit TLS encryption
Shared content is encrypted with AES-256 encryption
The Zoom Rooms app is secured with App Lock Code
As a native Zoom device Neat Bar supports all Zoom signaling and media encryption protocols.
Read more about Zoom security.

Electrical and environmental requirements

Built-in power supply
100 - 240 V AC, 50 Hz to 60 Hz
Ambient operating temperature: 32° to 95° F (0° to 35° C)
Storage temperature: 5° to 149° F (-15° to 65° C)
Relative humidity: 20% to 80%

Networking and ports

WiFi
AC power (internal power supply)
Ethernet
USB-C for input when connected to a touch screen
3x HDMI out for external screens
HDMI-in for screen sharing
Auxiliary port for 3rd party audio extensions (RJ45) (*)

Size and weight

Width: 35.04 inches (890 mm)
Height: 3.15 inches (80 mm)
Depth: 3.15 inches (80 mm)
Weight: 6.83 pounds (3.1 kg)

What’s in the box

Neat Bar Pro
HDMI cable (6.5 feet / 2 meters)
Ethernet cable (9.8 feet / 3 meters)
Power cable (9.8 feet / 3 meters)
Mount adapter, wall mount, screen mount and table stand

4 × M8 screw (0.94 in / 24 mm) for VESA mount
4 × M6 screw (0.94 in / 24 mm) for VESA mount
2 × spacer (to secure parallel TV mount)
1 × 5 mm hex key for the screen mount
1 × 2 mm hex key for the mount adapter

2 additional screw bags for dual or triple screen setup

• 2 ×

• 4 × M8 screw (0.94 in / 24 mm) for VESA mount
• 4 × M6 screw (0.94 in / 24 mm) for VESA mount
• 4 × spacer (to secure alignment of all screens)

What you’ll need

Subscription service with Zoom or Microsoft Teams (**)
Display with HD capability or better
Internet connection

Neat Pad is our dedicated Zoom Rooms controller that doubles as a Scheduling display.

* Supported in future software update

8-inch (diagonal) touch screen
1280 x 800 screen resolution
Anti glare, anti smudge coating
Ambient light sensor
Sensors for temperature, humidity, CO2 and VOC
Side LED Indicators
Speakers for ultrasound
2 microphones (*)
Accelerometer
Wall mount and side mount
Kensington lock
Zoom Rooms software

Security

Secure boot
The Zoom Rooms app is secured with App Lock Code on the NeatBar

Electrical and environmental requirements

Power over Ethernet (PoE): 802.3at PoE+ (Class 4/mode A)
56 V DC 0.275 A
Ambient operating temperature: 32° to 95° F (0° - 35° C)
Storage temperature: 5° - 149° F (-15° - 65° C)
Relative humidity: 20% to 80%
