Meyer Sound Meyer Sound 750-LFC 3100W 15-inch Powered Subwoofer (Fold, with Weather Protection) - 09.271.001.09
Meyer Sound Meyer Sound 750-LFC 3100W 15-inch Powered Subwoofer (Fold, with Weather Protection) - 09.271.001.09 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Meyer Sound Meyer Sound 750-LFC 3100W 15-inch Powered Subwoofer (Fo...
Product Overview

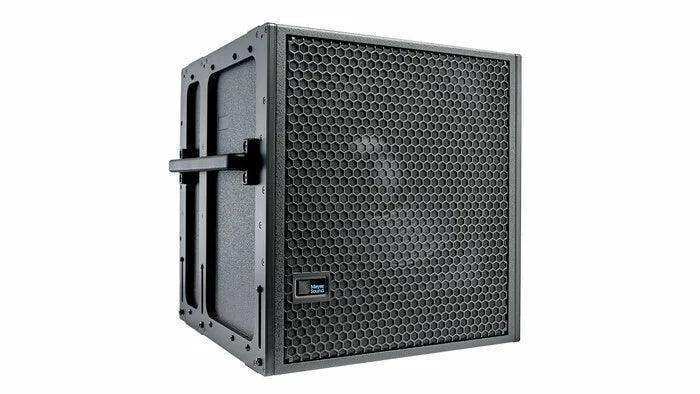

The Meyer Sound 750-LFC is a very compact self-powered low-frequency control element for scalable low-frequency reinforcement in portable rigs and fixed installations. This configuration combines a fold weather-protection treatment with QuickFly rigging, making it ready for flown, ground-stacked, and cardioid arrays in semi-exposed deployments. A single 15-inch long-excursion driver and an onboard class D amplifier deliver high continuous output with extremely low distortion. It is a natural low-frequency complement for Meyer Sound LINA and LEOPARD systems.
Product Description
This fold weather-protected variant retains the MRK-750 rigging, whose captive GuideALinks allow flying from the MG-MINA/LINA grid in LINA arrays without a transition frame. The end frames support ground-stacked and cardioid configurations and subwoofer-array splay angles of 0, 1.5, 3.25, or 4.75 degrees. Inside, a two-channel open-loop class D amplifier rated at 3100 W peak resides in a single field-replaceable module. The integral pole mount supports LINA loudspeakers above or pairing with ULTRA Series loudspeakers. For a larger 18-inch element consider the Meyer Sound 900-LFC subwoofer, and pair it with the Meyer Sound LEOPARD line array loudspeaker. Browse the full Meyer Sound collection for processing and accessories.
Key Features
- Fold Weather Protection — A fold-style weather-protection treatment suits portable semi-exposed deployments.
- QuickFly Rigging — The MRK-750 rigging with captive GuideALinks allows flying from the MG-MINA/LINA grid without a transition frame.
- 15-inch LF Driver — A single dual-coil, long-excursion 15-inch cone driver with 2 ohm nominal impedance produces high-output, low-distortion low frequencies.
- Self-Powered Class D Amplifier — A two-channel, open-loop class D amplifier rated at 3100 W peak is housed in a field-replaceable module.
- Variable Splay Angles — Subwoofer arrays can be configured at 0, 1.5, 3.25, or 4.75 degrees.
- Cardioid Capable — Rigging supports cardioid arrays to reduce output behind the loudspeakers.
- Integral Pole Mount — A built-in pole mount supports LINA loudspeakers above or pairing with ULTRA Series loudspeakers.
Typical Applications
- House of Worship — Provides weather-resistant flown or ground-stacked low-frequency reinforcement for worship events.
- Auditorium — Extends low-frequency response for theatrical and presentation systems.
- Multi-Purpose Room — Supports flexible flown or ground-stacked low end in semi-exposed venues.
- Broadcast Studio — Delivers linear, low-distortion low frequencies for production audio.
Technical Specifications
| Operating Frequency Range | 35 Hz – 125 Hz |
| Frequency Response | 37 Hz – 110 Hz ±4 dB |
| Phase Response | 43 Hz – 110 Hz ±30° |
| Linear Peak SPL | 130.5 dB with crest factor >9 dB (M-noise) |
| Low Frequency Driver | One 15-inch dual-coil, long-excursion cone driver; 2 Ω nominal |
| Amplifier | Two-channel, open-loop, class D; 3100 W peak |
| THD, IM, TIM | < 0.02% |
| AC Power | powerCON 20 input with loop; 90–265 V AC, 50–60 Hz |
| Dimensions with Rigging | W 21.55 in x H 20.43 in x D 20.88 in (547 x 519 x 530 mm) |
| Weight with Rigging | 105 lb (47.6 kg) |
| Enclosure | Premium multi-ply birch with textured black finish |
Specifications sourced from Meyer Sound. Subject to change without notice.
Competitor Comparison
| Criteria | Meyer Sound 750-LFC | L-Acoustics KS21 | d&b V-SUB |
| Amplification | The 750-LFC is self-powered with an integrated class D amplifier in the cabinet. | The KS21 is externally amplified and requires an LA-series amplified controller. | The V-SUB is externally amplified and requires a d&b amplifier. |
| Driver Configuration | It uses a single 15-inch long-excursion driver in a very compact cabinet. | It uses a single 21-inch driver in a larger cabinet. | It uses a cardioid-arranged multi-driver design. |
| Weather Protection | This variant is supplied with a fold weather-protection treatment for semi-exposed use. | Weather protection is offered as a separate WR variant. | Weather protection requires d&b outdoor-rated variants. |
| Rigging Integration | Captive GuideALinks fly directly from the MG-MINA/LINA grid without a transition frame. | It uses L-Acoustics rigging bars within the Kara/Kiva ecosystem. | It uses d&b rigging hardware within the V-Series ecosystem. |
Frequently Asked Questions
Can this subwoofer be used in semi-exposed locations? Yes. This fold configuration includes a fold weather-protection treatment for portable semi-exposed use.
Does it include rigging? Yes. This version ships with QuickFly rigging for flown, ground-stacked, and cardioid configurations.
Is it compatible with LINA arrays? Yes. The captive GuideALinks allow it to fly from the MG-MINA/LINA grid without a transition frame.
Does it require an external amplifier? No. The 750-LFC is self-powered and can be driven and aligned using a Meyer Sound Galileo GALAXY Network Platform.
What warranty applies? This product is covered under Meyer Sound's standard product warranty. For details please contact us.
