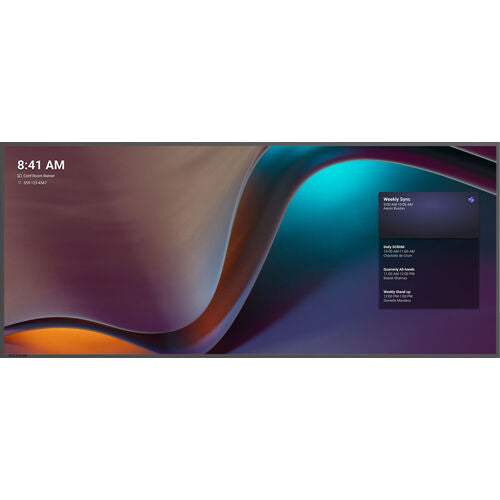

MaxHub UW105NA 105” Ultra Wide Commercial Display

Product Overview

The MAXHUB UW105NA is a 105" 21:9 ultra-wide commercial display delivering 5K resolution (5120×2160) for Microsoft Teams Signature Rooms, command-and-control centers, and premium large-format visual installations. The VA panel with 4mm protective glass, anti-glare 25% haze coating, and an OPS slot for Windows PC module integration provides a complete hardware platform for enterprise conference room and digital signage deployment. Running Android 13 on an octa-core ARM SoC with 8GB RAM and 64GB storage, the UW105NA operates as a self-contained collaboration terminal. Crestron Connected certified and compatible with Q-SYS and Extron, it integrates into professional AV control systems without custom programming.

Product Description

The MAXHUB UW105NA 105" ultra-wide display is the largest commercial panel in the UW series, providing an immersive 5K (5120×2160) visual canvas for Microsoft Teams Front Row and Signature Room configurations, where all meeting elements — participant video, content sharing, and meeting controls — occupy the screen simultaneously across the full 21:9 field. The VA panel incorporates a 4mm protective glass layer with 25% haze anti-glare treatment for durability and reduced reflectivity in premium conference room environments. At 400 nits and 16/7 operation, the UW105NA is positioned for regular business-hours conference room deployment rather than continuous 24/7 signage. Android 13 with MAXHUB Meeting OS V6 runs on an A76×4 + A55×4 octa-core processor with Mali-G610 GPU, 8GB RAM, and 64GB storage, providing an on-display compute platform for MAXHUB Share wireless screen sharing, collaboration apps, and digital signage. Connectivity includes four HDMI inputs (three HDMI 2.0 + one HDMI 2.1 for native 5K input), DisplayPort, USB Type-C, four USB 3.0 ports, RS232, and dual RJ45 with network passthrough. The 2.1-channel speaker system (2×16W + 15W subwoofer) provides conference-room audio coverage. An OPS slot (OPS62A / OPS72A compatible) enables a slot-in Windows PC for full Teams Rooms or dedicated digital signage operation. MAXHUB Pivot provides cloud-based remote device management. The VESA 1000×400mm pattern and 89 kg weight require professional structural installation. For the compact sibling, see the MAXHUB UW92NA 92". For standard-format large displays, see the MAXHUB ND98CMA 98". Browse the full MAXHUB collection at Creation Networks.

Key Features

• 105" 21:9 Ultra-Wide Format — Largest UW Series model; 33% wider visual canvas than 16:9 displays for Microsoft Teams Front Row and immersive conference room applications.
• 5K Resolution (5120×2160) — Native 5K across the full 21:9 panel for high-definition text, video, and data content at large format.
• 4mm Protective Glass with Anti-Glare — Built-in protective glass layer with 25% haze anti-glare coating for durability and reduced reflectivity in premium installations.
• Android 13 / 8GB RAM / 64GB Storage — Octa-core ARM SoC (A76×4 + A55×4) with Mali-G610 GPU running MAXHUB Meeting OS V6 for on-display compute.
• OPS Slot (OPS62A / OPS72A) — Built-in OPS module slot for optional Windows PC for Teams Rooms, Zoom, Webex, or digital signage applications.
• 2.1-Channel Speaker System — 2×16W + 15W subwoofer for room-filling conference audio without external amplification hardware.
• Full HDMI 2.1 Input — Accepts native 5120×2160 signal via HDMI 2.1; three additional HDMI 2.0 inputs for multi-source environments.
• Wi-Fi 6 + Bluetooth 5.2 — 802.11ax dual-band Wi-Fi with Bluetooth 5.2 for wireless device connectivity and BYOD collaboration.
• Crestron Connected / Q-SYS / Extron — Certified and compatible with major enterprise AV control platforms for RS232 and IP control integration.
• MAXHUB Share Wireless Screen Sharing — BYOD-compatible with Miracast, AirPlay, and Chromecast; supports up to nine simultaneous wireless screen sharers.

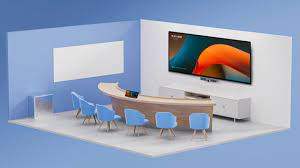

Typical Applications

• Boardroom
• Conference room
• Commercial meeting space
• All-hands room
• Government space
• Training room

Technical Specifications

Specifications sourced from MaxHub (maxhub.com).

Frequently Asked Questions

How does the UW105NA differ from the UW92NA?
The UW105NA is 105" versus 92", adds 4mm protective glass over the panel, and carries a 16/7 operation rating versus the UW92NA's 24/7 rating. The 92" model is brighter at 600 nits versus 400 nits for the 105". Both share the same 5K 21:9 resolution, Android 13 platform, and OPS slot.

Is the UW105NA portrait-mountable?
No. The UW105NA is designed for landscape orientation only. The UW92NA supports both landscape and portrait mounting.

What OPS modules are compatible?
The UW105NA accepts OPS62A and OPS72A slot-in Windows PC modules. Contact Creation Networks to pair the correct OPS module for your conferencing or digital signage deployment.

What VESA pattern and structural requirements apply?
The UW105NA uses a 1000×400mm VESA pattern. At 89 kg and 2511 mm wide, professional structural installation is required. A wall mount is included; contact Creation Networks for site preparation guidance.

What control systems integrate with the UW105NA?
The UW105NA is Crestron Connected certified for XiO Cloud management and supports RS232 and IP control compatible with Q-SYS and Extron. It also supports Wake on LAN and HDMI CEC.

What warranty and support does Creation Networks provide?
The UW105NA includes a 3-year display warranty. Contact Creation Networks for installation support, project consulting, and service coordination.
