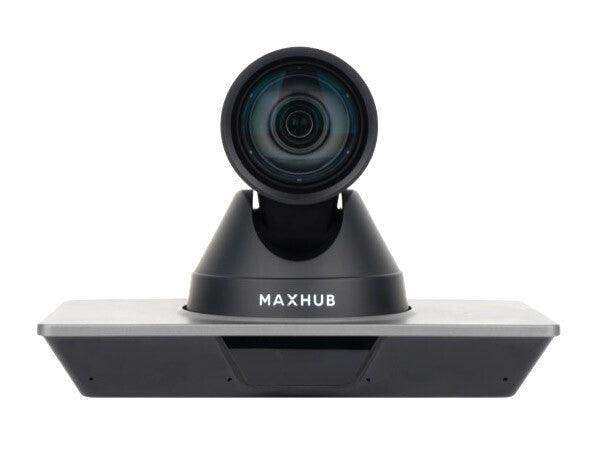

MaxHub UC P25 Professional Conference Room Series 12X PTZ Camera 4K, remote, mount

Product Overview

The MaxHub UC P25 is a 4K PTZ conference room camera that combines an 8 MP Sony CMOS sensor with 12x optical zoom and integrated PoE support, delivering high-resolution video for mid-to-large meeting spaces over IP or USB. As a plug-and-play 4K PTZ camera with ONVIF compatibility, built-in RTSP/RTMP encoder, and included IR remote and mounting hardware, the UC P25 is suited for conference rooms, boardrooms, and house of worship installations where 4K image quality and flexible network integration are priorities. VISCA and Pelco protocol support allow control system integration, and the included remote and mount make the UC P25 a complete out-of-box solution.

Product Description

The UC P25 steps up from the UC P10 with a Sony CMOS sensor capable of 8 MP capture and 4K output, paired with 12x optical and 16x digital zoom for a combined 192x zoom range. The camera ships with an IR remote control and wall/ceiling mount, reducing installation cost and time compared to sourcing accessories separately. PoE (Power over Ethernet) support means a single Cat cable can carry both data and power to the camera, simplifying permanent installation in conference rooms and large meeting spaces.

The built-in RTSP and RTMP encoder allows the UC P25 to stream directly to recording servers, CDNs, or video management systems without additional encoding hardware. ONVIF protocol compliance ensures interoperability with third-party video management and IP camera systems. For control, VISCA, Pelco-D, and Pelco-P protocols are supported over RS-232 and network connections, making integration with existing AV control infrastructure straightforward.

For a step down in budget with 1080p output, see the MaxHub UC P10 PTZ Camera. For dual-lens 4K with AI auto-framing, see the MaxHub UC P30. Browse the full MaxHub collection at Creation Networks.

Key Features

• Sony 8 MP CMOS Sensor — Sony 1/2.5-inch sensor delivers 4K-quality imaging with accurate color reproduction and low-noise performance across varied lighting conditions.
• 12x Optical / 16x Digital Zoom — 192x combined zoom range provides precise framing from any position in mid-to-large conference rooms without degrading image quality at the optical limit.
• PoE Support — Power over Ethernet eliminates the need for a separate power run, simplifying permanent wall and ceiling installations.
• Built-in RTSP / RTMP Encoder — On-board encoding streams directly to recording servers or CDNs without additional hardware, supporting live streaming and content capture workflows.
• ONVIF Protocol Compliance — Interoperates with third-party IP camera management systems and video recorders that support the ONVIF standard.
• VISCA, Pelco-D, Pelco-P Control — Full PTZ control protocol support enables integration with Crestron, AMX, Extron, and other AV control platforms.
• IR Remote Control Included — Infrared remote allows manual PTZ operation without a control system, useful during initial setup and standalone deployments.
• Wall / Ceiling Mount Included — Installation hardware ships in the box, reducing total cost of ownership versus purchasing a compatible mount separately.
• Plug-and-Play USB — UVC-compliant USB connection for direct use with Zoom, Microsoft Teams, Google Meet, and other software conferencing platforms.

Typical Applications

• Conference rooms and boardrooms requiring 4K PTZ coverage with PoE deployment
• House of worship sanctuaries needing a high-zoom camera for stage and altar coverage
• All-hands rooms and training rooms with IP video recording requirements
• Broadcast studios and auditoriums where RTMP streaming alongside local USB output is needed
• Government spaces and commercial meeting environments with ONVIF-based camera management infrastructure

Technical Specifications

Specifications sourced from MaxHub (maxhub.com).

Frequently Asked Questions

Does the UC P25 work with Microsoft Teams and Zoom?
Yes. The UC P25 connects via USB as a UVC-compliant device and is recognized by Microsoft Teams, Zoom, Google Meet, and other major conferencing platforms without additional drivers.

Does the UC P25 include mounting hardware?
Yes. A wall/ceiling mount and IR remote control are included in the box, providing a complete installation kit without requiring separate accessory purchases.

How does PoE simplify installation?
Power over Ethernet allows a single Cat-5e or Cat-6 cable to deliver both network connectivity and power to the camera. This eliminates the need to run a separate power circuit to the camera location, which is particularly useful for ceiling and high-wall installations.

Can the UC P25 stream to the internet directly?
Yes. The built-in RTSP and RTMP encoder allows the camera to stream to recording servers, streaming platforms, or CDNs over the network without requiring an external encoder appliance.

What AV control systems are compatible?
The UC P25 supports VISCA, Pelco-D, and Pelco-P control protocols, making it compatible with Crestron, AMX, Extron, and other control systems that support these protocols via RS-232 or network control.

What warranty and support does Creation Networks provide?
For warranty service, technical support, or purchasing assistance on the MaxHub UC P25, contact Creation Networks directly.
