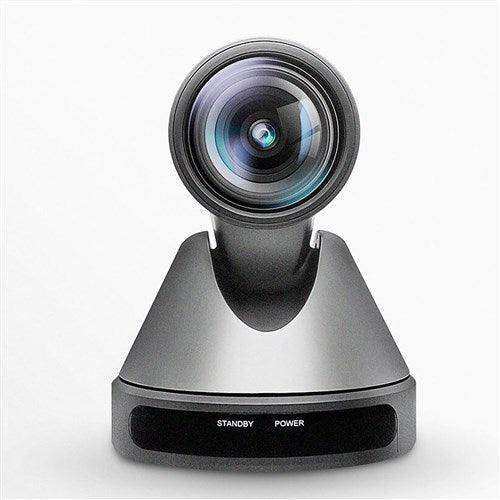

MaxHub UC P10 Professional Conference Room Series 12X PTZ Camera

Product Overview

The MaxHub UC P10 is a professional 1080p PTZ conference room camera built for mid-to-large meeting spaces that require precise remote pan-tilt-zoom control. Featuring 12x optical zoom and an 8.51 MP 1/2.5-inch CMOS sensor, this PTZ camera delivers full HD video over USB 3.0, HDMI 2.0, and 3G-SDI simultaneously, making it a versatile choice for conference room PTZ camera deployments, broadcast studios, and AV-integrated government or corporate spaces. With RS-232 and RS-485 control ports, VISCA and Pelco protocol support, and network streaming via a Gigabit Ethernet port, the UC P10 integrates into both IP-based and legacy AV control systems.

Product Description

The UC P10 is designed for rooms where a pan-tilt-zoom camera needs to serve multiple output paths at once. HDMI 2.0 and 3G-SDI outputs allow direct connection to room displays, recording equipment, or switchers, while USB 3.0 enables simultaneous use as a UVC device for software-based conferencing platforms. The Gigabit Ethernet port supports IP-based control and video streaming, and the RS-232 and RS-485 serial ports allow integration with AMX, Crestron, and other control systems using VISCA, Pelco-D, or Pelco-P protocols.

The 8.51 MP sensor paired with 12x optical zoom and 16x digital zoom gives operators the range needed to cover both intimate boardroom settings and large conference halls from a single fixed camera position. 2D and 3D digital noise reduction keeps images clean in varied lighting, and the standard 1/4-inch mount base accommodates wall, ceiling, and desktop mounting configurations.

For rooms requiring 4K resolution, consider the MaxHub UC P25 4K PTZ Camera or the MaxHub UC P30 Dual-Lens 4K PTZ Camera. See the full MaxHub camera lineup at Creation Networks.

Key Features

• 12x Optical Zoom — Covers a wide range of room depths without digital quality loss; extends to 16x digital zoom for tighter framing when needed.
• Full HD 1080p at 60 fps — USB 3.0 output supports up to 1080p @ 60 fps compressed video and 1080p uncompressed output for recording and streaming applications.
• Triple Output: USB 3.0, HDMI 2.0, 3G-SDI — Three simultaneous video outputs allow connection to software conferencing, display systems, and broadcast equipment from a single camera.
• RS-232 and RS-485 Control — Full PTZ control via VISCA, Pelco-D, and Pelco-P protocols over RS-232 (up to 30 m) and RS-485 (up to 1200 m) for long-run AV installations.
• Gigabit Ethernet — 10/100/1000 Mbps adaptive Ethernet port supports IP-based camera control and network video streaming.
• 2D and 3D Digital Noise Reduction — Dual noise reduction processing maintains image quality in low-light conference rooms and spaces with mixed lighting.
• 8.51 MP 1/2.5-Inch CMOS Sensor — Large-format sensor captures fine detail across the full zoom range, supporting crisp 1080p output even at maximum optical zoom.
• 3.5 mm Audio Line In — External audio input allows connection of a room microphone or audio DSP for complete conferencing signal flow through the camera.

Typical Applications

• Mid-to-large conference rooms requiring remote PTZ control via a control system
• Boardrooms with existing RS-232 or RS-485 AV infrastructure
• All-hands rooms and training rooms needing simultaneous USB and HDMI camera feeds
• Broadcast studios and auditoriums requiring 3G-SDI output alongside IP streaming
• Government spaces and commercial meeting spaces with Crestron or AMX control integration

Technical Specifications

Specifications sourced from MaxHub (maxhub.com).

Frequently Asked Questions

Does the UC P10 work with Microsoft Teams and Zoom?
Yes. The UC P10 connects via USB 3.0 as a UVC-compliant camera and is compatible with Microsoft Teams, Zoom, Google Meet, and other major conferencing platforms on Windows, macOS, Linux, and Android.

How is the UC P10 controlled in an integrated AV system?
The camera supports RS-232 (up to 30 m) and RS-485 (up to 1200 m) serial control using VISCA, Pelco-D, or Pelco-P protocols. It can be driven from any control system that supports these protocols, including Crestron and AMX.

Can the UC P10 output to a display and a conferencing laptop at the same time?
Yes. The USB 3.0, HDMI 2.0, and 3G-SDI outputs operate simultaneously, so the camera can feed a room display via HDMI, a recording or broadcast system via 3G-SDI, and a conferencing PC via USB — all at once.

What mounting options are available?
The UC P10 ships with a standard base suitable for tabletop or surface placement. Third-party wall and ceiling PTZ mounts with a compatible 1/4-inch thread can be used for permanent installation.

What warranty and support does Creation Networks provide?
For warranty information, technical support, or order assistance on the MaxHub UC P10, contact Creation Networks directly.
