MaxHub ND98CMA 98" 4K Commercial Display

Product Overview

The MAXHUB ND98CMA is a 98" 4K UHD commercial display — the largest in the CMA series — designed for auditoriums, all-hands rooms, large-scale digital signage, and command-and-control environments where maximum screen size is required without sacrificing commercial-grade reliability. The ADS panel delivers 500 nits at 178° wide-angle for clear legibility at the back of large rooms, and the 80-pin OPS slot enables Windows PC module integration for full on-display computing. Rated 24/7, Crestron Connected certified, and NDI certified, the ND98CMA anchors enterprise AV installations of any scale. MAXHUB Pivot cloud management and RS232/IP control make it straightforward to administer in large-fleet deployments.

Product Description

At 98", the MAXHUB ND98CMA delivers the largest panel in the CMA commercial display family, serving facilities that need genuine large-format impact: auditoriums, all-hands meeting rooms, government briefing centers, and high-visibility retail and corporate lobbies. The ADS panel at 4K UHD (3840×2160) sustains a 1200:1 native contrast ratio across 178° horizontal and vertical viewing angles, ensuring that attendees at the back of a deep room or at wide angles see accurate, vivid content. The 500-nit commercial backlight handles ambient light levels in daylit spaces. The 80-pin OPS slot (OPS62A compatible) accepts a slot-in Windows PC for on-display Microsoft Teams Rooms, Zoom, Webex, or dedicated digital signage software operation without an external computer. MAXHUB Share enables wireless BYOD screen sharing via Miracast, AirPlay, and Chromecast across up to four simultaneous devices with sub-90ms latency and picture-by-picture dual-source display. The full-function USB Type-C port provides 65W laptop charging alongside screen and network sharing. The non-glare panel treatment and conformal board coating provide the environmental durability required for continuous commercial installation. MAXHUB Pivot cloud device management supports remote content publishing, firmware updates, and health monitoring across entire display fleets from a central IT dashboard. For a smaller large-format option, see the MAXHUB ND86CMA 86". For ultra-wide conference room applications, see the MAXHUB UW105NA 105" Ultra-Wide. Browse the full MAXHUB collection at Creation Networks.

Key Features

• 98" 4K UHD ADS Panel — Largest CMA model; 3840×2160 ADS technology with 178° H/V viewing angle for commanding visibility at the back of large venues.
• 500 Nits Brightness — Commercial-grade backlight output for legibility in ambient-lit auditoriums, boardrooms, and government briefing spaces.
• OPS Slot (80-pin / OPS62A) — Built-in OPS expansion slot for Windows PC module; supports Microsoft Teams Rooms, Zoom, Webex, and digital signage applications.
• 24/7 Commercial Duty Cycle — Continuous operation rating with a minimum panel lifetime of 50,000 hours for always-on commercial deployments.
• MAXHUB Share Wireless Screen Sharing — BYOD-compatible wireless sharing with Miracast, AirPlay, and Chromecast; four simultaneous devices; PBP dual-source mode.
• Crestron Connected Certified — One-touch AV control via XiO Cloud; native Crestron AirMedia support without custom scripting.

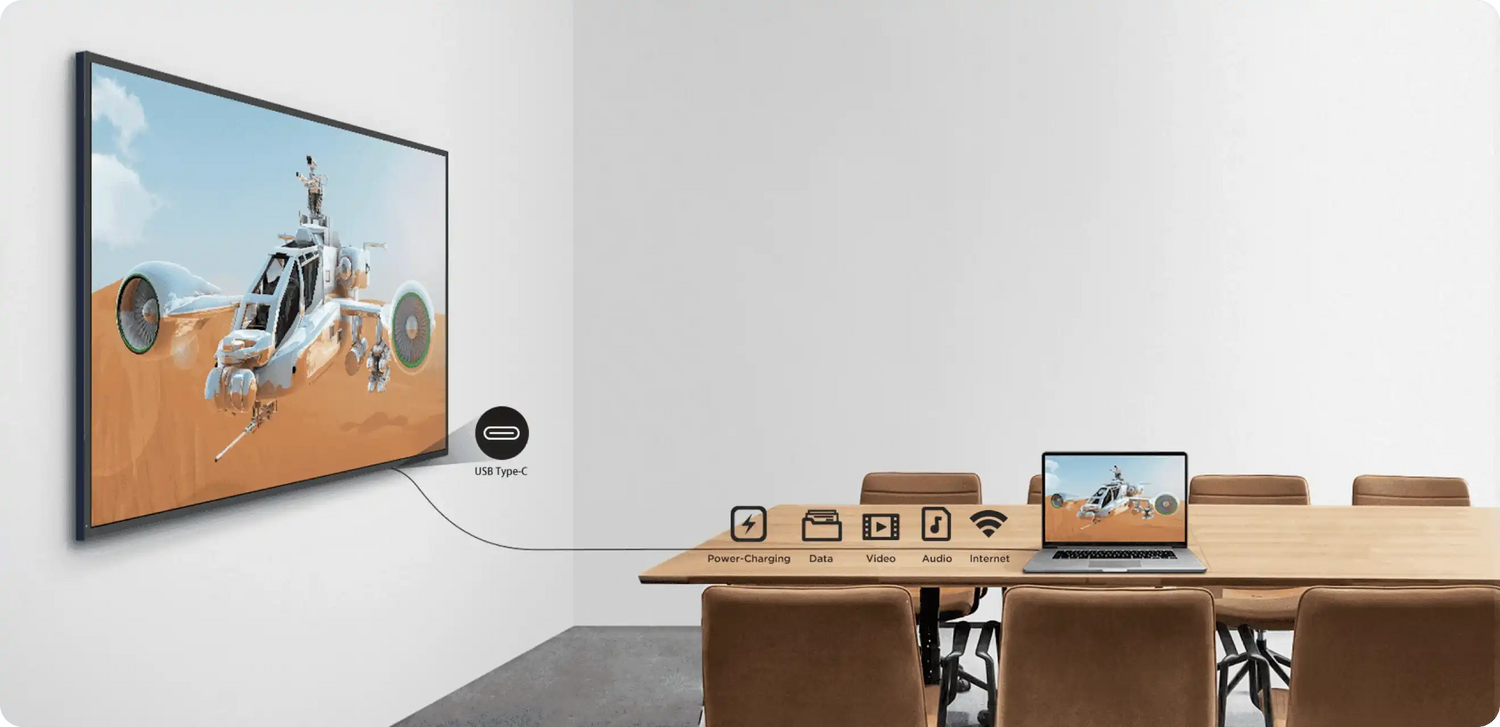

• USB Type-C (65W Power Out) — Single-cable screen share, network share, and 65W laptop charging via USB-C.
• NDI Certified — Native IP video decoding via NDI protocol for broadcast studio, education capture, and IP AV workflow integration.
• Non-Glare & Conformal Coating — Anti-reflective panel treatment and conformal board coating for commercial-grade environmental resilience.
• RS232 / IP Control — Full serial and Ethernet control integration with Crestron, Extron, Q-SYS, and other professional AV control platforms.

Typical Applications

• Auditorium
• All-hands room
• Boardroom
• Training room
• Conference room
• Government space
• House of worship
• Commercial meeting space

Technical Specifications

Specifications sourced from MaxHub (maxhub.com).

Frequently Asked Questions

What OPS module is compatible with the ND98CMA?
The ND98CMA accepts OPS62A-compatible 80-pin Windows PC modules. Contact Creation Networks to identify the correct module for your Teams Rooms or digital signage deployment.

What are the mounting requirements for a 98" commercial display of this weight?
The ND98CMA weighs 69.90 kg (154 lbs). The WIB9080A wall mount is required. Professional installation with a structural wall assessment is strongly recommended at this size. Contact Creation Networks for installation guidance.

Can the ND98CMA run Teams Rooms or Zoom natively?
Yes, with an optional OPS62A Windows PC module in the OPS slot, the display supports Microsoft Teams Rooms, Zoom, Webex, and other Windows-based conferencing or signage applications.

What wireless screen sharing does it support without an OPS module?
The built-in Android platform with Wi-Fi 6 supports MAXHUB Share, Miracast, AirPlay, and Chromecast for BYOD wireless sharing without a connected PC.

What control system integrations are available?
The ND98CMA is Crestron Connected certified (XiO Cloud) and supports RS232 and IP control for Extron, Q-SYS, and other professional AV control systems.

What warranty and support does Creation Networks provide?
Contact Creation Networks for warranty service coordination, project consulting, and volume pricing on the ND98CMA.
