Listen Technologies CLS2 – Induction Loop Driver

Product Overview

The Listen Technologies CLS2 is a wall mount perimeter induction loop driver covering up to 400m², supplied in the USA configuration complete with mains lead. It delivers more than 4.9Arms continuous with four independent inputs, including a 100V line input for taking a feed from an existing paging amplifier. Four inputs and 400m² of coverage make it the practical choice for a mid-size venue without rack space.

Product Description

Perimeter loop drivers are selected on loop area, aspect ratio and the metal loss measured during survey, not on room capacity. Two rooms of identical floor area can require different current ratings if one has a steel deck and the other does not.

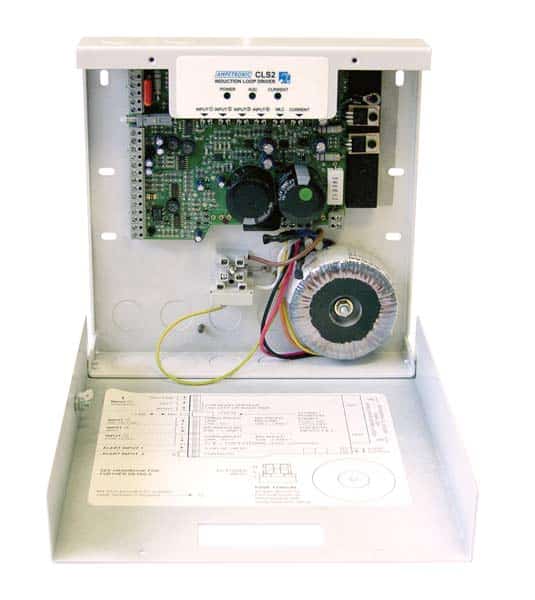

Coverage reaches 250m² at a 1:1 aspect ratio, 310m² at 2:1 and 400m² at 3:1, so loop geometry is as important as floor area when specifying. Output is more than 4.9Arms continuous at 1kHz with short term peaks above 7Arms, into loops from 0.2Ω minimum to 1.3Ω maximum impedance. Frequency response is 80Hz to 6.3kHz ±3dB. Four independent inputs cover most retrofit situations: two balanced mic/line at 10kΩ, a third balanced or unbalanced line input with 12V DC accessory power at up to 100mA, and a fourth accepting either a 100V line or a low impedance speaker feed. That last input is what allows a loop to be added to a building with an existing paging system without re-engineering the audio distribution. The chassis is 200 x 200 x 44mm at 1.8kg, wall mounted via four screws, IP20 rated and specified for -10°C to +40°C. Power draw is 30W nominal, rising to 63W at continuous full output.

Loop conductor and terminations are ordered separately: 14 AWG hearing loop cable for perimeter runs, foil-to-cable crimp lugs where copper foil tape meets cable, and PVC protective extrusion where the loop is surface run.

Commissioning is a measurement exercise against IEC 60118-4, not a listening check. Pair with a field strength meter and its signal connection cables, and use a metal loss test driver at survey stage where the structure contains significant steel.

Key Features

• Up to 400m² coverage — Covers 250m² at 1:1, 310m² at 2:1 and 400m² at 3:1 aspect ratio.
• Over 4.9Arms continuous output — Drives loops from 0.2Ω with short term peaks above 7Arms.
• Four independent inputs — Includes 100V line and low impedance speaker input for retrofit onto existing paging systems.
• 12V DC accessory power — Input 3 supplies up to 100mA for a powered microphone or accessory.
• Speech optimised AGC — Maintains consistent output across more than 36dB of dynamic range.
• Adjustable metal loss correction — Compensates for structural steel with 0 to 3dB per octave correction.
• Wall mounting — Fixes via four screws without requiring rack space.
• IP20 rated — Specified for -10°C to +40°C indoor commercial environments.

Typical Applications

• Auditorium
• House of worship
• Conference room
• Boardroom
• Government space
• Training room
• Multi-purpose room
• Commercial meeting space

Technical Specifications

Specifications sourced from the Ampetronic CLS2 product data. This part number is the USA PC version supplied with mains lead.

Frequently Asked Questions

How do I size the driver for my room?
By loop area, aspect ratio and measured metal loss, not by room capacity. A long narrow room covers more area for the same current than a square one, which is why coverage is quoted at 1:1, 2:1 and 3:1 aspect ratios.

What audio sources can feed it?
Four independent inputs: two balanced mic/line at 10kΩ, a third balanced or unbalanced line input with 12V DC accessory power, and a fourth accepting a 100V line or low impedance speaker feed from an existing paging system.

How is metal in the structure handled?
Metal loss correction adjusts the gain slope to compensate for absorption by steel in the floor or ceiling. The loss should be measured at survey with a metal loss test driver rather than estimated.

How is the installation certified?
By measuring field strength, background noise and frequency response against IEC 60118-4 with a field strength meter. A listening check does not demonstrate compliance.

Where is the unit mounted?
Wall mounted via four screws. No rack space is required, which suits retrofit into buildings with no AV rack.

What loop cable should I use?
14 AWG hearing loop cable is the common choice for perimeter runs. Copper foil tape is used where a flat profile is needed under floor coverings, joined to cable with crimp lugs.

What warranty and support apply?
Warranty duration and technical support terms are set by Listen Technologies. Contact Creation Networks for current terms, RMA handling and pre-sales hearing loop design support.
