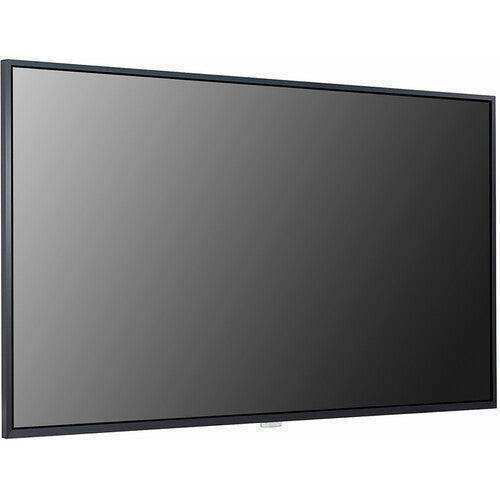

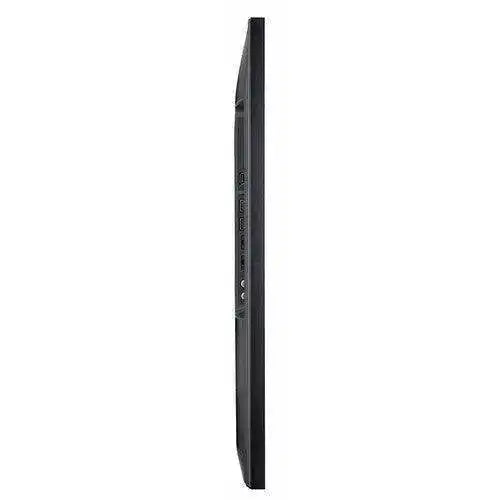

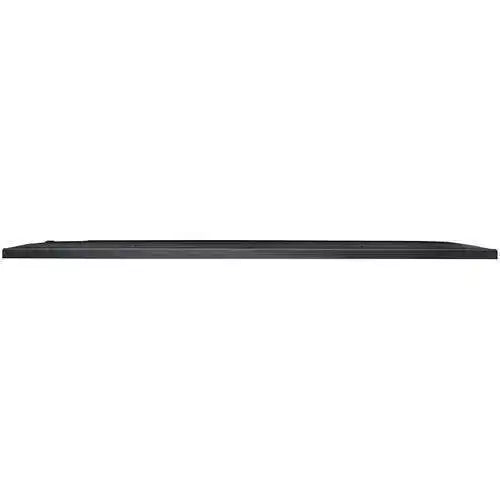

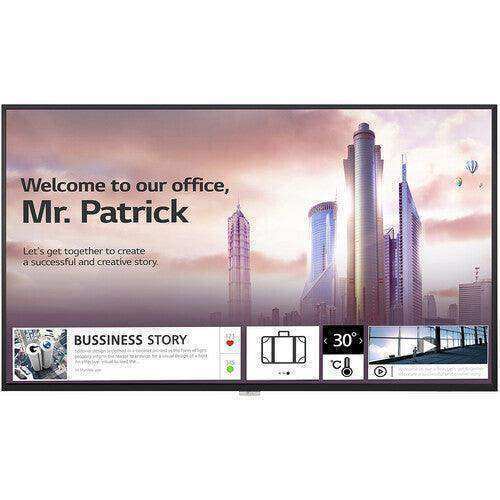

LG 86UL3J-N – 86" 4K Commercial Monitor

Product Overview

The LG 86UL3J-N is an 86-inch 4K UHD commercial monitor running the webOS smart signage platform for conference rooms and light-controlled retail display. With a 330-nit Direct-LED panel and a thin bezel, this 86-inch commercial display targets indoor signage where managed content and remote control matter. Built-in Wi-Fi, an embedded CMS, and Crestron compatibility make it a flexible large-format display for digital signage and meeting spaces.

Product Description

The 86UL3J-N pairs a native 3840 x 2160 ADS Direct-LED panel running at 120 Hz with the LG webOS system-on-chip, so the display creates and schedules content without a dedicated media player. Rated at 330 nits with a 1% haze level and a 1400:1 static contrast ratio, it is intended for conference rooms, meeting spaces, and light-controlled retail rather than high-bright window display. Three HDMI inputs with HDCP 2.2 connect laptops, codecs, and media sources, and the embedded content management system supports signage scheduling and playback over the built-in Wi-Fi 5 or wired RJ45 network. Integrators can control the display through RS-232C and LAN, with Crestron compatibility, HDMI CEC, and SNMP available for managed AV environments. An auto brightness sensor and temperature sensor support unattended operation, and LG One:Quick Share enables wireless content sharing in meeting rooms. The panel covers 80% of the DCI-P3 color space and includes a built-in speaker, and it is rated for a 16/7 duty cycle in landscape orientation. For a brighter signage-grade alternative, compare the LG 86UH5F-H signage display.

Key Features

• 86-inch 4K UHD Direct-LED Panel — The native 3840 x 2160 ADS Direct-LED panel runs at 120 Hz for clear signage and presentation content.
• webOS SoC with Embedded CMS — The built-in webOS system-on-chip and content management system schedule and play content without an external media player.
• Built-In Wi-Fi 5 and Ethernet — Wi-Fi 5 (802.11ac) and RJ45 networking provide flexible connectivity for content delivery and management.
• HDMI with HDCP 2.2 — Three HDMI inputs with HDCP 2.2 connect protected content sources such as laptops and conferencing codecs.
• One:Quick Share — LG One:Quick Share enables wireless screen sharing for meeting-room collaboration.
• Sensor Support — Integrated auto brightness and temperature sensors support unattended, condition-aware operation.
• Managed Control — RS-232C, LAN, Crestron compatibility, HDMI CEC, and SNMP allow integration into managed AV systems.
• 80% DCI-P3 Coverage — Wide color coverage supports accurate, vivid signage and branded content.

Typical Applications

• Conference room — One:Quick Share, HDMI HDCP 2.2, and Crestron control suit collaborative meeting spaces.
• Commercial meeting space — webOS scheduling and embedded CMS fit shared display environments.
• Boardroom — The 86-inch panel and wide color coverage support executive presentation.
• Training room — Wireless sharing and network control support instructional content.
• Multi-purpose room — Landscape signage operation fits rooms with rotating uses in light-controlled conditions.

Technical Specifications

Frequently Asked Questions

Is the 86UL3J-N bright enough for window-facing signage?
No. At 330 nits it is designed for conference rooms, meeting spaces, and light-controlled retail rather than direct window or high-ambient placement.

Does it require a separate media player?
No. The webOS system-on-chip and embedded CMS handle content scheduling and playback on the display itself.

How does it support wireless presentation?
LG One:Quick Share and built-in Wi-Fi 5 enable wireless screen sharing in meeting rooms.

What control protocols are supported for AV integration?
The display supports RS-232C, LAN, Crestron compatibility, HDMI CEC, and SNMP for managed AV systems.

Can it run continuously?
It is rated for a 16/7 duty cycle in landscape orientation, suiting daytime-into-evening commercial use.
