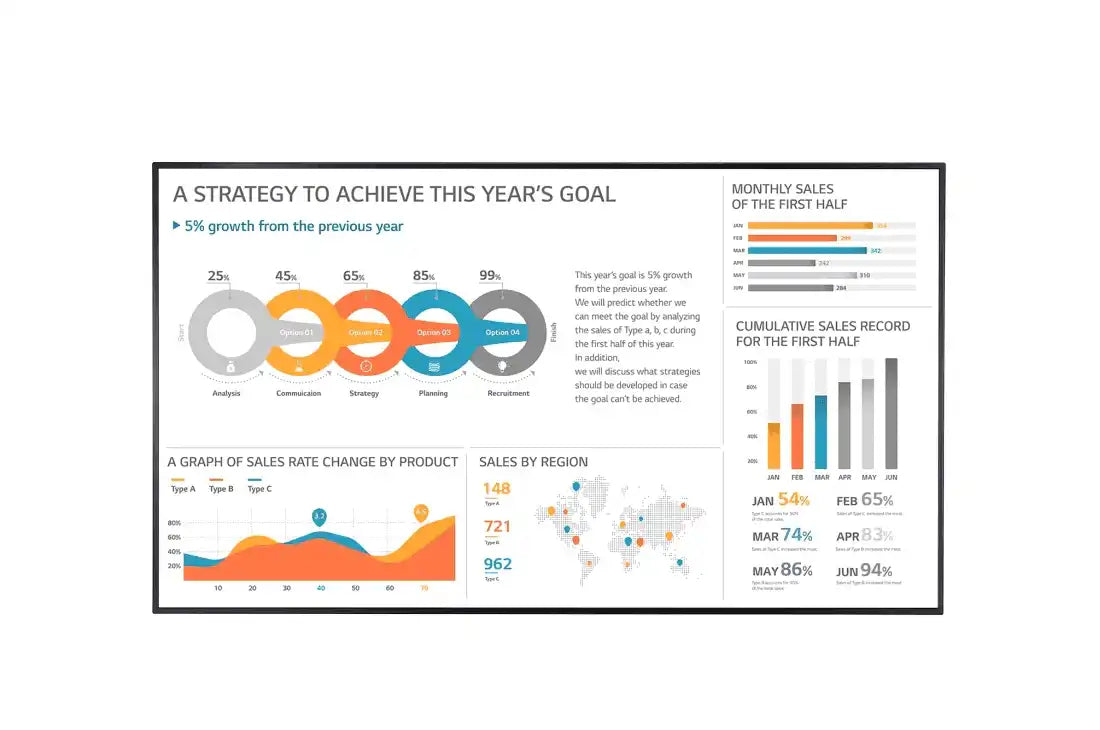

LG 86" 3840 x 2160 UHD LED Backlit LCD Large Format Monitor - 86UH5F-H

Save 25%
LG Electronics SKU: 86UH5F-H
No reviews

Sale price$5,250.00 Regular price$7,000.00


Conduct productive meetings or advertise your business or product with the LG UH5F-H 86" Class 4K UHD Digital Signage & Conference Room Smart IPS LED Display. The onboard webOS platform provides a variety of tools to meet your signage and communication needs. The display features a 4K UHD native resolution for playback of compatible media in enhanced detail, and its maximum brightness level of 500 nits helps improve visibility in high-brightness environments, such as a retail store.

The UH5F-H features a removable logo to help keep your clients' focus on your content instead of the chassis. Its IP5X dust-resistance rating allows for installation in places where regular cleaning is difficult. It can be controlled via various control protocols, including Crestron, via RS-232C, LAN, and the included remote control.
Clear View with Non-Glare Coating
Viewers can be distracted by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.
4K UHD Resolution
With resolution that is four times that of Full HD, Ultra HD makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle enabled by LG's IPS panel provides clear content without distortion.
High Performance with webOS
The UH5F-H series has a built-in quad-core system-on-chip (SoC) that can execute several tasks at once while providing smooth content playback without the need for a media player. Utilizing the SoC, LG's webOS smart signage platform has a convenient graphical user interface and simple app development tools.
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc., via its USB port. That means there is no cost to purchase or maintain additional software or media players for creating value-added solutions.
Compatible with A/V Control Systems
The UH5F-H series has been certified Crestron Connected for high compatibility with professional A/V controls to achieve seamless integration and network-based control, boosting business management efficiency.
Compatible with Cisco Video Conference Systems
The UH5F-H is compatible with Cisco conferencing systems that offer powerful HDMI-based control for a smarter video conference experience that avoids wasted time setting up the picture or input settings.
Real Time Monitoring & Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UH5F-H series displays in different locations in real time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Multiscreen Feature with PBP & PIP
PBP (picture-by-picture) features multiple screens in a single display with up to four input sources while PIP (picture-in-picture) supports playing both a main screen and a sub-screen at the same time with various layouts. This provides great flexibility to allocate space for each content source.
Wireless Access Point
The UH5F-H series operates as a virtual router that can be used as a wireless access point for mobile devices.
Optional LG ConnectedCare Maintenance Service
Maintenance is easier and faster with the optional LG ConnectedCare service, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

  • 4K UHD (3840 x 2160) Native Resolution
  • Up to 500 nits of Brightness
  • DisplayPort, DVI-D, 3x HDMI Inputs
  • Built-In Wi-Fi & Ethernet Connectivity
  • webOS 4.0 Smart Platform
  • OPS Slot
  • Portrait and Landscape Orientation
  • IP5X Dust-Resistant Rating
  • DisplayPort Cable & IR Remote Included


General Information
Manufacturer LG Electronics
Manufacturer Part Number 86UH5F-H
Manufacturer Website Address http://www.lg.com/us
Brand Name LG
Product Series UH5F-H
Product Model 86UH5F-H
Product Name 86UH5F-H Digital Signage Display
Product Type Digital Signage Display
Technical Information
Bezel Width 0.56" Even
Display & Graphics
Screen Size 86"
Display Screen Type LCD
Display Resolution 3840 x 2160
Backlight Technology LED
Scan Format 2160p
Dynamic Contrast Ratio 1,000,000:1
Color Depth 10-bit
Brightness 500 Nit
Color Gamut 72% NTSC
Network & Communication
Ethernet Yes
Wireless LAN Yes
Serial Yes
Number of USB 2.0 Ports 2
Number of HDMI Inputs 3
Number of DisplayPorts 1
Operating System WebOS
Physical Characteristics
Color Black
VESA Mount Standard 600 x 400
Energy Star Yes
Item Details
Model Number 86UH5F-H
Brand LG
Category Pro Displays/LED Monitors
Color Black
UPS Shippable N
Shipping Weight 159.8
UPC Code 719192642676
Country of Origin KR
