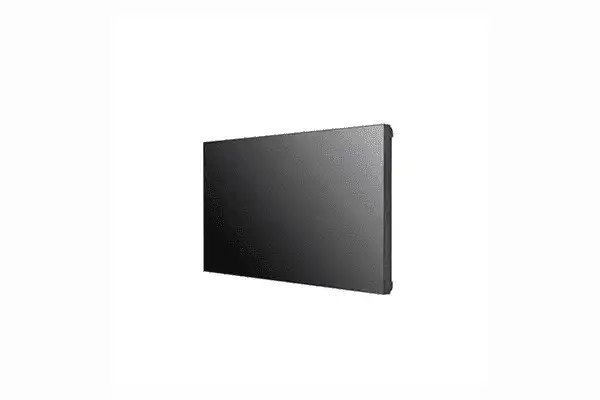

LG 55VM5J-H – 55-inch FHD Slim Bezel Video Wall

Product Overview

The LG 55VM5J-H is a 55-inch FHD slim bezel video wall display built for continuous commercial deployment. Engineered as a tiling unit for large-format arrays, it pairs a 500-nit IPS panel with a 1.74mm panel-to-panel bezel to keep content legible across a multi-screen video wall. An integrated SoC running the webOS smart signage platform plays content without an external media player, which simplifies integration of this narrow bezel LCD video wall in conference room, lobby, and digital signage applications.

Product Description

The 55VM5J-H is designed for integrators building scalable FHD commercial video wall arrays. Its IPS panel holds color accuracy across a wide viewing angle, with a 40-degree half-luminance angle that keeps images consistent when displays are mounted above eye level. An image gap reduction algorithm compensates for content crossing bezel boundaries, and color temperature adjusts in 100K increments by remote for fast on-site tuning. The built-in webOS SoC supports HTML5 web apps and an SDK, giving system integrators a direct path to deploy and manage content on this webOS digital signage display. IP5x dust-proof certification and an EMC Class B rating support 24/7 runtime in commercial meeting space and public environments. Comparable LG video walls include the 55VL5F-A and the even-bezel 55VSM5J-H.

Key Features

• 1.74mm Slim Bezel — The panel-to-panel bezel of 1.74mm minimizes the visible grid line between tiles so multi-screen content reads as a single large image.
• 500-nit IPS Panel — The 500-nit typical brightness and IPS technology hold color and contrast across wide viewing angles, which matters when displays sit above eye level.
• Integrated webOS SoC — A built-in system-on-chip running webOS plays content directly, removing the need for an external media player in most deployments.
• Image Gap Reduction — An onboard algorithm adjusts objects at bezel boundaries to reduce visual breaks when video spans multiple panels.
• 24/7 Commercial Rating — The panel is rated for continuous operation, supporting always-on digital signage and information walls.
• Full Interface Set — HDMI, DisplayPort, DVI-D, USB, RS232C, RJ45, audio, and IR connections support daisy-chaining and centralized control in a rack-mount AV system.
• IP5x Dust Protection — IP5x dust-proof certification reduces performance degradation from particulate ingress in high-traffic commercial settings.

Typical Applications

• Conference room
• Commercial meeting space
• Boardroom
• All-hands room
• Broadcast studio
• Auditorium

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How many 55VM5J-H units can be tiled in one video wall?
The display supports large tiled arrays; the practical limit depends on your controller, signal distribution, and mounting structure. For arrays beyond a single source output, plan for a video wall processor or daisy-chained DisplayPort/HDMI loop-through.

Does it require an external media player?
No. The built-in webOS SoC plays HTML5 and standard signage content directly, though many integrators still pair it with a central CMS for scheduling across multiple walls.

What mounting hardware is recommended?
Use a video-wall-specific mount with micro-adjustment for leveling and alignment across tiles. Pull-out or pop-out mounts are preferred for servicing inner panels in larger arrays.

What warranty and support apply?
LG commercial displays carry a commercial warranty distinct from consumer TVs. Confirm current coverage terms with Creation Networks before specifying for a project.
