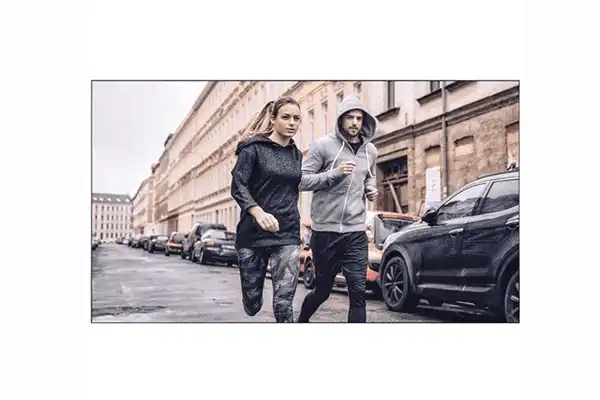

LG 55VL5F-A – 55-inch FHD Ultra-Narrow Bezel Video Wall
LG 55VL5F-A – 55-inch FHD Ultra-Narrow Bezel Video Wall is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
LG 55VL5F-A – 55-inch FHD Ultra-Narrow Bezel Video Wall
Product Overview
The LG 55VL5F-A is a 55-inch FHD video wall display with a 3.5mm ultra-narrow bezel, built for commercial digital signage installations. Its IPS panel and 500-nit brightness deliver consistent images across a tiled array, making this ultra-narrow bezel video wall a practical building block for lobbies, retail, and corporate environments. The display is engineered for integration into multi-screen walls where uniform color and minimal seam interference are required.
Product Description
The 55VL5F-A is aimed at integrators specifying an FHD commercial video wall where install cost and reliability matter. The 3.5mm bezel-to-bezel design keeps the grid line modest on larger arrays, and an image gap reduction algorithm adjusts objects crossing panel boundaries during video playback. LG IPS panel technology maintains color from wide angles, which is important when a video wall is mounted above eye level in a commercial meeting space or public area. A commercial-grade menu structure and four-way navigation remote streamline on-site setup, while color temperature adjusts in 100K increments for matching panels across the wall. Connectivity covers dual HDMI, DVI, USB, RS232C serial, and RJ45 Ethernet for centralized control. For tighter tiling or an integrated smart platform, compare the 55VM5J-H and the even-bezel 55VSM5J-H.
Key Features
- 3.5mm Ultra-Narrow Bezel — The 3.5mm bezel-to-bezel design reduces the visible seam between tiles to present multi-screen content as a continuous image.
- 500-nit IPS Panel — The IPS panel and 500-nit brightness keep color and contrast stable across wide viewing angles for above-eye-level mounting.
- Image Gap Reduction — An onboard algorithm compensates for objects crossing bezel boundaries to reduce visual breaks during video playback.
- Dual HDMI Inputs — Two HDMI inputs plus DVI support flexible source routing in a rack-mount AV system.
- Commercial Control Interfaces — RS232C serial and RJ45 Ethernet allow centralized management and integration with room control systems.
- Commercial-Grade GUI — An optimized menu structure with a four-way navigation remote speeds deployment and ongoing display management.
Typical Applications
- Conference room
- Commercial meeting space
- Boardroom
- Multi-purpose room
- Auditorium
Technical Specifications
| Screen Size | 55-inch class |
| Panel Type | IPS LCD, LED backlit |
| Resolution | 1920 x 1080 (FHD), 1080p |
| Brightness | 500 nit |
| Bezel | 3.5mm bezel-to-bezel |
| Video Wall Compatible | Yes |
| HDMI Inputs | 2 |
| Interfaces | HDMI x2, DVI, USB, RS232C, RJ45 Ethernet |
| Input Voltage | 120 V AC / 230 V AC |
Competitor Comparison
| Criterion | LG 55VL5F-A | Samsung VM55B-E | Samsung VH55R-R |
| Bezel (panel-to-panel) | 3.5mm, balanced cost-to-seam | 3.5mm class, comparable seam | 1.7mm class, tighter seam at higher cost |
| Brightness | 500 nit, indoor signage | 500 nit class | 500 nit class |
| Smart platform | External source/player driven | Tizen with MagicINFO | Tizen with MagicINFO |
| Inputs | Dual HDMI plus DVI for flexible routing | HDMI/DP loop-through | HDMI/DP loop-through |
| Control | RS232C and RJ45 for room control | RS232/RJ45 | RS232/RJ45 |
| Best fit | Cost-aware FHD walls with standard sources | Tizen-standardized estates | Premium walls needing minimal seam |
Frequently Asked Questions
Is the 55VL5F-A suitable for 2x2 and larger arrays?
Yes. It is video-wall compatible and commonly deployed in 2x2, 3x3, and larger configurations. Source distribution and a video wall processor should be sized to the array.
Does it include a built-in media player?
This model is primarily driven by an external source or signage player via its HDMI/DVI inputs, which suits installations standardizing on a separate CMS or player appliance.
How is it controlled across multiple panels?
RS232C serial and RJ45 Ethernet allow centralized power, input, and settings control, and integrate with common AV control systems.
What warranty applies for commercial use?
LG commercial video walls carry a commercial warranty separate from consumer products. Confirm current terms and 24/7 usage coverage with Creation Networks.
