LEA Professional CS124D – 4-Channel 120W Dante Networked Amplifier
What is the LEA Professional CS124D?

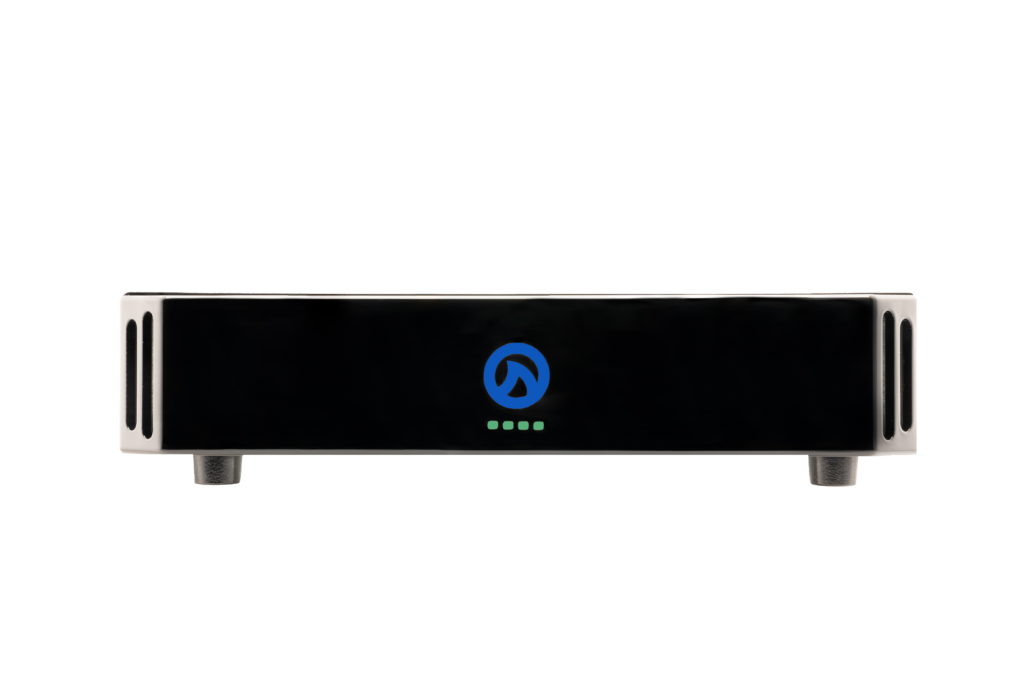

The LEA Professional CS124D is a 4 x 120W Dante amplifier from LEA's Connect Series Half-Rack. It's a compact half-rack amplifier that fits behind a display, in a credenza, or two side by side in one rack space. Each channel drives low-impedance speakers or 70V/100V lines, set per channel.
What is included?
- LEA Professional CS124D amplifier
- Power cord
How does the LEA Professional CS124D work?
The CS124D delivers 4 x 120W (480W total) from a Class D output stage. LEA's Smart Power Bridge doubles one channel's power without giving up a channel. Onboard 96kHz DSP handles routing, crossovers, EQ, delay, and limiting, LEA speaker tunings load in a click, and Dante carries audio over your network.
Set it up from any browser, then watch load, faults, and events from LEA Cloud. Drivers cover Crestron, Extron, Q-SYS and more. Pair it with a Connect Series Glass wall controller or browse all LEA Professional gear.
What are the key features of the LEA Professional CS124D?
- 4 x 120W Class D output
- Lo-Z or 70V/100V per channel
- 96kHz DSP with speaker tunings
- Dante and AES67
- Half-rack size
- 6-year warranty
Where is the LEA Professional CS124D typically used?
- Conference rooms and training rooms
- Restaurants, retail, and hospitality
- Classrooms
- 70V background music and paging
Technical Specifications
| Model | CS124D |
| Series | Connect Series Half-Rack (Dante) |
| Channels | 4 |
| Power per channel | 120W @ 4Ω, 8Ω, 70V and 100V |
| Inputs | Balanced analog plus Dante/AES67 |
| DSP | 96kHz DSP: routing, crossovers, EQ, delay, limiting |
| Network | Built-in Wi-Fi hotspot, Wi-Fi client, or Ethernet |
| Management | Web UI, SharkWare, LEA Cloud, third-party API |
| Warranty | 6 years |
Frequently Asked Questions
Can one amplifier run 70V and 8-ohm speakers?
Yes. Each channel is set to Lo-Z or 70V/100V on its own.
What does the D version add?
Dante and AES67 networked audio on top of the CS124.
What's the warranty?
6 years from LEA Professional.
Can Creation Networks install it?
Yes. Call 888-230-3661 or email sales@creationnetworks.net.
