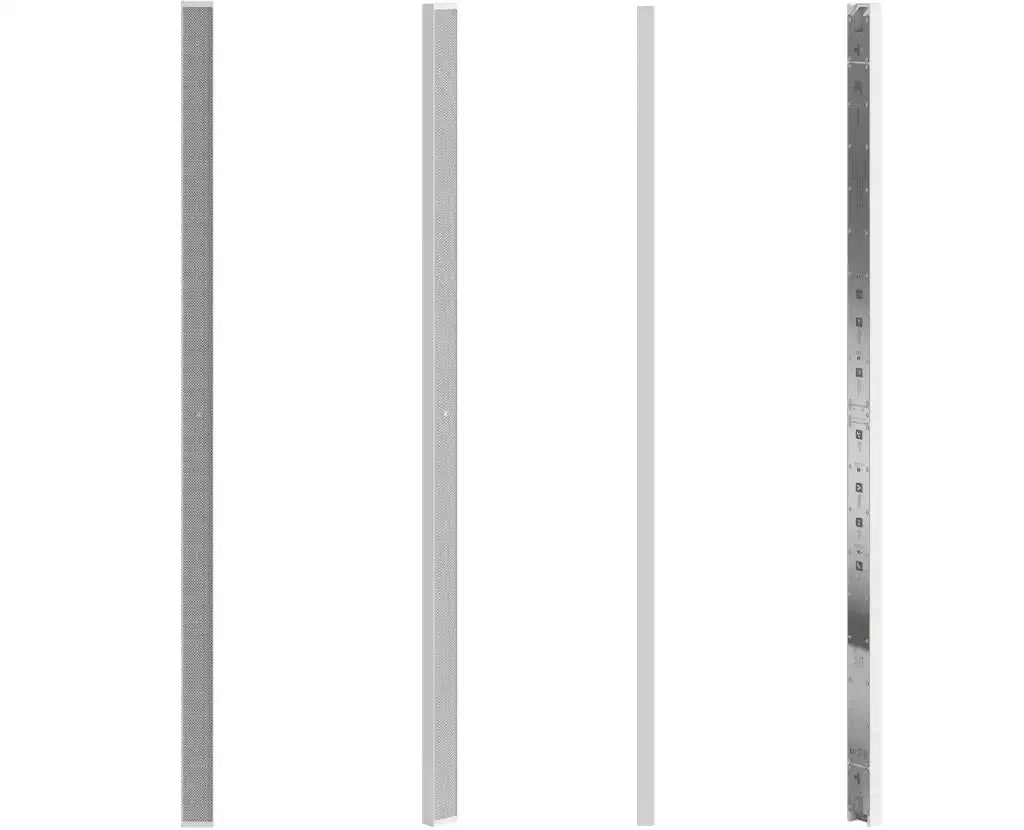

K-Array Vyper KV102W II – Ultra-Flat 100cm Line Array Element (White)

Product Overview

The K-Array Vyper KV102W II is a white ultra-flat 100cm line array speaker designed for discreet installed audio on light-colored walls in boardrooms, conference rooms, and architectural commercial spaces. Only 22 mm deep, this passive aluminum line array element houses sixteen 1" neodymium magnet drivers that deliver true line source performance — phase coherence, low distortion, and 120 dB peak SPL — while visually receding into white interiors. For integrators specifying low-profile commercial speakers that match modern light finishes, the KV102W II is the white version of the surface-mount Vyper KV102 II.

Product Description

The KV102W II shares the frameless precision-extruded aluminum chassis of the Vyper family, finished in white and designed for clean, bracketless application on any flat surface — ideal where the speaker must sit against drywall, acoustic panels, or millwork without drawing the eye. Its sixteen closely spaced 1" neodymium cone drivers, arranged with K-Array's Pure Array Technology, produce the controlled 7-degree vertical by 140-degree horizontal coverage of a true line array, directing sound at the audience and away from reflective ceilings and floors for consistent speech intelligibility.

Selectable 8-ohm or 32-ohm impedance lets system designers parallel up to eight elements at 32 ohms on one 4-ohm amplifier channel, eliminating 70V transformer lines in wide distributed installations while preserving low-impedance fidelity. Wiring terminates on the included 2-pin Euroblock connector, and dedicated DSP presets are available when driven by K-Array electronics such as the Prisma KPRA02+ matrix processing platform. The same element is offered in black as the KV102 II, and a white in-wall recessed version is available as the KV102RW II. Explore the full K-Array collection for matched subwoofers and amplification.

Key Features

• White Architectural Finish — The factory white finish blends with light walls, ceilings, and millwork so the audio system stays visually subordinate to the interior design.
• Ultra-Flat 22 mm Profile — The 40 x 1000 x 22 mm frameless aluminum chassis mounts nearly flush on any flat surface for clean bracketless installation.
• Sixteen 1" Neodymium Drivers — Closely spaced neodymium magnet cone transducers form a true line source with phase coherence and low distortion at any listening distance.
• Pure Array Technology Coverage — The 7-degree vertical by 140-degree horizontal pattern keeps energy on the audience and off reflective surfaces, protecting intelligibility in live rooms.
• Selectable 8/32-Ohm Impedance — At 32 ohms, up to eight elements share a single 4-ohm amplifier channel, replacing 70V distributed designs without transformers.
• 120 dB Peak SPL, 300 W Rated — High output per element means fewer speakers to cover large meeting and assembly spaces.
• 150 Hz – 18 kHz Response — Full vocal-band reproduction (-6 dB) stands alone for speech and pairs with K-Array Truffle or Rumble subwoofers for music.
• Lightweight at 1.8 kg — Mounts to walls and millwork without structural reinforcement, with white K-WALL2-series brackets available for angled aiming.

Typical Applications

• Boardrooms and conference rooms with white or light interior finishes
• Commercial meeting spaces and huddle rooms flanking displays on light walls
• Houses of worship requiring discreet reinforcement against light architectural surfaces
• Government spaces and council chambers specifying low-profile installed sound
• Auditoriums and all-hands rooms with distributed line array coverage
• Multi-purpose rooms and training rooms built on low-impedance zoned audio

Technical Specifications

Frequently Asked Questions

Is the KV102W II identical to the KV102 II except for color?
Yes. The KV102W II is the white-finish version of the surface-mount Vyper KV102 II; acoustic performance, dimensions, impedance options, and power handling are the same.

What amplifier should drive it?
Any low-impedance installation amplifier rated for the selected 8-ohm or 32-ohm load works. K-Array electronics such as the Prisma KPRA02+ include dedicated Vyper presets for tuning and driver protection.

How many elements can share one amplifier channel?
Set to 32 ohms, up to eight KV102 II-series elements parallel on a single 4-ohm channel, allowing wide distributed coverage without 70V transformer lines.

Are white mounting brackets available?
Yes. K-Array offers white versions of its K-WALL2-series wall and ceiling brackets so hardware matches the speaker and the wall finish.

Does it need a subwoofer?
Not for speech reinforcement. For program music, K-Array recommends pairing the Vyper line with its Truffle or Rumble subwoofers for full-range response.

What warranty applies?
K-Array loudspeakers carry the manufacturer's 5-year warranty policy, with pre-sale design help and post-sale support available from Creation Networks.
